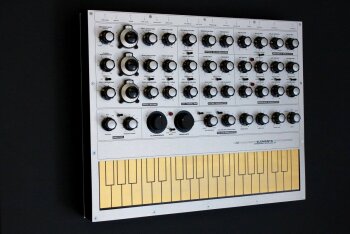

MacBeth Studio Systems opened at Analog Haven the pre-order for its new Elements synth, which should be available in June.

Here are the main features of the new Elements synth:

  • 3 wide ranging voltage controlled oscillators and 1 vc low frequency oscillator/audio oscillator.

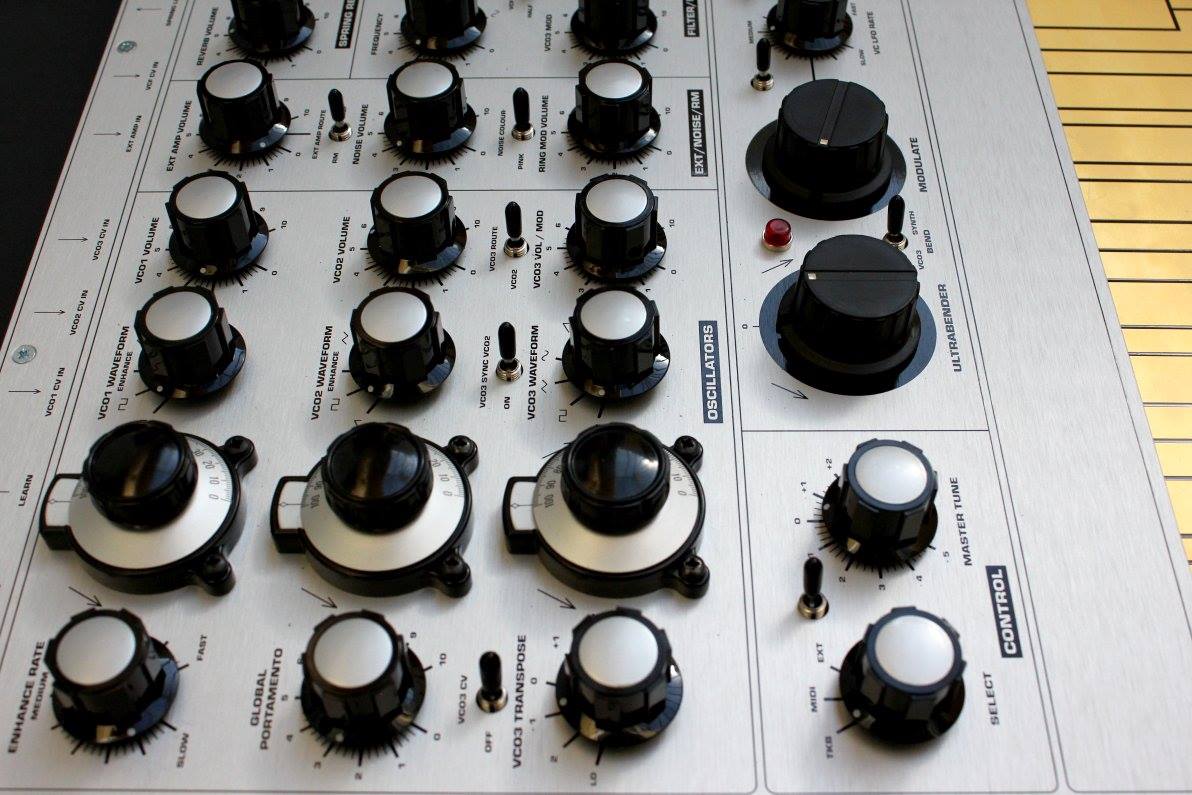

  • VCO1: 5 waveforms: ramp, square, enhance, triangle, sine. Multi turn vernier dial tuning frequency: 1 hz ~ 20khz and beyond. Volume output direct to VCF.
  • VCO2: 5 waveforms: ramp, square, enhance, triangle, sine. Multi turn vernier dial tuning frequency: 1 hz ~ 20khz and beyond. Volume output direct to VCF. Shared enhance rate between VCO1 and VCO2, variable from slow ~ fast.
  • VCO3: 6 waveforms: ramp, square,triangle, sine, saw, s&h; multi turn vernier dial tuning frequency: 0.01 hz ~ 20khz and beyond. transpose switch: lo, –2, –1, 0, +1, +2. CV on/off switch. VCO3 hard synchronization to VCO2. Volume output direct to VCF or cross modulate VCO2.

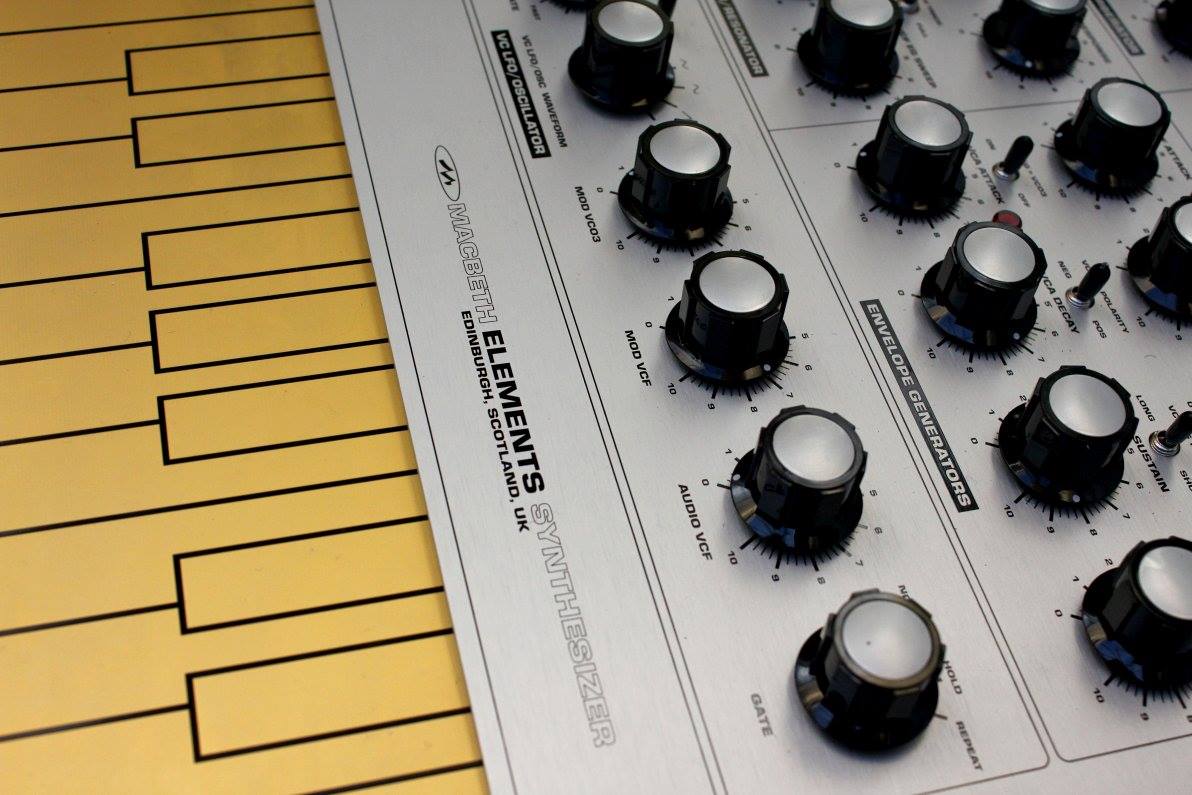

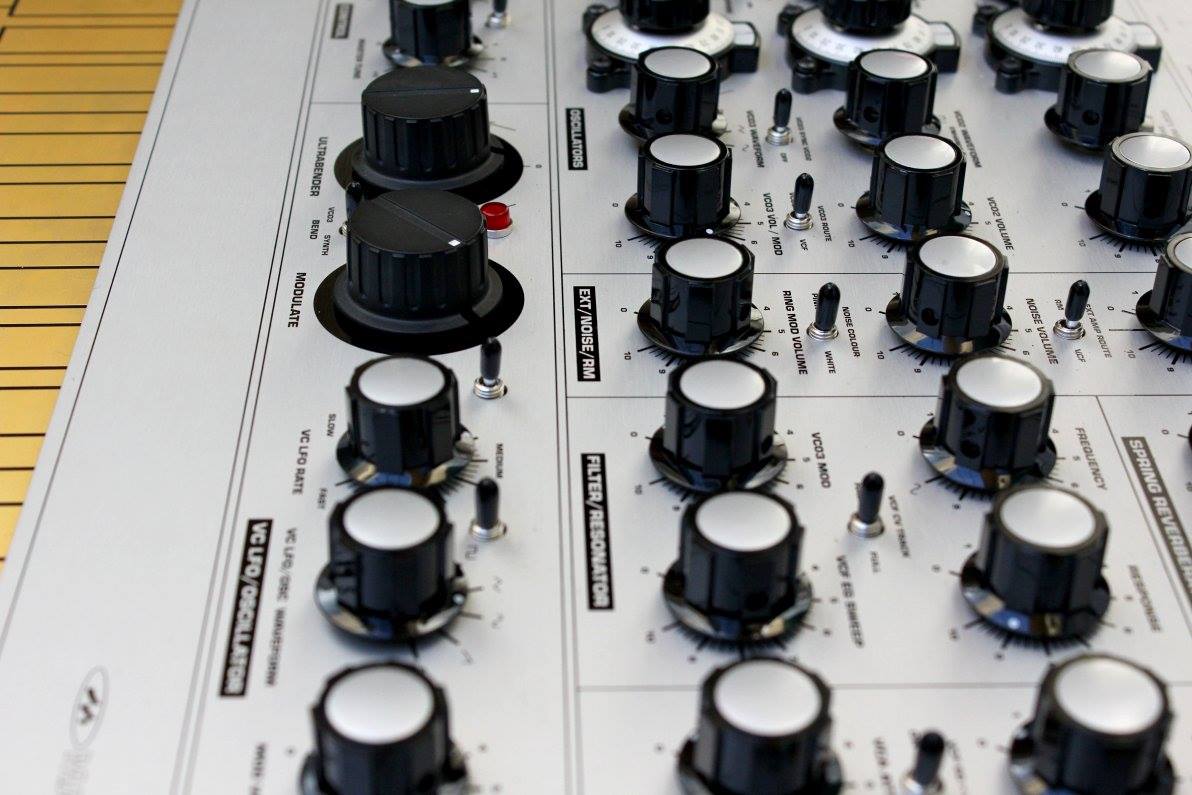

  • Temperature compensated VC low frequency oscillator/oscillator (VCO4): 6 waveforms: ramp, square,triangle, sine, saw, s&h. frequency rate variable from slow ~ fast- approx: 0.01 hz ~ 20khz and beyond. cv on/off switch. fast ~ slow switch. s&h selector switch: noise source or VCO3 source. mod VCO3 potentiometer, mod VCF potentiometer, audio to VCF potentiometer, large global modulation potentiometer.
  • Noise generator: white noise, pink noise. volume output direct to VCF and S&H circuits.
  • External audio input amplifier: volume output to VCF or ring modulator.
  • Ring modulator: mc1469 based double balanced modulator. inputs: VCO1 sine, VCO2 sine or external audio input amplifier. volume output direct to VCF.
  • Voltage controlled filter/ resonator (VCF): self oscillating, 5 'rung’ diode ladder type approximating 32db/octave roll off slope. self correcting volume gain at high 'Q’ (response). CV/keyboard tracking switch: off (centre) half, full. VCO3 modulation potentiometer, VCF Envelope Generator sweep potentiometer. pure sine output at maximum resonance/response. targeted to ca3080 based voltage controlled amplifier (VCA)
  • VCF envelope generator: full attack, decay, sustain, release with long ~ short timing switch. VCF eg polarity switch: positive or negative going slopes. VCF Envelope Generator > VCO3 sweep switch.
  • VCA envelope generator: full attack, decay, sustain, release with long ~ short timing switch.
  • Tape delay simulator: input direct from VCA. delay time potentiometer, delay modulation potentiometer, delay modulation control switch: VC LFO ~ keyboard CV, delay repeats potentiometer, delay mix potentiometer. final output to spring reverberator circuit.
  • Spring reverberator: external spring line tank connect via ¼" jack socket, standard tank supplied: compact Belton/Accutronics bmn3bb2c1 for wall/under desk mounting. other tanks/accessories can be used.
  • Keyboard: touch capacitive gold plated articulator allows 4 octave F ~ F chromatic span. Control source via switch can be touch keyboard, MIDI or external CV/gate. Keyboard can send 1V/octave and +12V gate signals from outputs on the rear of the unit to suitable ancillary equipment, ie, external VC synthesizer/VC synthesizer modules.
  • Other controls: ultrabender: dynamic pitch bend + – 2 octaves either side with dead band in the centre of play. Master tune- + – ½ octave either side. global portamento- applies to all CV controls.

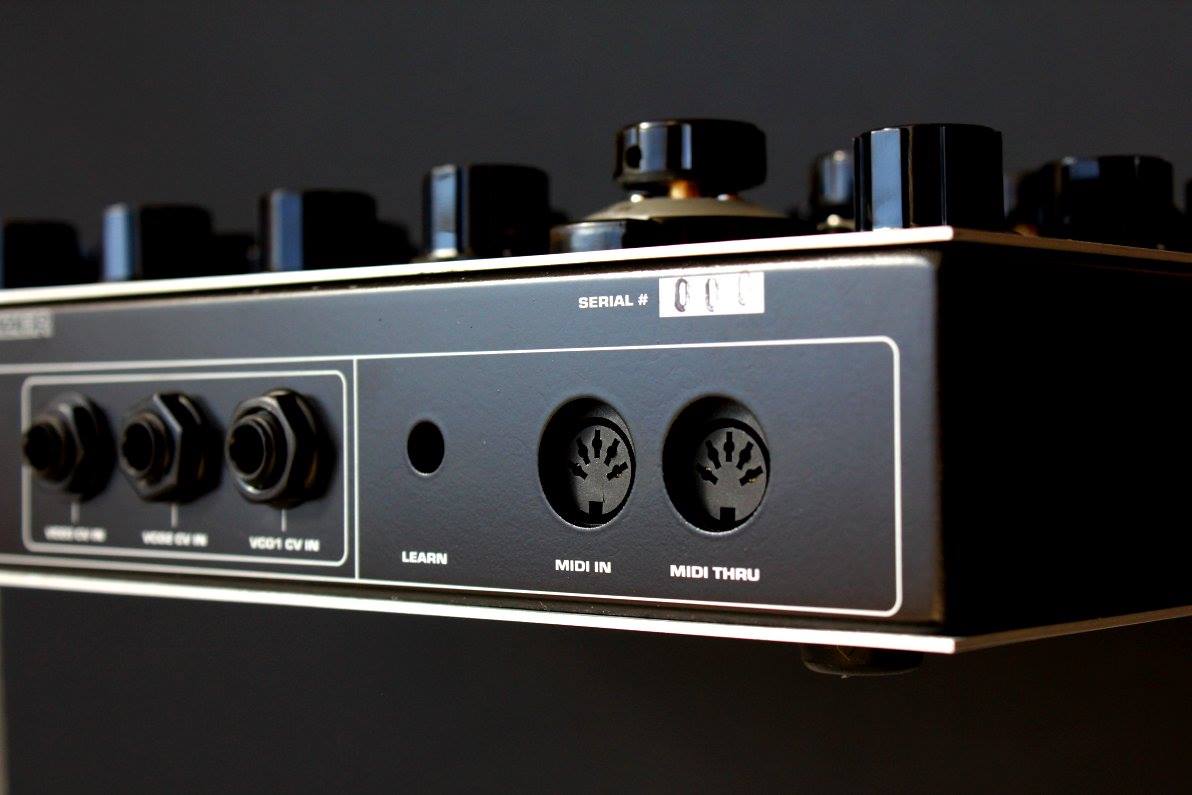

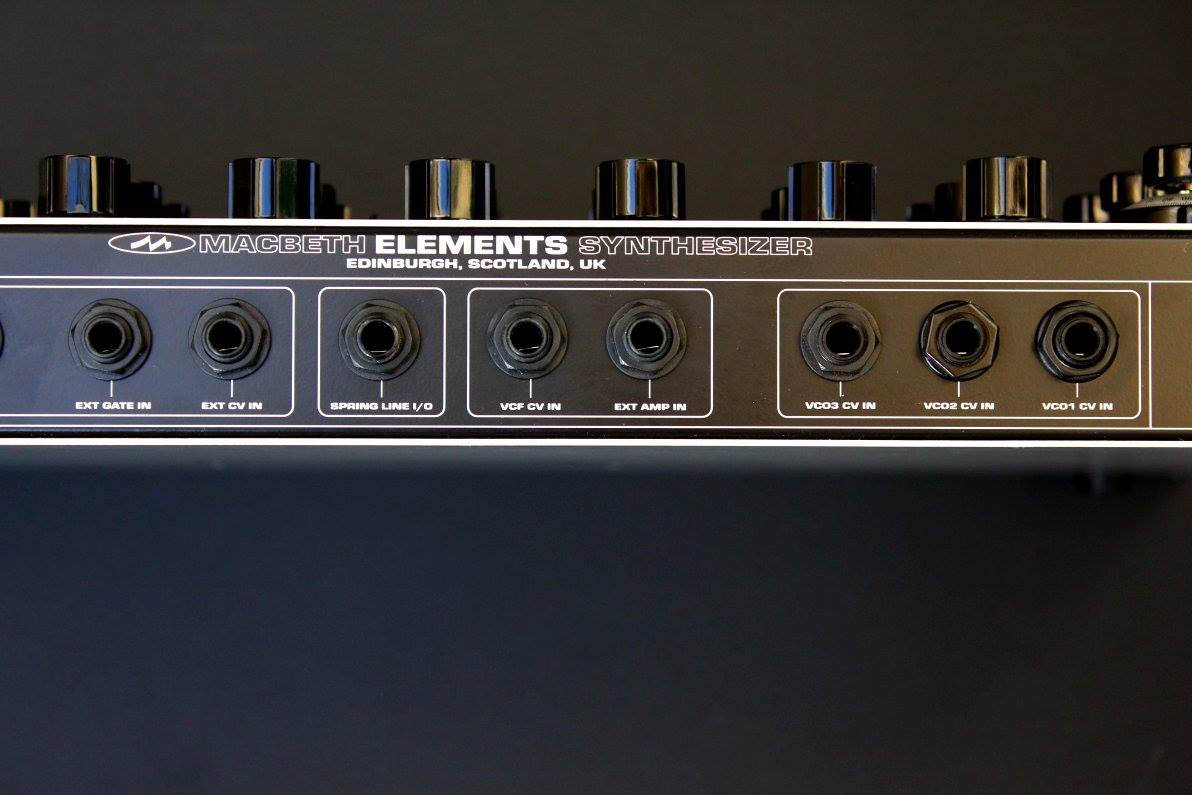

  • Rear section interface: MIDI In/Thru, CV in and out, Gate in and out, VCO1 CV in, VCO2 VC in, VCO 3 CV in, VCF CV in, external audio in, synth out, power in.
  • Dimensions: 19.2" width, 15.1" depth, 2.0" height. with detachable rubber feet: 2.15" height.

Elements is currently available for pre-order for $6 4999 at www.analoguehaven.com.
