- Manufacturer: Advanced Audio Microphones
- Model: DM20
- Category: Dynamic Microphones
- Added in our database on: 11/16/2013

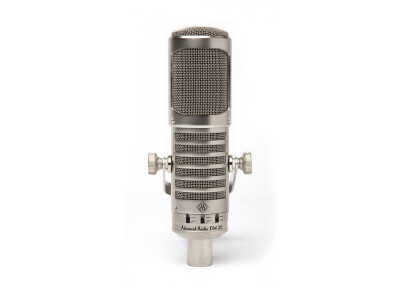

Advanced Audio DM20
The DM20 is a super cardioid dynamic microphone, based on the original RE20. The DM20 produces a vocal presence peak which can enhance the voice. It also has an internal windscreen and does not require a shock mount. It features two bass roll off switches and a high frequency filter.
Capsule
The Advanced Audio DM20 features a high efficiency capsule with a 200ohm voice coil. The super cardioid pattern is optimal for rejection of room sound.
Circuit
The DM20's high efficiency capsule requires no output transformer, which results in a much better transient response than most dynamic microphones.
The left of the three switches rolls bass out 3db at 120Hz and 5dB at 50Hz.
The center switch rolls out the bass 3dB at 210Hz and 10dB at 100Hz
The switch on the right lowers 5kHz by 4dB.
Specifications
High efficiency capsule
Tranformerless design
Super-Cardioid polar pattern
3 frequency response switches
Frequency response: 50Hz-20kHz
Sensitivity: -52dB
Output impedance: 200ohms
Horseshoe swing mount threads directly onto mic stand
Sturdy molded plastic roadcase
