Cinara MidiGateway 2x2
Images
1/1

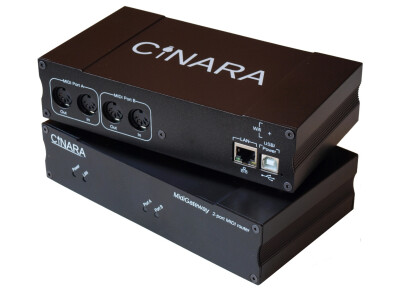

Cinara MidiGateway 2x2

MIDI Interface from Cinara

Write a user review or Ask for a user review
Product presentation Description
Reviews
Price engine
Classified Ads
Forums

MidiGateway 2x2 classified ad

Alerte nouvelle annonce

Tech. sheet

  • Manufacturer: Cinara
  • Model: MidiGateway 2x2
  • Category: MIDI Interfaces
  • Added in our database on: 04/04/2014

The CINARA MidiGateway is used to interface any MIDI devices with the Local Area Network (LAN) using the open standard RTP-MIDI. RTP-MIDI is fully supported by Apple MacOS X and iOS systems, and can easily be installed on Windows hosts (XP up to Windows8, 32 and 64 bits) using free driver. RTPMIDI technology allows to connect music stations through existing LAN infrastructure avoiding long MIDI cables, providing flexibility and advanced features. RTP-MIDI does not necessarily relies on Ethernet and can be also used over wireless links (Wifi). RTPMIDI is particularly relevant to interconnect applications running on mobile terminals such as laptops, tablets or smartphones with legacy MIDI devices.
Depending on model, the CINARA MidiGateway provides up to four independent MIDI input and output ports.
The CINARA MidiGateway also provides a USB 1.0 MIDI device interface. The USB port can be connected to any host that supports this standard (MacOS,Microsoft Windows, Linux operating systems have native drivers), providing a standard MIDI 2x2 or 4x4 USB interfaces. MIDI message can be routed through any physical MIDI port, USB logical port or RTP-MIDI session. Advanced configuration of the MidiGateway device can be easily done through a dedicated web interface from any host connected on the local network (PC/tablet/smartphone/...). Four functions are currently supported and can be combined: MIDI channel forwarding, merging, splitting and switching
CINARA MidiGateway was designed to guarantee low latency and reliable MIDI data flows transport on the LAN. In particular, it supports the optional RTP-MIDI recovery mechanism as defined by RFC 6295, and IP flow priority.



Features
Network

  • Compliant with Apple RTP-MIDI implementation
  • Up to 2 RTP-MIDI sessions with multiple clients support
  • Bonjour support for Plug And Play configuration
  • IP QoS support (DSCP tagging)
  • RTP-MIDI recovery support
  • Compatible with Wifi devices (iOS, Android)

USB

  • Compliant with MIDI over USB
  • Windows XP,Vista, 7, 8, MAC  OSX, Linux support (no driver needed)
  • 2 logical MIDI interfaces MIDI

MIDI

  • 2 MIDI-IN/2 MIDI-OUT ports compliant with MIDI standard
  • LED activity indicators

Control and management

  • Web-based control/management (no dedicated software on host)
  • Fast and easy setup
  • Configuration from any OS
  • Advanced routing control for advanced users

Advanced features

  • Low routing latency
  • Instant boot
  • Highly configurable and flexible MIDI routing functions





»
