The ultimate guide to audio recording - Part 35

Getting started

Recording drums — Hi-hat cymbals

  • Like
  • Tweet
  • +1
  • Pin it
  • Submit

Today, we will continue the chapter dedicated to drums recording considering other close miked elements that aren't necessarily indispensable... It depends on the situation, as you will see. We'll begin with the hi-hat.

Particularities

Generally speaking, the overhead stereo tracks ought to be more than enough to faithfully reproduce the hi-hats. However, in some occasions your overheads will need a little help. For instance, if the groove of the hi-hat is particularly predominant or the subtlety of the playing or speed of the pattern require an extreme precision, chances are these small but important details will get overshadowed by the rest of the sounds captured by the overheads. The famous hi-hat groove on Isaac Hayes' Shaft would have never had the same emotional impact had it been recorded with just the overheads, don't you think?

Another case where it would make sense to close mike the hi-hats is when the snare is pinned down to the center of the overhead tracks. In that case, the hi-hat will probably be completely out of place, towards the center of the stereo image, when you add the Snare Top track. The latter will certainly need to be placed firmly at the center for it to be coherent with the overheads, but the bleed of the hi-hat in the Snare Top mic will tend to pull them towards the center with the snare, which will only blur their localization in the sound field. And that's when a closed mike track of the hi-hat will allow you to set things straight, giving you the possibility to place more precisely the attack of this element where you want it.

On track

01

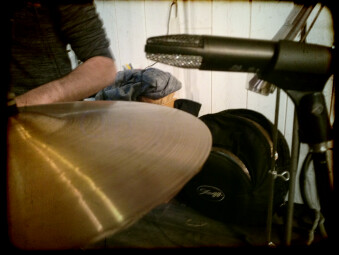

We were fortunate enough to have some true relics at hand when recording the drums. So we decided to spoil ourselves and use a Milab DC-96B large diaphragm condenser mic on the hi-hats. After all, it's not like you can play with such tools every day. Nevertheless, I include here a small, non-exhaustive list of mics you can use for this task:

  • The AKG C414 is an all-time classic;
  • The small diaphragm C451 B by the same manufacturer is just as effective;
  • And if you are on a tight budget, the Rode NT5 or the Oktava MK-012 will also do a fine job;
  • To get a more "classic" sound, with flatter dynamics and a tighter high end, you can go for the Shure SM57;
  • And if you want a less aggressive high end, without it losing its natural quality, don't hesitate giving a ribbon microphone a try.

When it comes to placing it, there are no mysteries. Simply place the mic above the hi-hat so that the capsule points somewhere between the rim and the bell. But make sure that it doesn't interfere with the opening of the hi-hat — 2.5 to 4 inches away is usually a safe distance.

Here's what we got with the Milab DC-96B:

01 HiHat Verse
00:0000:14
  • 01 HiHat Verse 00:14
  • 02 HiHat Chorus 00:28
02

As you can hear, the amount of bleed of the other elements of the kit varies depending on the density and intensity of the drummer's playing. But that won't necessarily be an unsurmountable problem during mixdown, since what you are after here is the attack of the hi-hat. There are different means to isolate a bit more the attack during tracking or mixing — EQ, gate, editing, etc. — it's up to you to decide what works best.

And if the bleed really annoys you, there's a simple trick to minimize it during tracking without the need of any additional processing: use a figure-8 mic! As you surely know, this type of mics have the particularity of rejecting sound 90º off-axis. So if you place it in a way that most of the elements of the kit are 90ª off-axis, you will get a "cleaner" hi-hat take. But do note that, given the bidirectional nature of the mic, this will also entail capturing more room than before — you don't get something for nothing.

See you next time to discuss the toms.



Download the audio files (in WAV format)

← Previous article in this series:
Recording drums — Panning
Next article in this series:
Recording drums — The toms →
