    Elektron Analog Four

    Analog Four, Groove Machine from Elektron.


    14 user reviews
    Prices starting at $829 average price: $829
    Find it in the classifieds starting at $967 avg used price: $950

    Elektron Analog Four tech. sheet

    • Manufacturer:Elektron
    • Model:Analog Four
    • Category:Groove Machines
    • Added in our database on:11/09/2012

    We have no technical specifications for this product
    but your help will be much welcomed

    Fill in the product description

    »

    Buy new Elektron Analog Four

    Sweetwater Analog Four 4-voice Analog Synthesizer with Sequencer $829

    Buy used Elektron Analog Four

    Elektron Analog Four Elektron Analog Four $965.42 »

    User Reviews Elektron Analog Four

    Average Score:4.2( 4.2/5 based on 14 reviews )
     5 reviews36 %
     5 reviews36 %
     1 user review7 %
    Value For Money:
    mrjason02/07/2013

    mrjason's review"Love Elektron"

    Elektron Analog Four
    The Elektron Analog Four has been one of my go to synths recently. It is a table top style synth that doesn’t take up much space on my desk. It has a 6 track MIDI sequencer and 2 audio inputs with 2 TRS outputs. There are no digital connections on this unit. It only weighs about 5 pounds and can be operated from DC wall connection or batteries. There are 128 presets on it and most of them are pretty good. The effects are simple, just reverb, delay and chorus but if you want to use some external effects once you get it into your DAW you can, that is easiest way for me to do it.

    UTILIZATION

    This synth only took me about 25 minutes to figure and get swing of, after I got the flow of the interface down the rest was simple because it seems to be pretty standard to most other synths that are the “table top” style.

    SOUNDS

    The synth engine is really good and it surprised me, I am able to get some unique and different from other synth sounds quickly on this unit because of how easy it is to change the presets to how you want them to sound. There are also 6 arps that can all be edited down to the sing, slide and transpose styles.

    OVERALL OPINION

    If you are thinking of purchasing this and have a little more money to spend take a look at the higher end table top synths from Elektron like the MonoMachine MKII and the SPS-1. Elektron has been coming out with great units like these for years now and I have used just about everyone of them. They also have some of the best customer service I have ever experienced and the warranty plans to back it up. I love all gear I get from Elektron and I love talking to them on the phone, they are very helpful especially if you purchase directly from them.
    »
    coopongle01/19/2013

    coopongle's review(This content has been automatically translated from French)" top notch"

    Elektron Analog Four
    THE SEQUENCER:

    4 synth tracks
    1 FX track
    1 CV / Gate track
    128 patterns
    Up to 64 steps per pattern
    128 Sounds
    128 Kits
    16 Songs
    6 arpeggiators
    Individual track lengths
    Swing, slide and focus functions
    Track transposes
    Micro timing
    Parameter locks
    Friendly Live Performances
    Sound-per-step changes
    Instant kit, pattern, track and Sound reload
    Full real-time control
    Full MIDI support

    SEND EFFECTS:

    Wideshift Chorus
    Saturator Delay
    Supervoid Reverb

    VOICE SYNTH (x4):

    Fully analog signal path
    2 analog oscillators
    Variable waveshape is all waveforms
    Oscillator AM and Sync modes
    2 sub-oscillators
    1 noise generator
    April 1-pole analog lowpass ladder filter
    January 2-pole analog multi-mode filter
    1 analog overdrive circuitry
    Filter feedback
    2 assignable LFOs
    1 dedicated vibrato LFO
    2 dedicated waveshape LFOs
    1 amp envelope
    2 assignable envelopes
    2 dedicated LFO fade envelopes
    1 dedicated noise fade envelope
    1 dedicated vibrato envelope
    1 envelope dedicated AUTOBEND
    3x individual effect Sends

    ELECTRICAL SPECIFICATIONS:

    Impedance balanced audio outputs:
    Headphones out level: +19 dBu (55)
    Main outputs level: +19 dBu
    Output impedance: 440 unbalanced
    Unbalanced audio inputs:
    Input level: +19 dBu maximum
    Audio input impedance: 9 k
    Digital S / N ratio: 102 dBFS (20-20,000 Hz)
    Unit power consumption: 8 W typical, 18 W maximum.
    Recommended power supply: 6 V DC, 3 A

    HARDWARE:

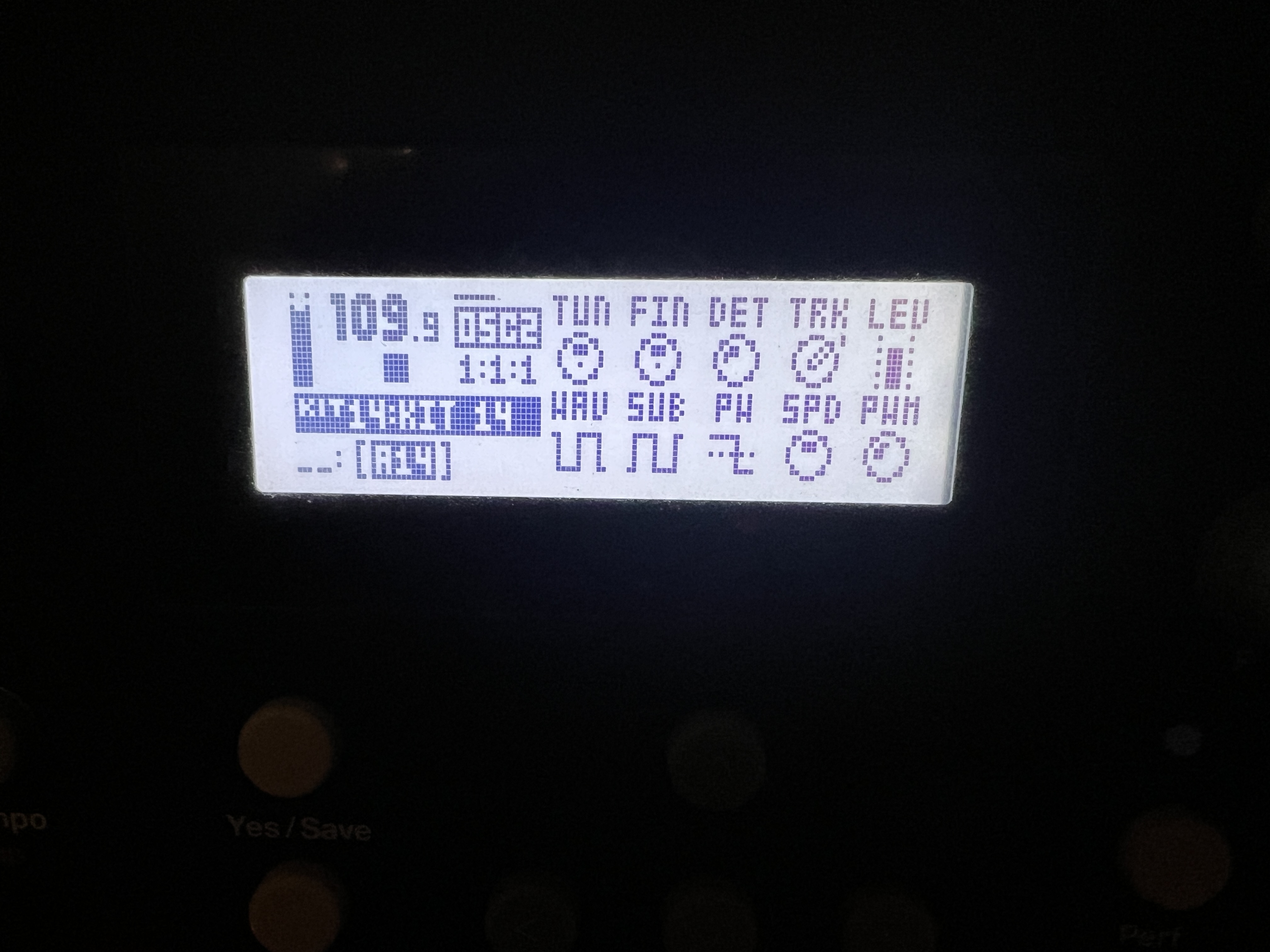

    122x32 pixel backlit LCD

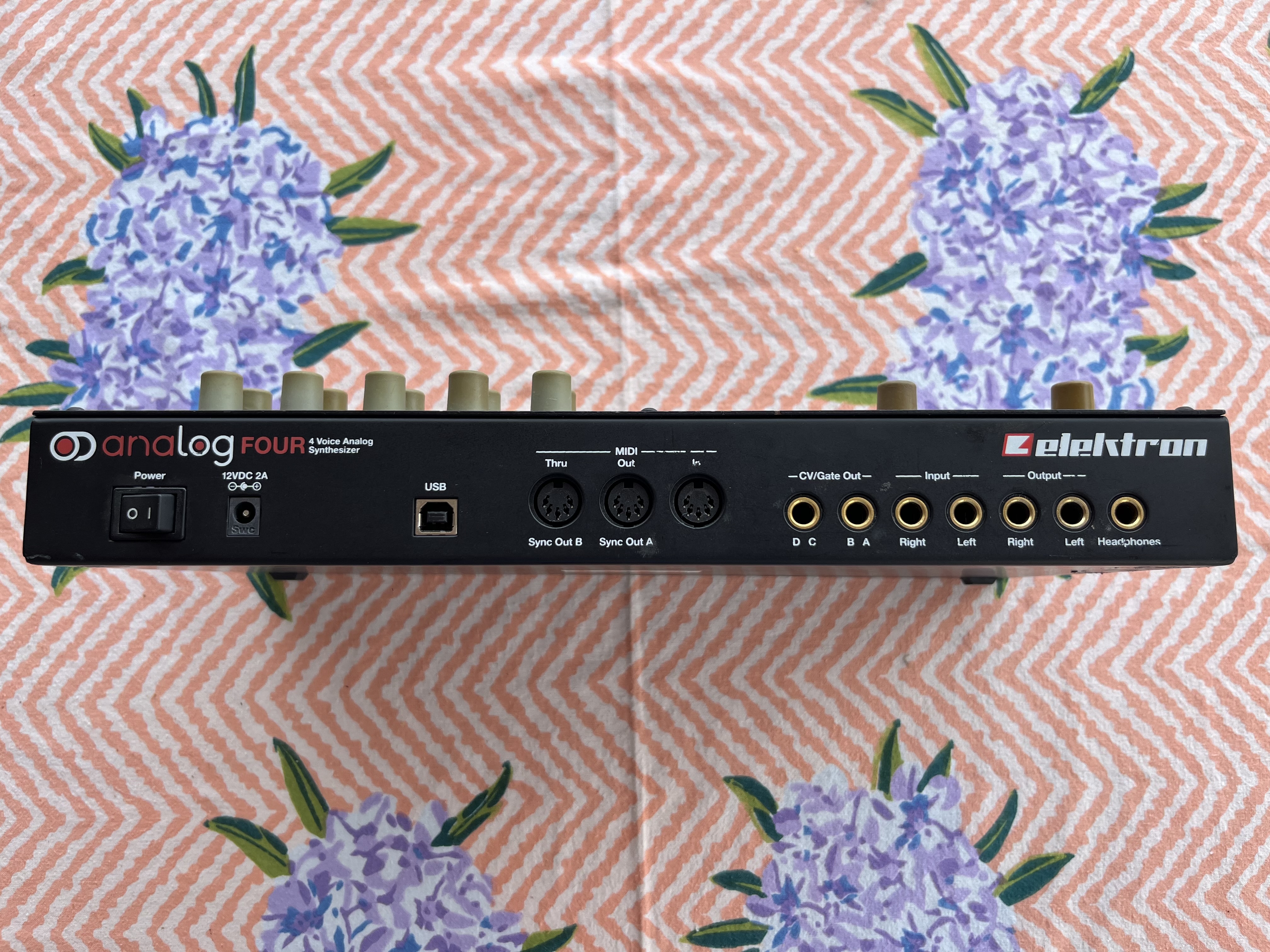

    MIDI In / Out / Thru with DIN Sync Out
    2 x 1/4 impedance balanced audio out jacks
    2 x 1/4 audio in jacks
    1 x 1/4 stereo headphone jack
    2 x 1/4 dual CV / Gate outputs
    48 kHz, 24-bit D / A and A / D converters
    Flash EEPROM upgradeable OS
    Electrically isolated USB 2.0 port

    PHYSICAL SPECIFICATIONS:

    Steel casing
    Dimensions: W340xD176xH63mm
    (Including knobs, jacks and rubber feet)
    Weight: approximately 2.4 kg

    POWER SUPPLY (PSU-3) ELECTRICAL SPECIFICATIONS:

    Input voltage range: 100-240V (43-60Hz)
    Input connector: IEC320-C8 (2 prong)
    In-rush current: 40-60 A maximum
    Output voltage: 12 V DC
    Output current: 2.5 A max
    Output connector: 5.5x2.5mm DC plug, power at center

    USE

    No manual but easy to understand if you know the basics

    (PDF on the site)

    Screen a bit tight but very intuitive !!

    SONORITS

    Unlimited Possiblit !!

    The analog filters (2 per voice) are wonderful !!

    No spares alas outputs but luckily the effects are effective (nice reverb)

    NOTICE GLOBAL

    No competition this price !!

    I sold my Tetra for the A4.
    Well it's not the same price but the sound is different (much better my taste) and OS better finished ...

    Strongly polyphony !! (That is apparently PRVU ... pray that has be done !!)
    »
    coopongle01/19/2013

    coopongle's review(This content has been automatically translated from French)" top notch"

    Elektron Analog Four
    The squenceur

    4 synth tracks (mono although perhaps bientt polyphonic ??)
    1 FX track
    1 CV / Gate track
    128 patterns
    Up to 64 step patterns
    128 Sons
    128 Kits
    16 Songs
    6 arpeggiators
    Individual track lengths
    Features Swing, slide and accent
    Track transposes
    Micro timing
    Parameter locks
    Friendly Live Performances
    Sound-per-step changes
    Instant Pattern, Kit and Sound reload
    Full real-time control
    Full MIDI support

    Track Effects

    Wideshift Chorus
    Saturator Delay
    Supervoid Reverb

    Parameters of synthesizers

    Fully analog signal path
    2 analog oscillators
    Drives waveforms on each oscillator
    Oscillator Sync modes AM
    April 1-pole analog lowpass ladder filter
    January 2-pole analog multi-mode filter
    1 analog overdrive circuitry
    2 Ssub oscillator
    1 noise oscillator
    2 assignable LFOs
    LFO 1 vibrato ddibr /> 2 LFOs waveshape ddis
    1 amp envelope
    2 assignable envelopes
    2 LFO envelopes fade ddis
    1 bland noise envelope ddibr /> 1 vibrato envelope ddibr /> 1 AUTOBEND envelope ddibr />
    Hardware

    12232 Display LCD pixel
    MIDI In / Out / Thru with DIN Sync Out
    2 1/4? audio out jacks symtriques
    2 1/4? audio in jacks
    1 1/4? stereo headphone jack
    2 1/4? dual CV / Gate outputs
    48 kHz, 24-bit D / A converters and A / D
    Flash EEPROM upgradeable OS
    USB 2.0
    Symtriques audio outputs
    Headphone Output Level: + 19dBu (55?)
    Main Output Level: + 19dBu
    Output Impedance: 440? asymmetric

    Among asymtriques audio

    Level of: + 19dBu maximum
    Audio Input Impedance: 9 k?
    Digital S / N Ratio: 102dBFS (20-20.000Hz)

    Electrical Specifications

    Unit power consumption: 14 W typical, 24 W maximum
    Food recommends: 12 V DC,> 2 A

    Other

    Sturdy steel frame
    Dimensions: L 340 P 176 H 63 mm
    Weight: about 2.35 kgs

    USE

    No manual but easy to understand if you know the basics.

    (PDF on the site)

    Screen a bit tight but very intuitive !!

    SONORITS

    Unlimited Possiblit !!

    The analog filters (2 per voice) are wonderful !!

    No spares alas outputs but luckily the effects are effective (nice reverb)

    NOTICE GLOBAL

    I sold my Tetra for the A4.
    Well it's not the same price but the sound is different (much better my taste) and OS better finished ...

    Strongly polyphony !! (That is apparently PRVU ... pray that has be done !!)
    »
    dakitanmonkey08/19/2014

    dakitanmonkey's review(This content has been automatically translated from French)" Very good analogue machine"

    Elektron Analog Four
    It is best to go on the Elektron site to get an idea of ​​the capabilities.
    In addition to providing four lanes 3 effects are available: chorus, delay and reverb. The effects are shared between the channels, but you can of course adjust the volume for each channel.
    The sequencer is excellent, and function parameter lock is great (ability to change the settings or even the sound for a particular step).
    The small built-in keyboard is extremely convenient.
    Since the last update, you can play chords on the slopes, but be careful, it is limited to 4 global channels (so kind if you make an agreement of 4 ratings on the step 1 of track 1, there is more opportunity to play a sound on the other step 1 of the other tracks).

    UTILIZATION

    Quick grip. Personally, I'm somewhat in the menus, there is enough surface controller. If you are a regular Elektron machine, it does not pose any problems.

    SOUNDS

    Excellent I think. I wanted to make good bass, and beautiful tablecloths. It is possible, mission accomplished. Go take a look at videos made by users to report to you.

    OVERALL OPINION

    Before buying it I watched a lot of video on youtube to be sure of his abilities.
    This is the machine that I always expected (multichannel synth, built-in effects, built-in sequencer, integrated mini keyboard). I used Ableton live, I do not use anymore.

    What I like most is the parameter lock, as I have described above.
    Since my purchase prices rose a bit apparently. I do not regret this purchase instead, since I bought an Octatrack.
    »

    News Elektron Analog Four

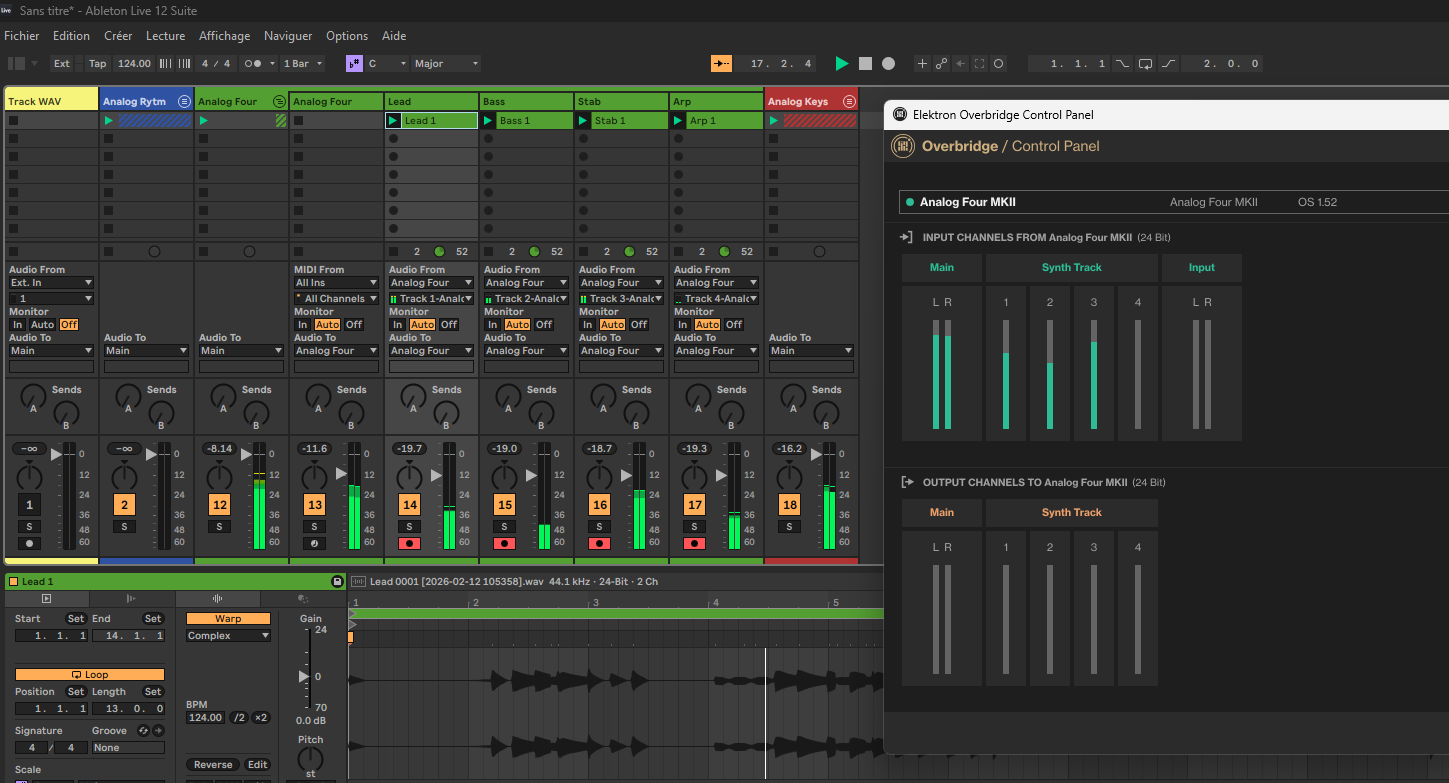

    Elektron releases Overbridge 1.0 with a promo

    Elektron releases Overbridge 1.0 with a promo

    Published on 08/17/15
    Elektron announced that the Overbridge plug-in is now available in v1.0 for Ableton Live and launched a special sale on their Analog Machines.

    Images Elektron Analog Four

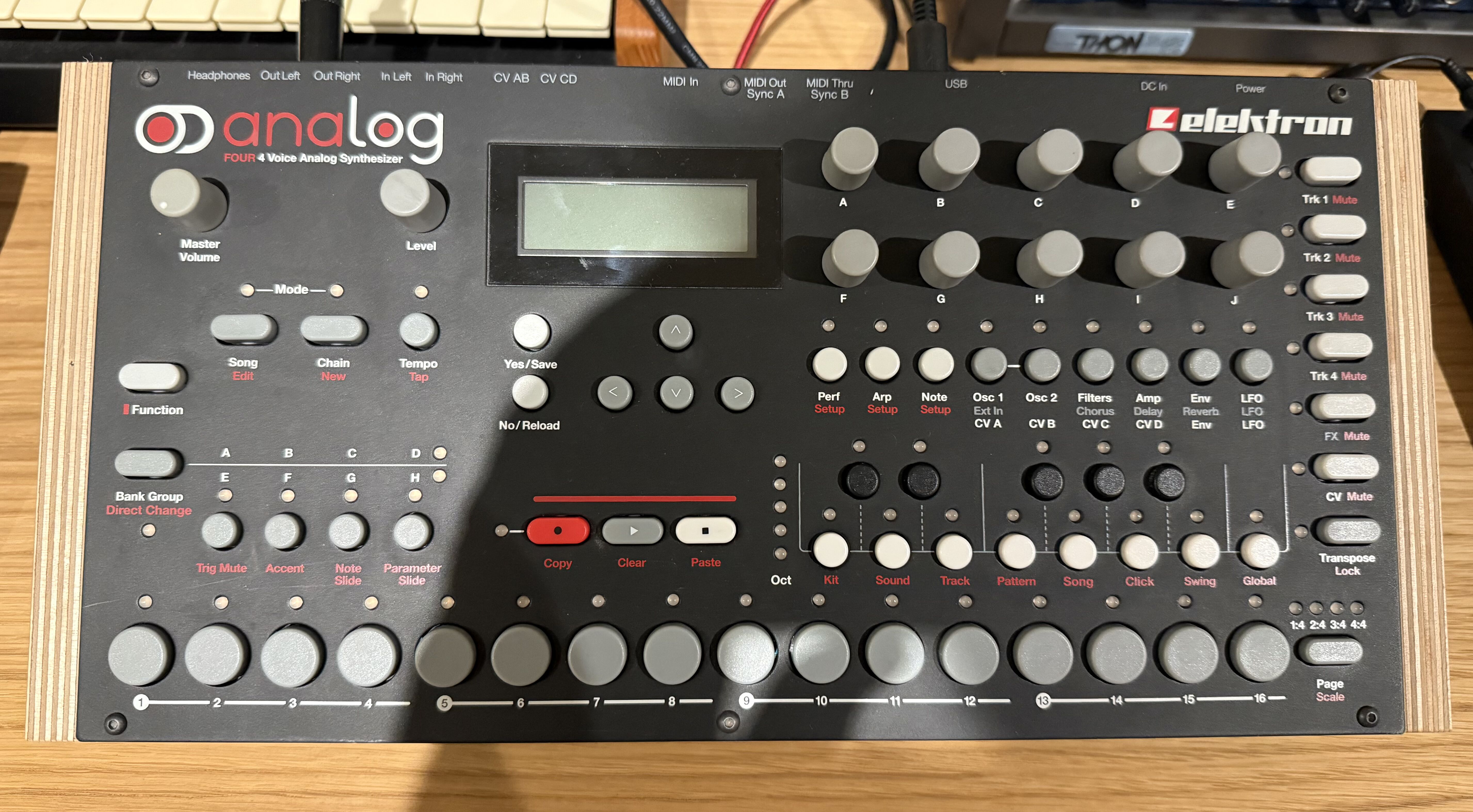

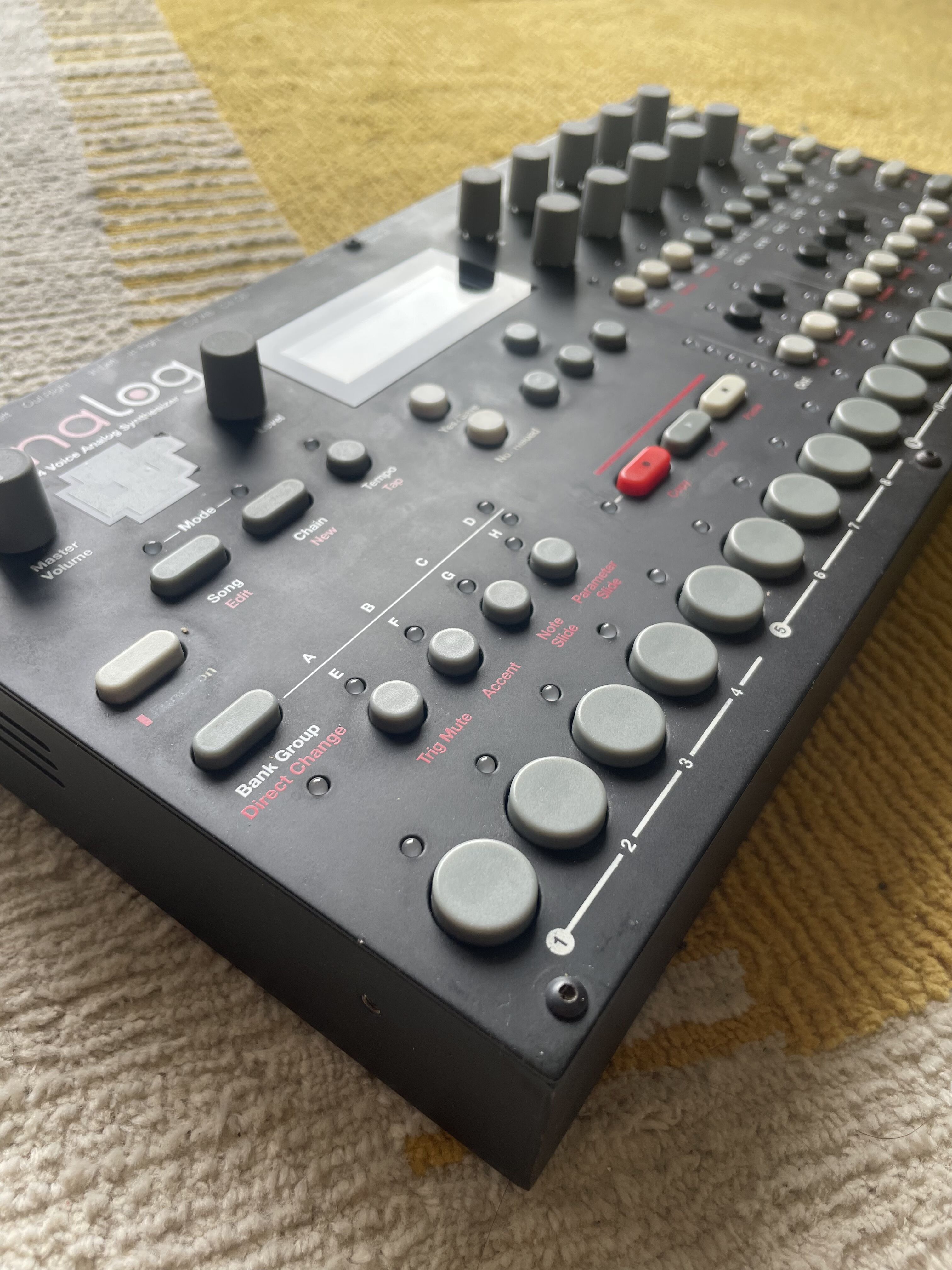

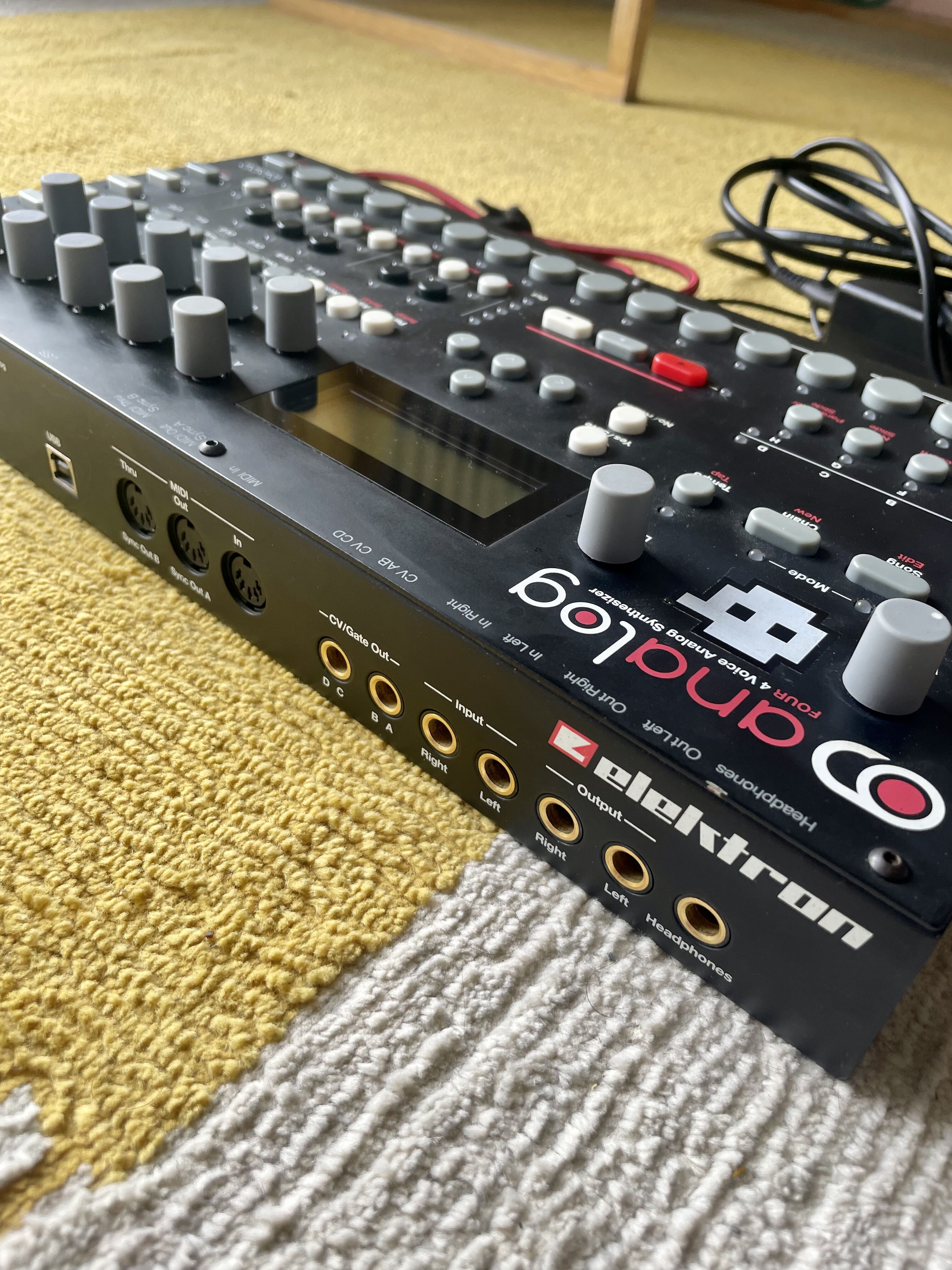

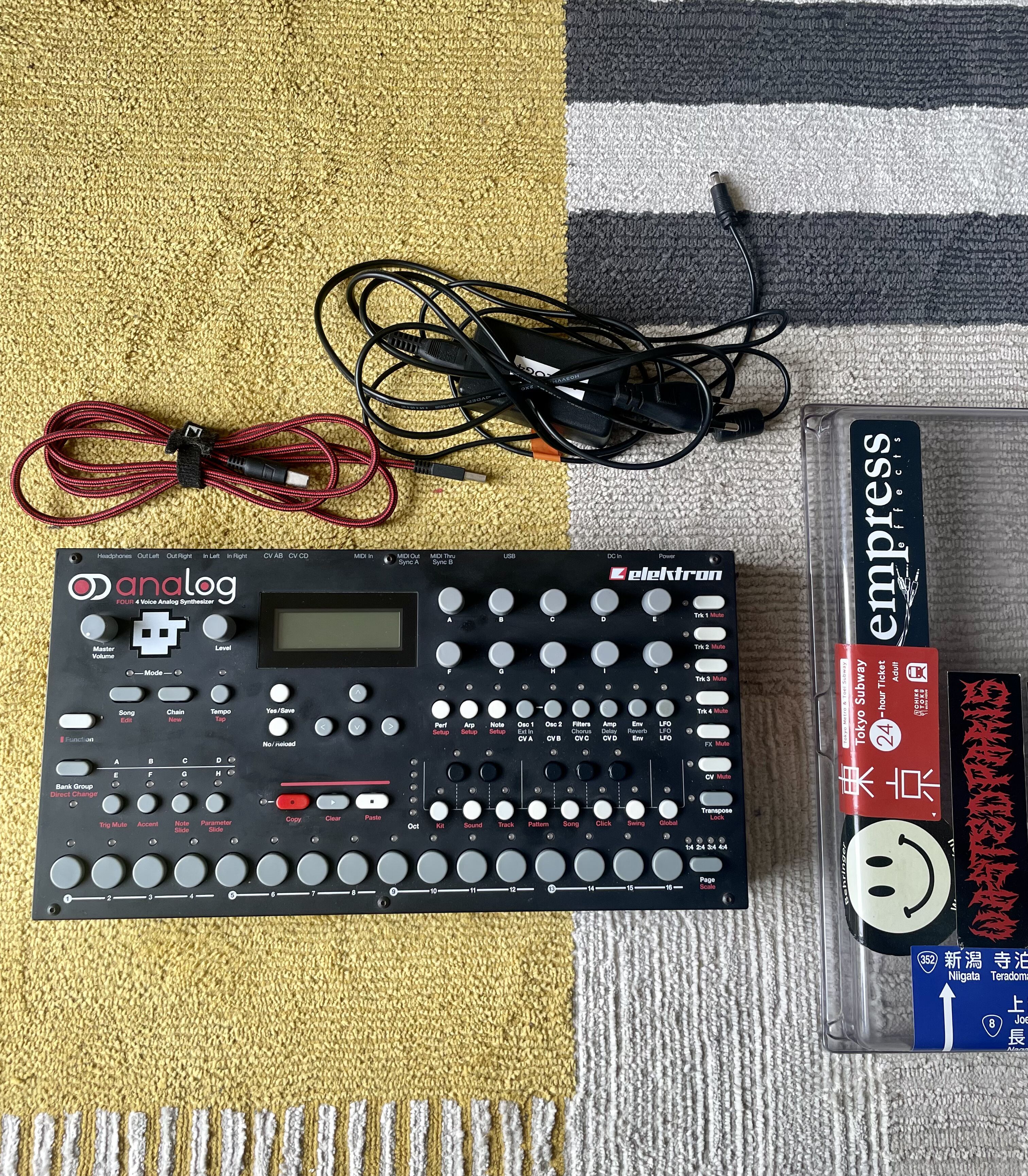

    • Elektron Analog Four

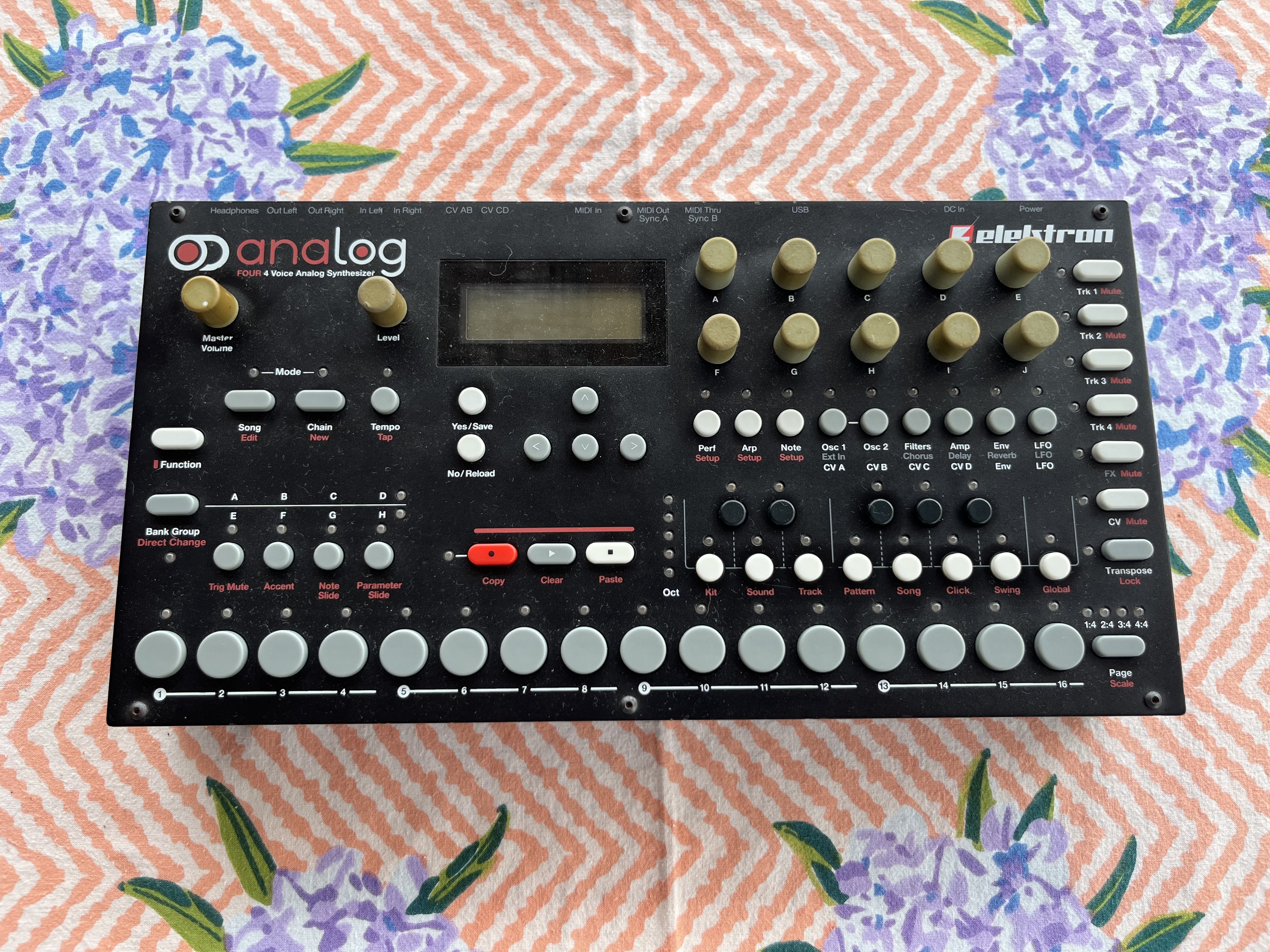

    • Elektron Analog Four

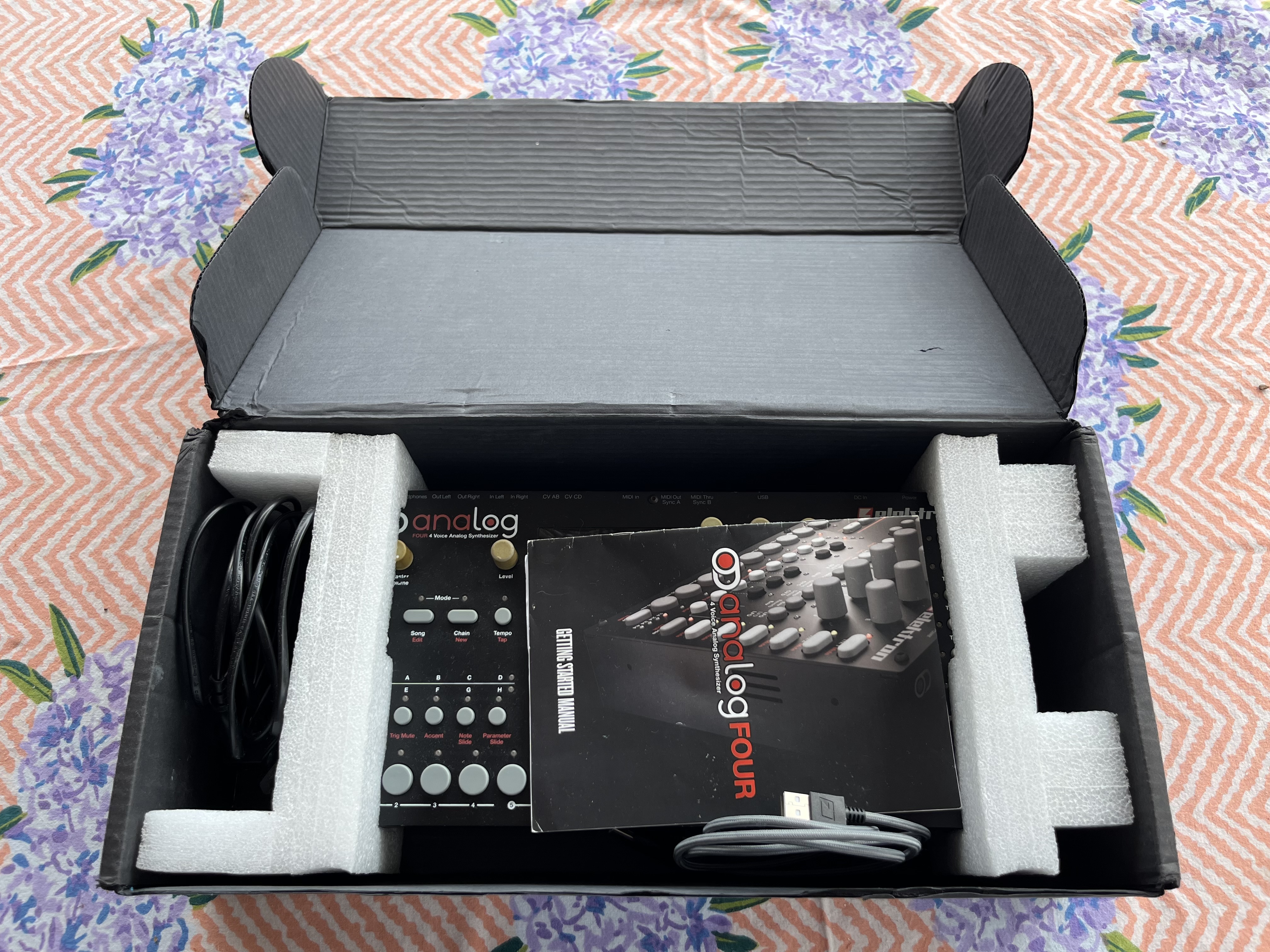

    • Elektron Analog Four

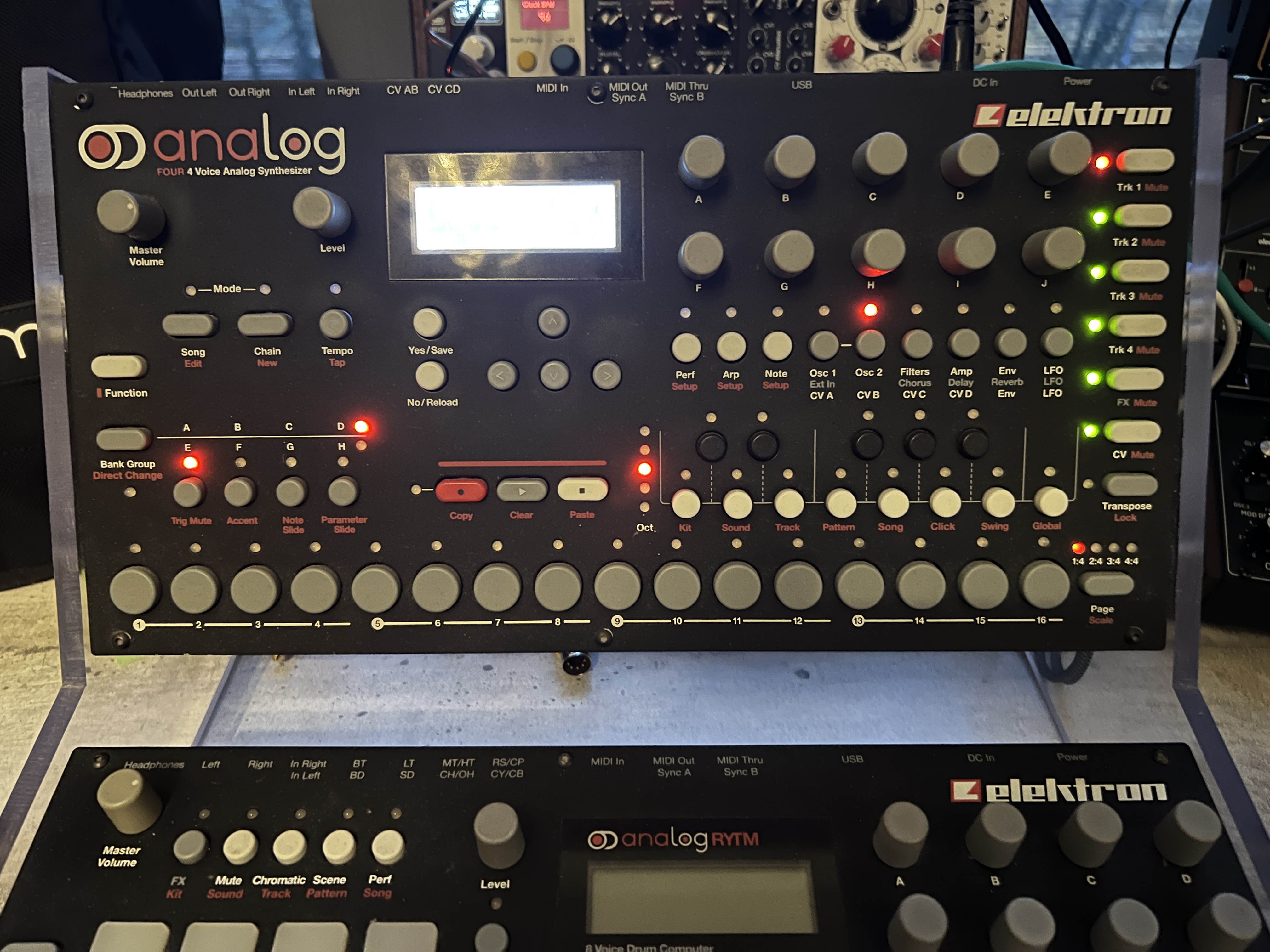

    • Elektron Analog Four
