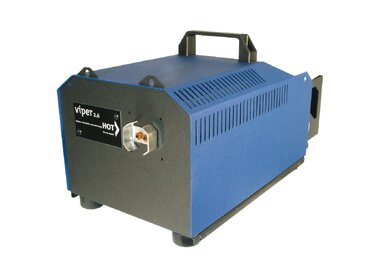

Look Solutions Viper 2.6

DMX 512 as standard

The VIPER 2.6 can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs.
The DMX start address can be adjusted and saved via the control panel.

The machine can also be controlled with analog (0 - 10 V) via a lighting desk or via XLR-remote (option). This connection is done with 3pin-XLR-plugs.

A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary.

Internal timer

With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %.

Control panel

The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt.

Finest adjustments of the output

Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 - 99%. Thus, any desired effect from a tiny fog-cloud to the thickest fog can be produced. This enables the VIPER 2.6 to be used in both small and large locations.

Connector for external fan

An external fan with max. 800 Watt can be connected to the VIPER 2.6. Once connected to the machine, the fan can also be adjusted via DMX. The machine then uses two following channels at the desk.

• DMX as standard, analog and stand-alone-mode
• Internal timer
• Fog output adjustable in steps of 1% (0 - 99%)
• Continuous output
• Easy handling
• Powerful output
• Made in Germany
