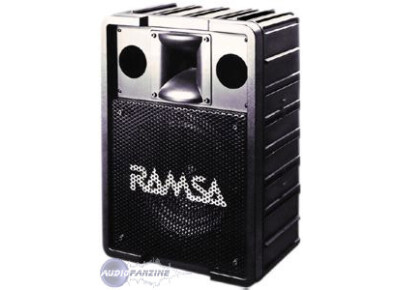

Ramsa WS-A200E

Add this product to
  • My former gear
  • My current gear
  • My wishlist
Write a user review
Where to buy WS-A200E?
Less
  • New
  • Second-hand
No retailers are offering this product at this time.
Availability alert
There are no classified ads for this product.
New ad alert

Tech. sheet

Created on 03/29/2004

Features:

  • 2-way bass reflex speaker; 98 dB SPL, 8 O
  • Power handling: 250 W (continuous program) input) / 125 W (RMS).
  • Flat frequency response from 70 Hz ~ 18,000 Hz; however, a usable response is obtained below 70 Hz.
  • Twin-Bessel CD horn for stable, constant directivity 60 ° (H) × 40 ° (V) coverage; The horn can be rotated 90 degrees without changing the mounting.
  • 30 cm (12 ") cone woofer.
  • The thermal protection is equipped with high and low frequency drivers, to avoid damage caused by accidental excessive input

Technical data:

  • Speaker Type: 2-way, bass reflex
  • Input Impedance: 8 O
  • Power handling: 250 W(continuous program input)125 W(RMS)
  • Sensitivity: 98 dB SPL(1 W, 1 m)
  • Frequency Response: 70 Hz~20,000 Hz
  • Crossover Frequency: 2,500 Hz
  • Drivers
    Low Frequency: 30 cm(12")cone type
    High Frequency: Twin Bessel horn / compression driver
  • Dispersion: 60°(H)×40°(V)
  • Connections: 2x jack, 2x terminal
  • Dimensions(W x H x D): 39,5 × 55,7 × 27,2 cm
  • Weight: 16 kg

(taken from pa-shop.de (the original from that website appears to be an automated translation with some translation errors, hence the odd sentences in some places), and then translated to English with www.DeepL.com/Translator (free version))

»
