ADJ (American DJ) Comscan LED
Images
1/5

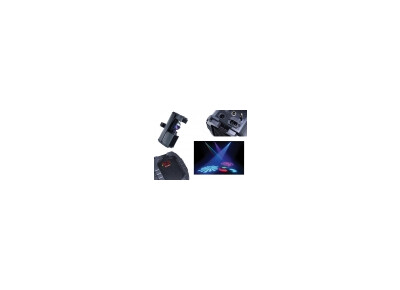

ADJ (American DJ) Comscan LED

Moving mirror from ADJ (American DJ)

Write a user review or Ask for a user review
Reviews
Price engine
Classified Ads
Forums

Comscan LED classified ad

New ad alert

Images

Tech. sheet

  • Manufacturer: ADJ (American DJ)
  • Model: Comscan LED
  • Category: Moving mirrors
  • Added in our database on: 10/14/2011

Comscan the American DJ is a compact LED scanner comprising an LED 10 W of high quality. Its LED and high quality lenses far exceeds the performance of other scanners with higher power lamps.
Gobo wheel with 8 gobos Comscan different colors. Easy to install by following the instructions on the screen embedded, it is chainable in master / slave mode for perfect synchronization.


   - Product Description
   - Additional Information
   - We also recommend
   - Documents
   - Videos

- The system includes:

- 2x LED Scanners Comscan
- 1x UC3 easy controller Usage
- 1x DMX cable

specifications:

- Compact and portable mobile has high performance, DMX scanner reaches an advanced high performance
- 8 gobos / colors + spot
- Gobos & Color are on the same wheel
- DMX-512 protocol (5 DMX channels)
- 4 live programming buttons on digital display on the rear panel
- 3 operation modes: DMX controller, Master / Slave & Music
- Several integrated programs
- Reverse Mode Pan / Tilt: for using 4 scanners in Master / Slave Scanner 1 & 3 reverse synchronization Scanner 2 & 4
- Manual focusing lens adjustment
- Effect Gobo Shake
- Dimming: 0-100%
- Strobe effect
- Opening angle: 13-degrees
- X / Y movement of the mirror
- Pan: 166 degrees DMX 104 degrees in musical fashion
- Tilt: 54 degrees DMX; 40 degrees in musical fashion
- 1.8 degrees for the stepping motor, micro displacement
- Hanging Bracket + safety hook included
- Power consumption: 30W max
- Hanging bracket included + safety cable
- Long Life LEDs (30,000 hr approx.)
- Multi-voltage: AC 100V ~ 240V 50 / 60Hz- IEC socket
- Dimensions (LxWxH): 344x160x200mm
- Weight: 3.6kg


ADJ - Comscan LED System

»
