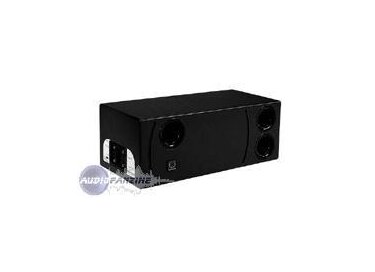

Impact 110.2 Sub Passif classified ad
New ad alertImages
Tech. sheet
- Manufacturer: Turbosound
- Model: Impact 110.2 Sub Passif
- Series: Impact
- Category: Subwoofers
- Added in our database on: 10/08/2003
Technical Specifications
Dimensions 330mm x 585mm x 330mm (13” x 23” x 13”)
Net weight 16.5 kg (36.3 lbs)
Frequency Response 45Hz to 180Hz
Power Handling 300 watts r.m.s., 600 watts program
Nominal Impedance 2 x 4 ohms
Sensitivity 95dB, 1 watt @ 1metre
Calc. Max SPL 120dB continuous, 126dB peak
Crossover Built-in high pass crossover network at 150Hz
Construction 15mm (5/8”) birch plywood
Rigging 4 x M10 internal rigging points
Options TurboBlue or white semi-matt textured paint
The TSB-110 is a general purpose band-pass subwoofer designed to add low frequencyreinforcement to Turbosound loudspeakers such as the IMPACT50, IMPACT80, TCS-30, TCS-35,
TXD-081 and TQ-308.
The TSB-110 utilises a dual voice-coil 10” low frequency driver with two configurable 4 ohm voice
coils. In its ‘as shipped’ configuration the two inputs and two outputs are set up so that the bass
cabinet can be driven by the left and right channel of a standard two channel (stereo) power
amplifier. The input connections are labelled left and right on the spring terminals and are also
present at the 1+, 1- (left) and 2+, 2- (right) connections on the Speakon NL4MP socket. Outputs are
available through the spring terminals only.
The inputs drive the two voice coils separately via a 150hz low-pass first order filter. The satellite
speaker outputs are provided via a high-pass first order filter at 150Hz.
RECOMMENDED AMPLIFIER POWER RATINGS:
The amplifier's rated r.m.s. continuous power output (20Hz – 20kHz, each
channel) should be 2 x 300 watts at 4 ohms per channel.
The TSB-110 can be configured as a single 8 ohm sub-bass unit if required by effectively patching
the two voice coils in series. To do this, remove the connector dish housing the spring terminals
by removing the six cross-head fixing screws and lifting it out and away from the cabinet as far as
the internal wiring will allow.
Locate the four jumper locations on the circuit board, labelled J1, J2, J3, and J4. The unit is
shipped with J2 and J4 connected with J1 and J3 not connected (dual 4 ohm mode). For single 8
ohm operation unplug J2 and J4 and transfer the jumpers to J1 and J3. This connects the two
voice coils in series and transfers the input to the left input only (pins 1+ and 1- on the Speakon
NL4MP). Note: In single coil mode DO NOT use the right inputs and outputs as this will result in
incorrect operation and may damage loudspeakers and amplifiers.
»
