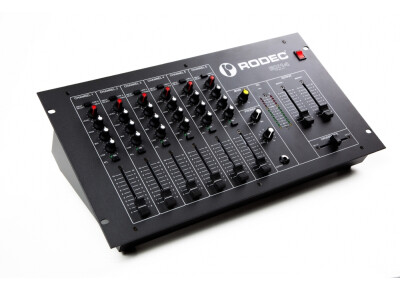

Rodec BX-14 original

• Manufacturer: Rodec
• Model: BX-14 original
• Category: 4+ Channel Mixers
• Added in our database on: 09/11/2010

Features
6 Channel 19" 6HE Professional Audio Mixer

6 Multiple input channels with:
- Gain
- Triple tone control
- PFL select pushbutton with LED-indicator (cue)
- Channel 1: Line, Line B
- Channel 2: Line, Phono
- Channel 3: Line, Phono
- Channel 4: Line, Line B
- Channel 5: Line, Balanced XLR Mic with EFX insert
- Channel 6: Line, Balanced XLR Mic with EFX insert
- 2 Phono Inputs
- 8 RCA Line Inputs
- 2 Balanced XLR Mic inputs

2 Master outputs with general balance rotary
- Master 1 (Main): RCA and balanced XLR output
- Master 2 (Main): RCA

Record outputs
- 2 RCA record outputs
- 1 RCA AUX output

Faders - Crossfader
- Easy-slide 60mm channel faders
- Crossfader between channels 1-2 and 3-4
- Soft touch fader knobs for better grip.

Headphones
- Very strong DJ headphones amplifier
- Headphones select rotary PFL/SUM

Specifications
Nominal analogue input levels:
- Line A asymmetrical (RCA): 220mV / 50kOhm
- Line B asymmetrical (RCA): 220mV / 50kOhm
- Phono asymmetrical (RCA gold plated): 2.3mV / 50kOhm
- Microphone (channel 5 & 6) symmetrical (XLR): 3.5mV / 3.3kOhm

Nominal analogue output levels:
- Master 1 asymmetrical (RCA): 1.55V / 10 Ohm
- Master 1 symmetrical (XLR): 3.3V / 600 Ohm
- Master 2 asymmetrical (RCA): 1.55V / 10 Ohm
- Record asymmetrical (RCA): 500mV / 10kOhm
- AUX asymmetrical (RCA): 775mV / 10kOhm
- Headphones (1/4" TRS JACK) sensitivity 12V/600 Ohm

Music equalizer:
- Low: +13dB / -13dB at 100Hz
- Mid: +13dB / -13dB at 1kHz
- High: +13dB / -13dB at 10kHz

General specifications:
- Subsonic filter: -25dB @ 10Hz
- Total harmonic distortion: < 0.01%
- Signal to noise ratio: 90dB
- Fuse: T500mA
- Approbation: CE-approved

Dimensions:
- Front: 485.0mm x 266.0mm (19" x 6HE)
- Chassis: 444.0mm x 254.0mm x 120.0mm
- Weight: 6.02kg

Power source:
- Standard: 230V / 50Hz-60Hz
- On request: 100V-117V / 50Hz-60Hz
- Power consumption: OFF=2.0VA ON=23.4VA
