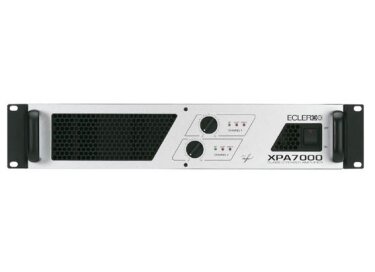

Ecler XPA 7000

• Manufacturer: Ecler
• Model: XPA 7000
• Category: Dual-Channel Power Amps
• Added in our database on: 12/29/2005

HIGH EFFICIENCY MOSFET AMPLIFIER

Ecler XPA Power amplifier series offers the
renowned professional reliability of all Ecler
amplifiers at an affordable price. The line
consists of three models with power outputs
of 300, 500 and 700 W per channel at 4 .
All models employ MOSFET amplification
technology, are 2 rack units high and are
based on a robust chassis with aluminium
front panel. Thanks to their oversized power
supply, these amplifiers can operate comfortably
with 4 and even 2 loads.
They feature balanced input connections via
XLR3 and 1/4’’ Jacks. The outputs offer total
versatility thanks to secure connection posts
with standardized separation and Speakon®
sockets. An electronic limiting system for
avoiding signal overloads and a switchable
subsonic filter are also on board.

TECHNICAL CHARACTERISTICS XPA7000

POWER 20-20kHz 1% THD Both channels driven
4 Ohms Stereo 718 WRMS
8 Ohms Stereo 450 WRMS
8 Ohms Bridged 1436 WRMS
Peak power 2 Stereo 1450 WRMS
Frequency response (-1dB/-3dB) 10Hz/120kHz
High pass filter (-3dB) 30Hz/18dB oct.
THD+Noise @ 1kHz Full Pwr.  <0,1%
S+N/N 20Hz-20kHz @ 1W/4 Ohms >78dB
Damping factor 1kHz @ 8 Ohms >300
Slew Rate ±45V/ms
Input connectors XLR3 & 1/4” Jack balanced
Input Sensitivity / Impedance 0.775V, 1V, 1.4V/20k Bal. 10k Unbal
Signal present indicator -40dB
Output connectors Speakon & Binding Posts
Mains Depending on your country. See characteristics in the back of the unit.
Power consumption (EN 55103-1)  775VA
Dimensions 482.6x88x452mm
Weight 19,5Kg
