Tech. sheet
- Manufacturer: Laboratorio Elettronico Popolare (LEP)

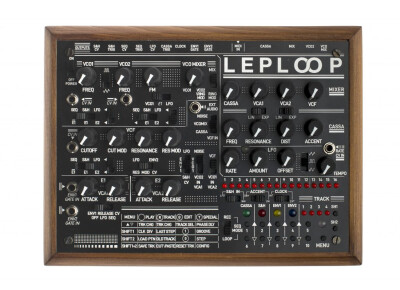

- Model: LepLoop v3
- Category: Groove Machines
- Added in our database on: 05/15/2022
- 1 OSCILLATOR (VCO1) TRIANGULAR/SQUARE WAVE
- 1 OSCILLATOR (VCO2) SAWTOOTH WAVE WITH RING MODULATOR AND FM MODULATION
- WHITE NOISE GENERATOR
- 24 dB/OCT DIODE LOW PASS FILTER
- KICK DRUM WITH DISTORTION AND TRIGGER MIXER
- 2 VCA
- 2 AR ENVELOPE GENERATORS
- 1 LFO
- 16 CAPACITORS ANALOG SEQUENCER PWM PROGRAMMABLE
- 4 TRACK DIGITAL RHYTHM SEQUENCER 64 STEP EACH TRACK
- 4 CHANNEL AUDIO MIXER
- MIDI INPUT (CLOCK AND NOTES)
- 5 CV OUT: S&H, SEQ, LFO,ENV1,ENV2
- 3 GATE OUT: S&H, SEQ, CASSA
- 2 GATE IN : ENV1, ENV2
- 4 CV IN: VCO1, VCO2, VCF CUTOFF, LFO RATE
- 1 AUDIO IN (VCF)
- 4 AUDIO OUT: MIXER, CASSA, VCO2, VCO MIX
- 1 CLOCK OUTPUT: CLOCK 24, MINI JACK MIDI START\STOP TYPE C TS MONO
- EEPROM MEMORY, 16 BANKS, 10 PATTERN EACH, 160 PATTERN TOTAL
- 15V DC, 500 MA, TIP + CENTRAL ,POWER SUPPLY
»
