- Manufacturer: Elation Professional

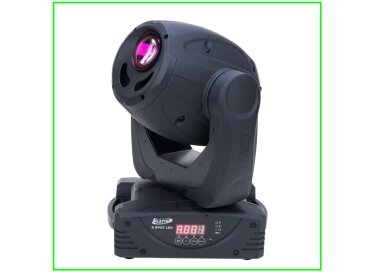

- Model: E Spot LED
- Category: Other Conventional Fixtures
- Added in our database on: 06/19/2010
- New 60W white LED source (6500°K)
- 50,000 hour rated LED source, 33000 Lux @ 1m, 15° beam angle
- 1 color wheel with total 8 colors + white
- 1 gobo wheel with 7 gobos, interchangeable (quickout)
- Gobo Size: 27mm outside, 22mm image diameter
- Rotating, indexing prism: 3-facet 5-facet & 3D glass
- Motor driven focus from near to far
- Maximum Pan-movement 630° or 540°/ 16 bit
- Maximum Tilt-movement 265° / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- 3-digit LED Display
- 14 DMX channels USITT DMX-512 (16-bit resolution)
- Other DMX modes available
- DMX, stand-alone, master/slave, sound activated mode
- Fan cooled - fans regulated by automatic
- 1 x 1/4 turn fastening Omega Clamps
- Power consumption: 167W
- Voltage: AC 100V ~ 240V 50/60Hz
- Dimensions (LxWxH): 435x204x301mm (Head up)
- Weight: 10,5 kg
