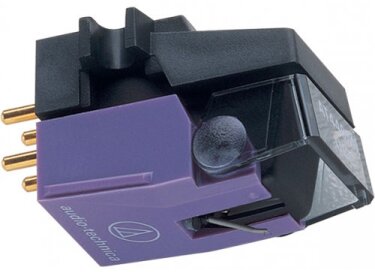

Audio-Technica AT440MLa

• Manufacturer: Audio-Technica
• Model: AT440MLa
• Category: Phono Cartridges
• Added in our database on: 12/28/2013

Audio-Technica's Vector-Aligned Dual Magnet design, which uses two tiny magnets to achieve ideal geometry and low magnet mass, for excellent channel separation and extended frequency response.

The Audio-Technica AT440MLa MicroLine stylus produces better high frequency response with less wear and distortion than elliptical or conventional linear contact styli. The small curving rate of the MicroLine stylus enables it to track and playback the inner part of the record groove that other styli can hardly maintain. Also the curving rate of the MicroLine stylus does not change until the stylus is almost worn unlike that of conventional styli which increases as they are used. Accordingly, the MicroLine stylus has a much longer average playing life. It plays better, longer.

The Audio-Technica AT440MLa's Paratoroidal Signal Generator is composed of a unified, laminated coil core wound with a single piece of wire eliminating internal mechanical and electrical connections, minimizing magnetic losses and assuring better signal transfer. The coil incorporates PCOCC wire (Pure Copper by Ohno Continuous Casting), a special copper with virtually no transverse crystal barriers to impede signal transmission, for distortion-free sound. PCOCC is used in the construction of its coil and lead wires.

Audio-Technica AT440MLa Phono Cartridge Specifications :

- Output voltage @ 1kHz,5cm/sec.: 4mV
- Channel balance @ 1kHz: 0.8dB
- Channel separation @ 1kHz: 27dB
- Frequency response: 20Hz-20kHz
- Dynamic compliance (x10-6 cm/dyne): 10
- Static compliance (x10-6 cm/dyne): 40
- Stylus type: 0.12 mil nude square micro-linear
- Tracking force range: 1.0 - 1.8 g
- Tracking force recommended: 1.4 g (14 mN)
- Vertical tracking angle: 20°
- Coil impedance @ 1kHz: 3.2k ohm
- Coil inductance @ 1kHz: 490 mH
- Recommended load resistance: 47k ohms
- Color: Black/Violet
- Weight: 6.5 g
- Dimensions: 17.3l x 16w x 28h
- Stylus replacement: Audio-Technica ATN440MLA
- Accessories included: Screwdriver, screws, nuts, headshell wires
