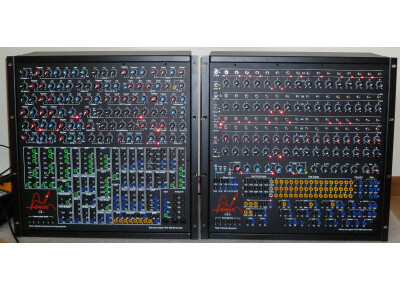

Fénix III (Sequencer)
1 LFO board
3 Sequencer boards
1 CV expander boards (with potmeters)
3 gate expander 1 boards (with switches)
1 gate expander 2 boards (with switches)
1 Banana to 3,5 mm minijack connectors
LFO board has a LFO with divided outputs, delayed outputs, duplets and triplet’s outputs, attenuators, gate buffers, glide modules, quantizer, gate to S-trigger and a midi sync input (you can choose the internal clock or the midi sync).
Sequencer board is a standalone 16 steps sequencer without LFO. This board is internal connected to the main LFO and the Run/Stop and Reset input. Each sequencer board can be used as a standalone 16 step sequencer when using an externe clock. This board has control inputs (like clock, step length, mute, Run, CV to step). These inputs overrules the internal connected functions and CV Outputs with a CV input. Internal is a skip function available controlled by the switch expander. The direction of the sequencer be set normal, random and left/right.
Expander boards are connected to a sequencer board. The expander board will run sync with the sequencer board. There are 3 types of expander boards.
A CV expander board. This add an extra 16 CV step sequencer (can also be set at 2 x 8 steps).
A gate expander 1 board with 16 switches and 2 gate outputs and 1 PW input. This board can also be used for the skip function of the sequencer board)
A gate expander 2 board with 16 switches and 1 gate outputs and 1 PW input and 1 mute input.
Other names: fenixiii, fenix 3, fenix3
