Vixid VJX16-4 tech. sheet

  • Manufacturer: Vixid
  • Model: VJX16-4
  • Category: VJ Equipment
  • Added in our database on: 02/14/2007

We have no technical specifications for this product
but your help will be much welcomed

»

Vixid VJX16-4 user reviews

Average Score:5.0( 5/5 based on 2 reviews )
 1 user review50 %
Value For Money :
DukePack02/27/2007

DukePack's review (This content has been automatically translated from French)

Vixid VJX16-4
This mix really revolutionary air!
It's franais more.
Is what can connatre its price?
»
xrayconcept03/26/2008

xrayconcept's review (This content has been automatically translated from French)

Vixid VJX16-4
We use it in beta testing ( http://www.vixid.com/index.php?m=23&dev=&lang=en&rub=7&ssrub= ) since 2006 (jointly with Coldcut ( http://www.coldcut.net/coldcut/coldcut.php ) - Sound Vision ( http://www.visionsonore.net/ ) - Digital BORAX ( http://www.digitalborax.org/ ) - Lichtfront - No Brain ( https://www.dailymotion.com/kosmos4000 ) etc ...)
Weaknesses: None
Strengths:
0 - lgret and compactness (size of a laptop)

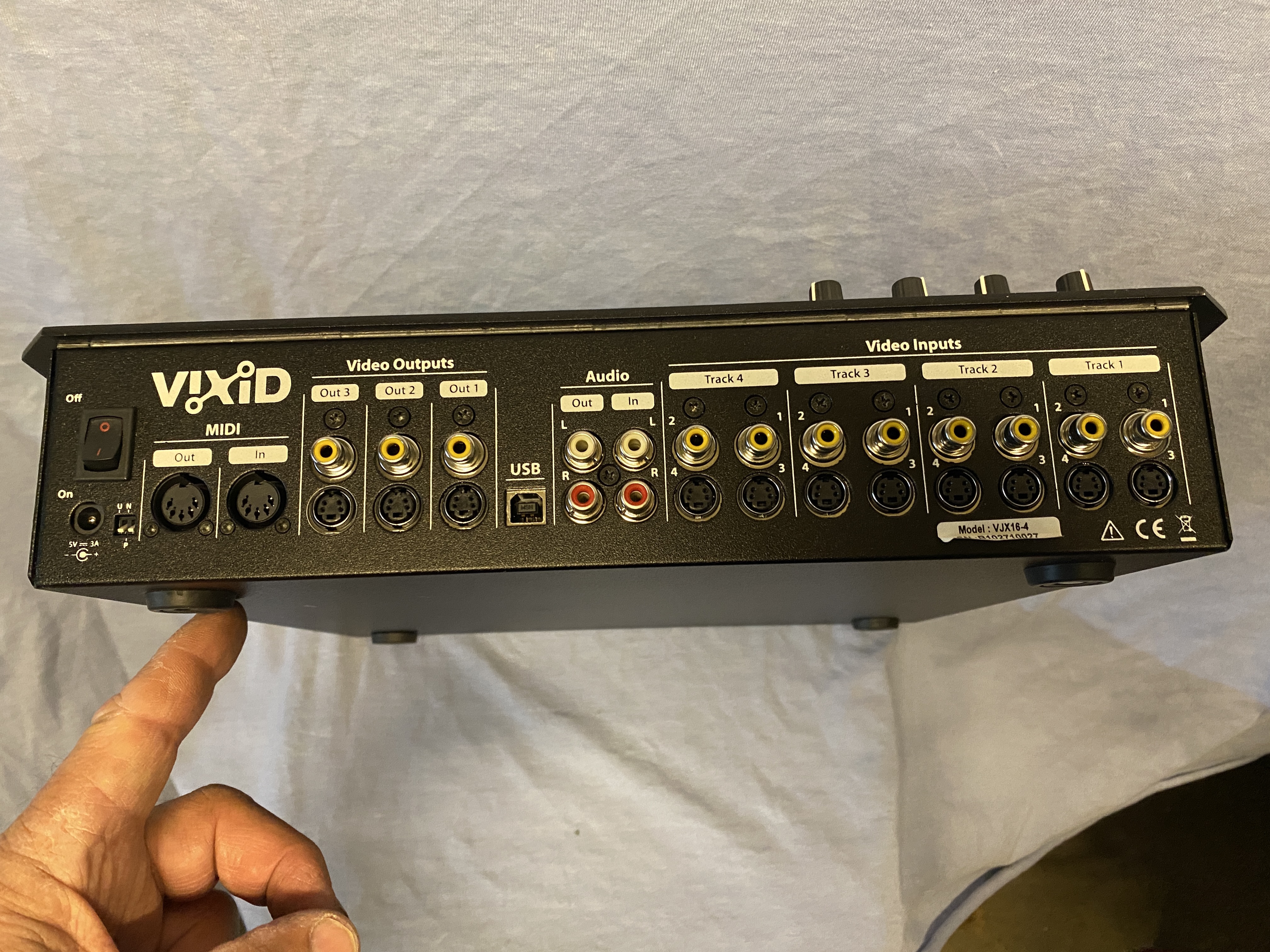

1 to 16 inputs - 6 outputs doublables, thanks to the adjustable gain, so up to 12 clicks on a single table without amplifier / distributor aditional, plus three channels (images) Different.

2 - On each layer: Fixed RGB (RGB Balance) possibility of gains and color settings for each layer prcises trs

3 to 4 layers simultaneously individually adjustable in transparency
on other tables, a single layer on two at a time or fade mode scanning (mode A / B)

4-14 compositing mode on each layer which provides opportunities trs creatives
These are the same features that blend in Photoshop or Final Cut Pro for example
The Vixid VJx 16-4 is the only table that allows this function

5 - Between interactive audio (rhythmic analysis) with sophisticated SET (attack delay sensitivity) to interact with the effect functions vidos
Other tables: this function does not exist

6 to 144 user presets that can be prt instantanment
Other tables: no preset forcing a redo rglages every time.

7 - new generation of logic circuits a trs high speed without the processor, with a time of raction less than 5 millionths of a second.
On the other existing tables latency to treatment with processor will up 1 / 2 second which is visible when trs broadcast live via cameras.

8 - The clipping of high quality trs.
The VJx 16-4 3 offers Luma Chroma Keyer mode and Color.
4 keyer settings are available. (Tolerance, sensitivity gain, beach ...)
Other tables: two types of keyers - Luma and Chroma CONTRL with one possible (range)
8 - The Battle mode (2 +2) which allows two teams of visuals to play on the same table at the same time on two groups of notches.
Other tables: This feature does not exist

9 - VJX16-4 has features MIDI In / Out. You can control in real time lensemble paramtres of the mixer with a keyboard or MIDI Controller, or your audio squenceur prfr. Some software intgrent video features directly via MIDI CONTRL, you can control your software with the VJX16-4 or the reverse control a video mixing software and a table from Vixid of a single MIDI controller. Coldcut uses this function set a background for their audio-video
Other tables: this function is not possible

10 - The bandwidth of the video signal is much larger than uncompressed video signal and has a 4:4:4:4 internal processing that maintains a maximum color depth and precision even on a composite signal.
on the tables of the same category: the signal is related to the maximum in 4:2:2 (without treatment of the alpha channel)

The quality of the image is such that we used Table 16-4 VIXID VJx production to record all the video of the new DVD RadioBomb which was released March 25, 2008

11 - The price: less than 3000 euros compared with the price of Edirol LVS - 400 euros in 1800 from 2 to 4 output a single layer at a time no blend, trs means of keyers etc ... etc ...
or Edirol V8 is a V4 with 8 inputs and 2 outputs with the same remarks as for the LVS-400

Finally a comparative ( http://www.vjxray.com/article-17785808.html ) basis between CHARACTERISTICS of the new V8 and the table VIXID VJx 16-4

Some example sets of video mixes in real time with the beast:
VIDEO 1 ( https://www.dailymotion.com/DKP-xrayconcept/video/x2wsxd_crystal-distortion-visual-distort_creation )
VIDEO 2 ( https://www.dailymotion.com/dkp-xrayconcept/video/x3z4il_pixels-festivalstrasbourg-291207-pa_creation )

It has long used an Edirol V4, but the quality is so infrieure we have abandoned ...

The report price is excellent quality portable tables Broadcast Panasonic or Sony equivalents with much less possibilities are sold to more Euro 8000.
Table Vixid rvolutionne carrment Video mix and it is clear that all other products become deprecated equivalent.
This table that there really MRIT INTERESTED and that investment has to be able to work prtendre visual quality for both concerts for the event-driven solution prsentation lg re and ultra mobile
»

Vixid VJX16-4 images

  • Vixid VJX16-4
  • Vixid VJX16-4
  • Vixid VJX16-4
  • Vixid VJX16-4
