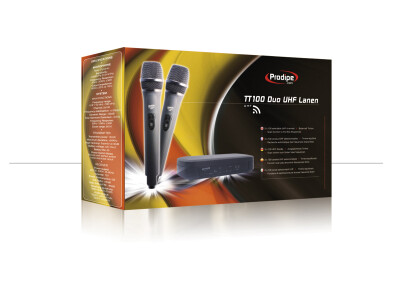

Prodipe TT100 Duo UHF Lanen

• Manufacturer: Prodipe
• Model: TT100 Duo UHF Lanen
• Category: Wireless systems
• Added in our database on: 03/14/2014

UHF system with 2 x 100 frequencies

“It’s really important that a mic is easy to handle and capable of adapting to any type of situation. I’ve perfected a UHF system which offers 100 frequencies. It also finds and sets available frequencies automatically. It’s straightforward, it’s reliable and it gives an excellent balanced voice performance for professional use.”

Ludovic Lanen

• UHF system with 2 x 100 frequencies.

• Automatically finds and sets available frequencies.

• Allows simultaneous use of 4 receivers = 8 mics.

• Balanced timbre.

Main Function

• Frequency Range: UHF 710-786 MHz
• Channel: 2 x 100
• Frequency Stabilisation: <±30ppm
• Dynamic Range: >90dB
• Total Harmonic Distortion: <0.5%
• Cover Range: 60M

Transmitter

• Transmitter power: 10mW
• Modulation: FM
• Maximum Deviation: ±50KHz
• High harmonic: more than 40dB
• Battery Voltage: AA1.5V×2

Receiver

• Power Supply: AC100~240V/ 45-60Hz
• External: 12V
• Power Consumption: 5W
• S/N Ratio: >90dB
• P/N or F/N Ratio: >80dB
• Receiving Sensitivity: 5dBu (SINAD=20dB)
• Audio Output : XLR: 0~±300mV

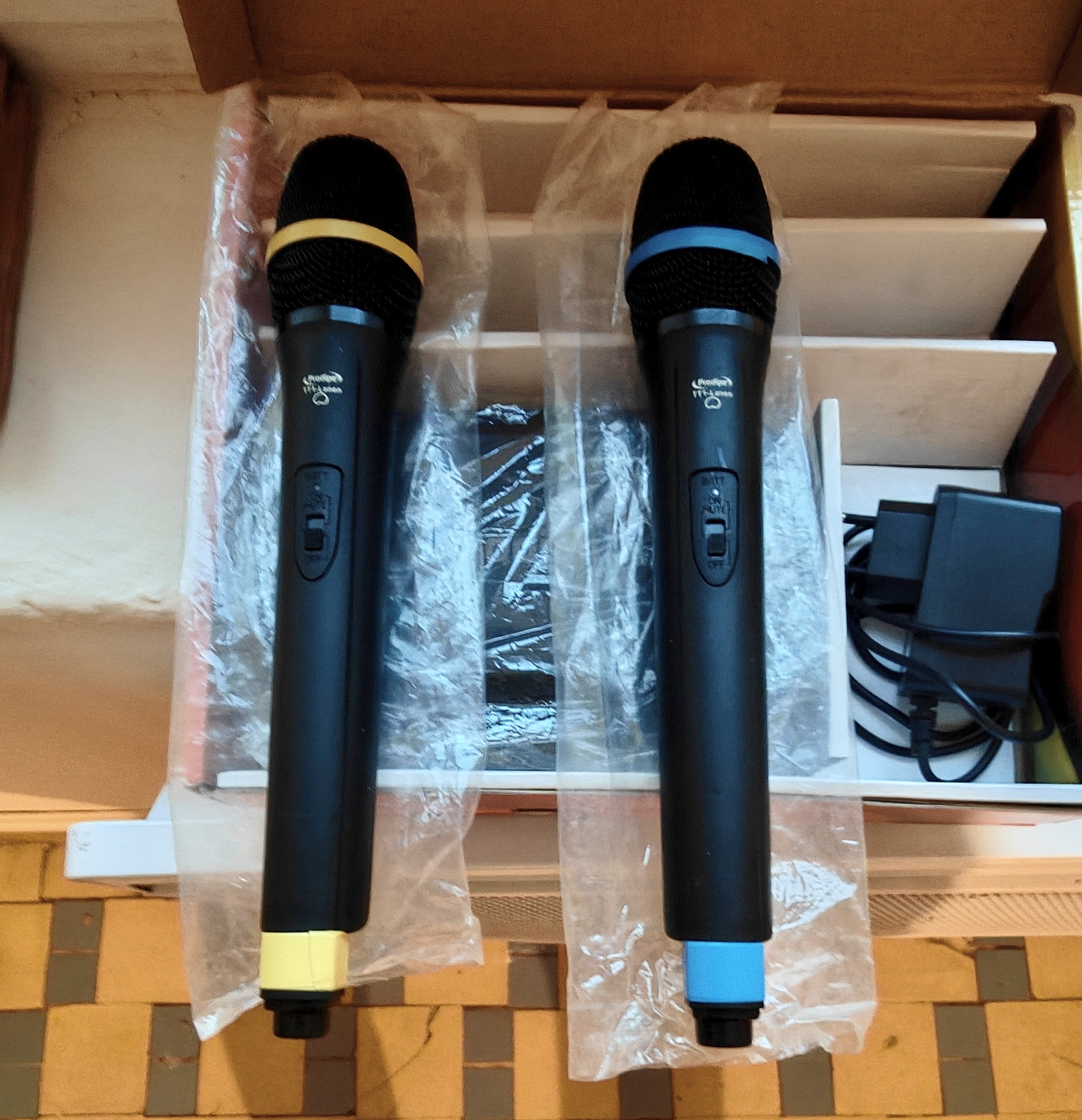

Microphone

• Type: dynamic – uni-directional
• Frequency response: 40Hz~20KHz ±3dB
• Sensitivity: -49dBv/Pa (2,2mv/Pa)
• Output impedance : 600Ω±30% at 1KHz
