Tech. sheet
- Manufacturer: Wharfedale

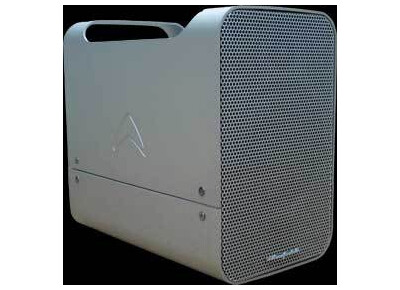

- Model: DS5A
- Category: Active Monitors
- Autres dénominations : ds5a, ds 5a, ds5 a
Features:
• Active 2 way near field studio reference monitor
• 5” (127mm) magnetically shielded KEVLAR Cone Woofer
• 1” (25mm) Soft Dome Tweeter
• 60W LF + 40W HF for bi-amplifier package for studio application
• 50Hz – 24kHz (+/-3dB)
• Input 1: XLR/1/4” Balanced Combo Jack
• Input 2: Unbalanced RCA Phono Jack
Features of the DS5A Active monitor
Frequency Response 50Hz-24kHz
Low Frequency Driver 5” (127mm) magnetically shielded KEVLAR Cone Woofer
High Frequency Driver 1” (25mm) Soft Dome Tweeter
Crossover frequency 2.0kHz
Input connectors Input 1: XLR/1/4” Balanced Combo Jack
Input 2: Unbalanced RCA Phono Jack
Output SPL (from peak power) 106dB
IEC weighted noise @ 1m
Low Frequency Power 60W
High Frequency Power 40W
Input sensitivity 0.775v RMS (0dBu)
Amplifier system distortion 0.1% @ 50W
Signal to noise ratio 100dB
Voltage operating range at:
230V setting 200V-250V AC
115V setting 100V- 130V AC
Power Consumption:
Idle 22W
Full output 130W
Finish Silver
Dimensions (HxWxD) 269 x 170 x 300mm
10.6 x 6.7 x 11.8 inches
Weight Net Each 7.6 kg / 16.7 lbs
User reviews
maxdakilla123they are very beefy, aluminum grille, although solid box ...
SOUNDS
the curve is not linear but great equalizing a little on the table with a reference CD that does pretty well ...
the sound is pretty accurate, can be a bit messy for my taste ... but there's something to work on prod amateurs without any problem, the mixes are always <span class="skimwords-unlinked">transportable.je</span> check my mixes on a 2.1 Altec Lansing has overplayed trend low and it remains consistent.
OVERALL OPINION
it's been about two months that I have and it changed my life ... my prods sounds...…
they are very beefy, aluminum grille, although solid box ...
SOUNDS
the curve is not linear but great equalizing a little on the table with a reference CD that does pretty well ...
the sound is pretty accurate, can be a bit messy for my taste ... but there's something to work on prod amateurs without any problem, the mixes are always <span class="skimwords-unlinked">transportable.je</span> check my mixes on a 2.1 Altec Lansing has overplayed trend low and it remains consistent.
OVERALL OPINION
it's been about two months that I have and it changed my life ... my prods sounds much better and that's exactly what I wanted!
these are my first monitor speakers so I can not compare ...
I like their look typed "mac pro" and the fact that the loudspeakers are well protected.
by witness against the blue LEDs are too strong, it hurts the eyes, I had to hide them under a piece of scotch.
the sound is pretty good overall but do ask for a miracle either.
I think I would do this choice, I have paid 190 euro, used in a more than adequate, so for me the value for money and very good.
