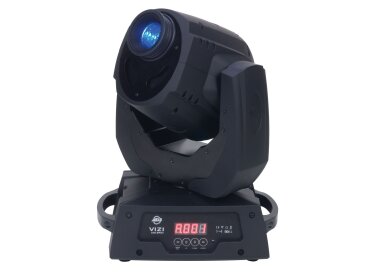

ADJ (American DJ) Vizi LED Spot
Images
1/2

ADJ (American DJ) Vizi LED Spot

Effect Projector (Non DMX) from ADJ (American DJ) .

Write a user review
Reviews
Price engine
Classified Ads
Forums

Annonces ADJ (American DJ) Vizi LED Spot

Send me a notification via email whenever there is a new ad on this product

News

Images

Videos

Tech. sheet

  • Manufacturer: ADJ (American DJ)
  • Model: Vizi LED Spot
  • Category: Effects Projectors (Non DMX)
  • Added in our database on: 02/05/2010

The ADJ Vizi LED Spot, Moving Head Fixture features a 22W high output, long life LED source (6500°K, 50,000 hr.) with a low power draw of 88W. This unit is compact & light weight and offers plenty of pro features such as: 8 Dichroic Colors + white (includes UV), 7 Rotating Gobos (Interchangeable) a Prism Wheel with 3-facet, 3D, 5-facet prisms, Gobo Indexing, Dimming (0-100%), Strobe effect, 12 DMX channels and a Gobo Scroll mode.


Specifications :

- High output DMX-512 Moving Head with 22W LED source
- RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
- 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
- 12 DMX channels
- Gobo scroll mode
- LED DMX 4-Button menu system
- 14-degree beam angle
- Auto X-Y repositioning
- 8 dichroic colors + white (includes UV)
- 7 rotating gobos + spot (interchangeable: 5x metal, 2x glass)
- Prism Wheel with macros: 3-facet prism, 3D prism, 5-facet prism
- Gobo Shake effect
- Gobo Indexing
- Gobo size: 27mm (22mm viewable gobo size)
- Independent gobo and color wheels
- Pan: 540-degree standard (630-degree optional)
- Tilt: 270-degree
- Shutter: Pulse effect; random strobe slow to fast
- Dimming: 0% - 100%
- Strobe effect
- Flicker-free operation
- Manual Focus
- Stepper motors with micro stepping
- Hanging bracket included
- 3-pin XLR In/Out
- LUX: 12950 @ 1M; 2480 @ 2M; 1231 @ 3M; 486 @ 5M
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Consumption: 88W max
- Lamp: 22W white LED source, 6500°K (50,000 hour rated)
- Dimensions (LxWxH): 303x214x419mm
- Weight: 9 kg
