Cerwin Vega DSM-200 tech. sheet

  • Manufacturer: Cerwin Vega
  • Model: DSM-200
  • Category: Full-Range PA Speaker Cabinets
  • Added in our database on: 09/14/2016

300w EIA

8ohm

frequency response 200-20.000Hz

111dB/1w/1m

2 parallel jack





The Dual Spruce Moose is a mid - treble horn loaded system with two M -162 compression drivers for the mid frequencies 200 Hz to 3 kHz and a TI-1 1 in throat compression driver with 90° x40° Controlled Coverage horn. The TI-1 is specified with a usable frequency range up to 20 kHz and features an aluminium diaphragm and surround with an edgewound copperclad aluminium wire voice coil on a titanium former. The M -162 driver is a 2 in compression driver with 41/2 in nodally driven phenolic dome, 4:1 transformation ratio, stepped pole piece and front plate together with an aluminium flux stabilising ring. The design is said to result in high efficiency, better bandwidth and considerably lower distortion compared to comparable 2 in drivers. Sensitivity in the mid range is 111 dB /1 W/1 m which Cerwin -Vega claim offers superior performance over multiple cone midbass systems. The two M -162 units feed a single Controlled Coverage horn via a 90° bend midway through the flare, this bent horn design allowing a 3 ft path length for a depth of 17 in. The DSM -200 has an EIA power handling capacity of 300 W and is intended for use with Cerwin -Vega L-36 bass horns.



»

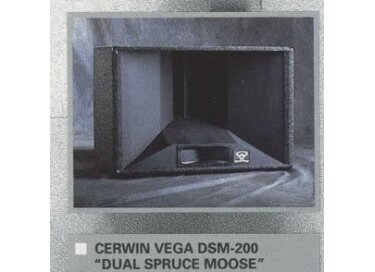

Cerwin Vega DSM-200 images
