dbx 1066
Images
1/281

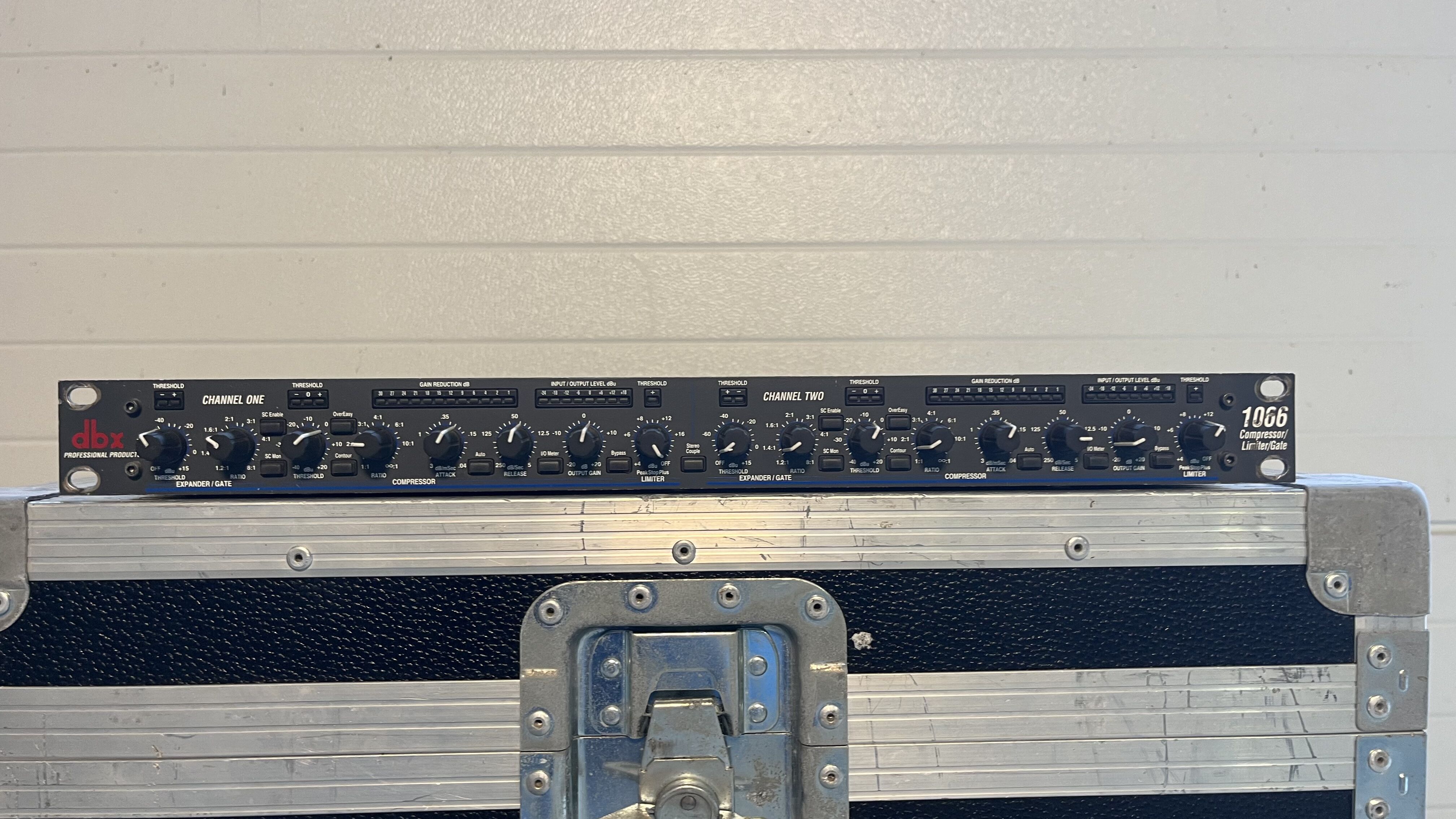

dbx 1066

Studio compressor from dbx

5 reviews
Price engine
Classified Ads
Forums

1066 classified ad

Alerte nouvelle annonce

Images

Reviews

3.6/5
(5 reviews)
60 %
(3 reviews)
40 %
(2 reviews)
Write a user review
MGR/f0rced0pini0nMGR/f0rced0pini0n

dbx 1066 Dual Compressor Limiter Gate

dbx 1066Published on 11/01/01 at 15:00
I bought this product from Guitar Center, new, for $400.

Has a counter switch that removes unwanted low frequency. Has an auto button that sets the attack and release on the commpressor.

It is dificult to find the settings you want on the commpressor, and doesnt sound good on bass.

The construction is very good on this peace of equipment while the quality is just the same as any other commpressor, in my opinion.

I think that it is pritty good but i think that it is a little highly priced for the quality sound that you get.

This review was originally published on http://www.musicgearreview.com
Read more
I bought this product from Guitar Center, new, for $400.

Has a counter switch that removes unwanted low frequency. Has an auto button that sets the attack and release on the commpressor.

It is dificult to find the settings you want on the commpressor, and doesnt sound good on bass.

The construction is very good on this peace of equipment while the quality is just the same as any other commpressor, in my opinion.

I think that it is pritty good but i think that it is a little highly priced for the quality sound that you get.

This review was originally published on http://www.musicgearreview.com
See less
»
S. DursonS. Durson

dbx 1066Published on 03/15/08 at 01:05
(This content has been automatically translated from French)
Gate / Compressor / limiter analog
So XLR connectors and jacks assymtriques or symtriques
+ Sidechain loop

USE

The config is like most other comp.
This is not facil WELL edit like any comp.
The manual is well and gives the same advice dition giving bases.

SOUND QUALITY

This is the high end of DBX, and rpute has not done nothing.
The comp and gate are excellent. I used some of the limit.
What I prefer: all
I dteste: nothing

NOTICE GLOBAL

I for one year. I put all the sauces.
The sound is the manufacturing quality is presents too!
It's not behringer knob that turns oval and fears that remains in the fingers.
For those who say that the gate can not hear...…
Read more
Gate / Compressor / limiter analog
So XLR connectors and jacks assymtriques or symtriques
+ Sidechain loop

USE

The config is like most other comp.
This is not facil WELL edit like any comp.
The manual is well and gives the same advice dition giving bases.

SOUND QUALITY

This is the high end of DBX, and rpute has not done nothing.
The comp and gate are excellent. I used some of the limit.
What I prefer: all
I dteste: nothing

NOTICE GLOBAL

I for one year. I put all the sauces.
The sound is the manufacturing quality is presents too!
It's not behringer knob that turns oval and fears that remains in the fingers.
For those who say that the gate can not hear the sound small spring, etc. (there is a volume button). Well yes, it's hard rgler correctly compressor ... hh.
Excellent machine, I probably do it again this choice.
See less
»
Anonymous

dbx 1066Published on 06/11/07 at 02:33
(This content has been automatically translated from French)
See below

USE

See below

SOUND QUALITY

- Which instruments do you use?
I use it mainly for compressing voice.
But it also happens to me to use it for others like the bass drum

NOTICE GLOBAL

- How long have you use it?
11 years
- What is the particular feature you like best and least?
Intuitive rglages and its compliance are its great qualities
- Have you tried many other models before acqurir?
No this is my first and I never renvendrai
- How do you report qualitprix?
Perfect
- With the exprience, you do again this choice ...?
Yes for sure …
Read more
See below

USE

See below

SOUND QUALITY

- Which instruments do you use?
I use it mainly for compressing voice.
But it also happens to me to use it for others like the bass drum

NOTICE GLOBAL

- How long have you use it?
11 years
- What is the particular feature you like best and least?
Intuitive rglages and its compliance are its great qualities
- Have you tried many other models before acqurir?
No this is my first and I never renvendrai
- How do you report qualitprix?
Perfect
- With the exprience, you do again this choice ...?
Yes for sure
See less
»
Joseph sardinJoseph sardin

dbx 1066Published on 03/08/05 at 14:53
(This content has been automatically translated from French)
The 1066 is a compressor, limiter, gate, expander 1U rack analogue.
I / O jack and XLR jack with sidechain in

UTILIZATION

Configuration very simple and intuitive.
The manual is sometimes little comprhensif in French (translation from English mdiocre). It is also not specially useful for someone who knows a little.

Rglage buttons are robust, have a good grip.

SOUND QUALITY

I use them for the bass drum and toms of the battery.
The effects are effective, good quality, and each has a great deal of rglages trs.
My prfr effect is the gate, at the sound reproduction.

OVERALL OPINION

It is a device trs good quality sturdy, quite heavy (2.3 kg).
Overall I am satisfied...…
Read more

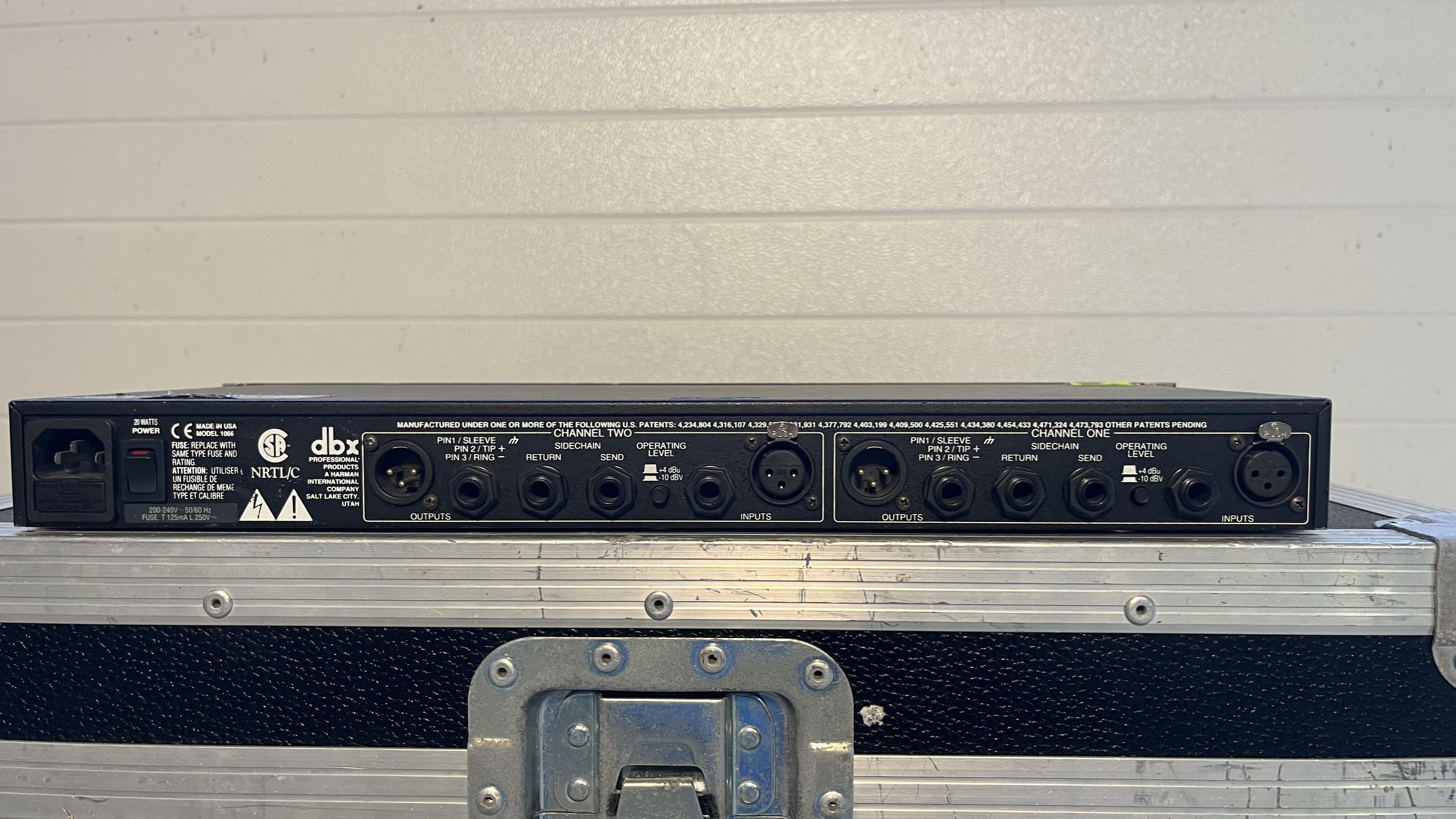

The 1066 is a compressor, limiter, gate, expander 1U rack analogue.
I / O jack and XLR jack with sidechain in

UTILIZATION

Configuration very simple and intuitive.
The manual is sometimes little comprhensif in French (translation from English mdiocre). It is also not specially useful for someone who knows a little.

Rglage buttons are robust, have a good grip.

SOUND QUALITY

I use them for the bass drum and toms of the battery.
The effects are effective, good quality, and each has a great deal of rglages trs.
My prfr effect is the gate, at the sound reproduction.

OVERALL OPINION

It is a device trs good quality sturdy, quite heavy (2.3 kg).
Overall I am satisfied with TRS. APRs have test other devices often less expensive, it is the only one who really got love me. Much more than a Behringer, but for quality sound and unrivaled manufacturing: report qualitprix trs good.
I buy a second without hsiter, ds that I ncessaire money.
See less
»

Tech. sheet

  • Manufacturer: dbx
  • Model: 1066
  • Category: Studio compressors
  • Added in our database on: 03/10/2005
Specifications
Input Connectors XLR and 1/4" TRS (Pin 2 and tip hot)
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced > 50 kOhm, unbalanced >25 kOhm
Max Input > +24 dBu balanced or unbalanced
CMRR Typically >50 dB at 1 kHz
Output Connectors XLR and 1/4" TRS (Pin 2 and tip hot)
Output Type Servo-balanced/unbalanced, RF filtered
Output Impedance Balanced 120 Ohm, unbalanced 60 Ohm
Max Output > +21 dBm balanced, > +20 dBm unbalanced
Sidechain Input Connector 1/4" Unbalanced (Tip-Sleeve)
Sidechain Input Type Unbalanced, RF filtered
Sidechain Impedance >10 kOhm
Sidechain Max Input Level >+24 dBu
Sidechain Output Connector 1/4" Balanced TRS (tip hot)
Sidechain Output Type Impedance balanced, RF filtered
Sidechain Output Impedance Balanced 2 kOhm, unbalanced 1 kOhm
Sidechain Max Output Level >+21 dBu balanced or unbalanced
Bandwidth 20 Hz to 20 kHz, +0/0.5 dB
Frequency Response 0.35 Hz to 90 kHz, +0/-3 dB
Noise < -95 dBu, unweighted, 22 kHz measurement bandwidth
Dynamic Range > 118dB, unweighted
THD+Noise 0.008% typical at +4 dBu (1 kHz unity gain), 0.08% typical at +20 dBu (1 kHz unity gain), < 0.1% any amount of compression up to 40 dB, 1 kHz
IMD < 0.1% SMPTE
Interchannel Crosstalk < -80 dB 20Hz to 20 kHz
Stereo Coupling True RMS Power Summing
Compressor Threshold Range -40 dBu to +20 dBu
Compressor Ratio 1:1 to infinity:1
Compressor Threshold Characteristic Selectable OverEasy® or hard knee
Compressor Attack/Release Characteristic AutoDynamic™
Compressor Attack/Release Modes Selectable Manual or Auto
Compressor Manual Attack Time Scalable program-dependent
Compressor Manual Release Time Scalable program-dependent
Compressor Auto Attack Time Program-dependent
Compressor Auto Release Time Program-dependent
Compressor Output Gain -20 to +20 dB
Limiter Threshold Range +4 dBu to +24 dBu (off)
Limiter Ratio infinity:1
Limiter Type PeakStopPlus® two-stage limiter
Limiter Stage 1 PeakStop® brickwall limiter
Limiter Stage 1 Attack Time Zero
Limiter Stage 1 Release Time Zero
Limiter Stage 2 Predictive intelligent program limiter
Limiter Stage 2 Attack Time Program-dependent
Limiter Stage 2 Release Time Program-dependent
Expander/Gate Threshold Range Off to +15dBu
Expander/Gate Ratio 1:1 to 30:1
Expander/Gate Attack Time < 100 µsec
Expander/Gate Release Time Program-dependent
SC Ext. Switch Routes the external sidechain input signal to the detector
SC Mon. Switch Routes the sidechain signal to the output, interrupting the normal audio
OverEasy® Switch Activates the OverEasy compression function
Countour Switch Activates the frequency-dependent detector function
Auto Switch Activates automatic program-dependent attack and release times, disabling the manual Attack and Release controls
I/O Meter Switch Switches between monitoring input and output levels on the Input/Output Level meter
Bypass Switch Activates the direct input-to-output hard-wire relay bypass. Relay automatically hard-wire bypasses unit at power-down and provides a power-on delay of 1.5 sec.
Operating Level Switch (rear panel) Switches the nominal operating level between -10 dBV and +4 dBu simultaneoulsy for both input and output levels
ST Link Switch Link both channels for stereo operation. Channel One becomes the master
Gain Reduction Meter 12-segment LED bar graph at 1, 2, 4, 6, 9, 12, 15, 18, 21, 24, 27 and 30 dB
I/O Meter 8-segment LED bar graph at -24, -18, -12, -6, 0, +6, +12, and +18 dBu
Compressor Threshold Meter 3-segment LED bar graph at Below (-), OverEasy and Above (+)
Expander/Gate Threshold Meter 2-segment LED bar graph at Below (-) and Above (+)
Limiter Threshold Meter 1 LED to indicate PeakStopPlus™ limiting
Function Switches LED indicator for each front-panel switch
Output Transformer Options Jensen® JT-123-dbx or JT-11-dbx, BCI RE-123-dbx or RE-11-dbx
Operating Voltage 100-120 VAC 50/60 Hz 200-240 VAC 50/60 Hz
Power Consumption 20 Watts
Fuse 100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T
Power Connector IEC receptacle
Dimensions 1.75"Hx19"Wx9"D (4.4cmx48.3cmx20.1cm)
Unit Weight 5.1 lbs. (2.3 kg)
Shipping Weight 7.5 lbs. (3.4 kg)
»
