Apex Audio dBDI-2
Images
1/1

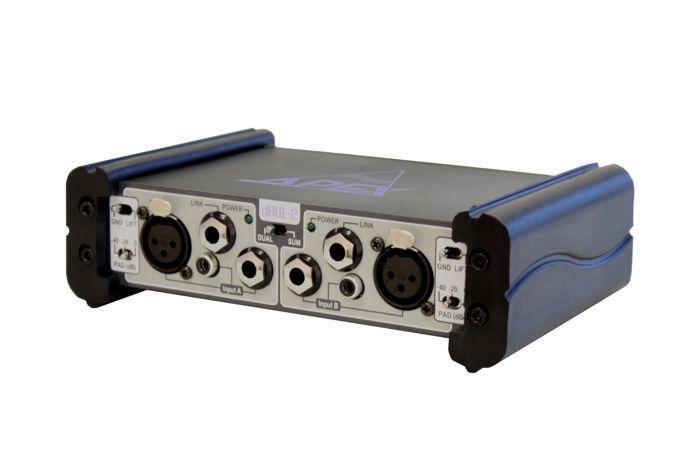

Apex Audio dBDI-2

DI from Apex Audio .

1 review
Price engine
Classified Ads
Forums

Annonces Apex Audio dBDI-2

Send me a notification via email whenever there is a new ad on this product

Reviews

Average Score:
(5/5 based on 1 review)
1 review
100 %
Write a user review

" Excellent 2-channel active DI"

Apex Audio dBDI-2Published on 06/04/11 at 05:21
(This content has been automatically translated from French)
It is an active DI (but with output transformer) 2 channels (stereo or dual mono).

Connectors classic
Jack 1 / 4 "Thru IN +, IN but also XLR RCA (HiFi) IN
XLR OUT
Ground lift, pad 0dB/-20dB/-40dB

Alim by AC adapter (12V) or 48V Phantom
LED indicating the presence of the power supply on each input.

Switch to the summation of two input channels.
It allows you to build a mono signal or 2 signals but also to use the DI for a mono signal and the splitter to 2 mixers (front and back, for example).

Small note: I have not tried, but from the diagram, the DI could also serve as a simple format converter cable: The signal that enters the Jack 1 / 4 "should be released as the......
Read more
It is an active DI (but with output transformer) 2 channels (stereo or dual mono).

Connectors classic
Jack 1 / 4 "Thru IN +, IN but also XLR RCA (HiFi) IN
XLR OUT
Ground lift, pad 0dB/-20dB/-40dB

Alim by AC adapter (12V) or 48V Phantom
LED indicating the presence of the power supply on each input.

Switch to the summation of two input channels.
It allows you to build a mono signal or 2 signals but also to use the DI for a mono signal and the splitter to 2 mixers (front and back, for example).

Small note: I have not tried, but from the diagram, the DI could also serve as a simple format converter cable: The signal that enters the Jack 1 / 4 "should be released as the CAR as it is .. . even without power supply. And vice versa. As for the XLR IN (unbalanced) ... Well, okay, that's a bit expensive for a cable ... But sometimes it's just a cable that is missing PS ... So much to know, since it's there.

Well casing and solid non-slip pads. Stackable.
Opportunity to put a cable lock like a laptop ...

UTILIZATION

Ben's simple, yes. But complete.
Manual clear and complete.

SOUND QUALITY

I put in parallel with my Radial J48, which is known as a benchmark for active DI box: Clear, highly linear even at very low frequency and very low distortion, even at insane levels, with an active bass coming out high.

Well if you hear a difference, not me!
For me, it's just excellent!

(By comparison, between J48 and BSS133, there is a difference, for example ... And I like the J48.)

OVERALL OPINION

I use it much but it is convenient to have one just in case.

It's a great DI.
And not very expensive for the quality (if you do not forget that it is stereo).
Less expensive than 2 J48, anyway.

I would do this choice without hesitation.

Now I have one, I have personally not need 2.
If I add an ID, it will be different, which adds something like a Radial Duplex. Or Avalon U5 (But she is NOT transparent. And this is precisely what is asked.)

To return to APEX is really one of the best I've used DI.
See less
»

Tech. sheet

  • Manufacturer: Apex Audio
  • Model: dBDI-2
  • Category: DIs
  • Added in our database on: 03/10/2010

We have no technical specifications for this product
but your help will be much welcomed

»

Other categories in Pre-amplification

Other names: dbdi 2, dbdi2, d bdi 2
