8pistes and 128 virtual tracks numriques
Trs good connections!
8 / V-Tracks: 2 banks of 64 V-Tracks (8 Tracks @ 8 V-Tracks 2 @ Banks) * Up to 8 tracks simultaneously Can Be Recorded and up to 8 tracks simultaneously Can Be Played back.
Maximum Usable Disk Capacity
32 gigabytes: 1 gigabyte (capacity) @ 4 (Score) @ 8 (Disk Drive)
VSR (24-bit, 8-track), MAS (Mastering), MT1 (Multitrack 1),
MT2 (Multitrack 2), LIV (Live), CDR
A / DD / A Conversion
A / D: 24-bit, 64 times oversampling / DA: 24-bit, 128 times oversampling
48.0 kHz, 44.1 kHz, 32.0 kHz
Sample rate * Can Be Adjusted around 21.9650.48 kHz (maximum) by using vari-pitch function.
48.0 kHz: 20 HZ22 kHz (+0.2 dB dB/-0.2)
44.1 kHz: 20 HZ20 kHz (+0.2 dB dB/-0.2)
32.0 kHz: 20 Hz14 kHz (+0.2 dB dB/-0.2)
Nominal Input Level (0 dBu = 0,775 V rms)
Input A, B (Front Panel): -50 to +4 dBu / Input 1-8 (Rear Panel): 0 dBu
Nominal Output Level
Master Out L, R, AUX A, B, FX1, R, FX2, R: 0 dBu
SCSI: DB-25 type / Digital I / O: Coaxial, Optical (conforms to S / P DIF) / R-BUS: DB-25 type
70.6 X 24.5 mm, LCD (with backlit)

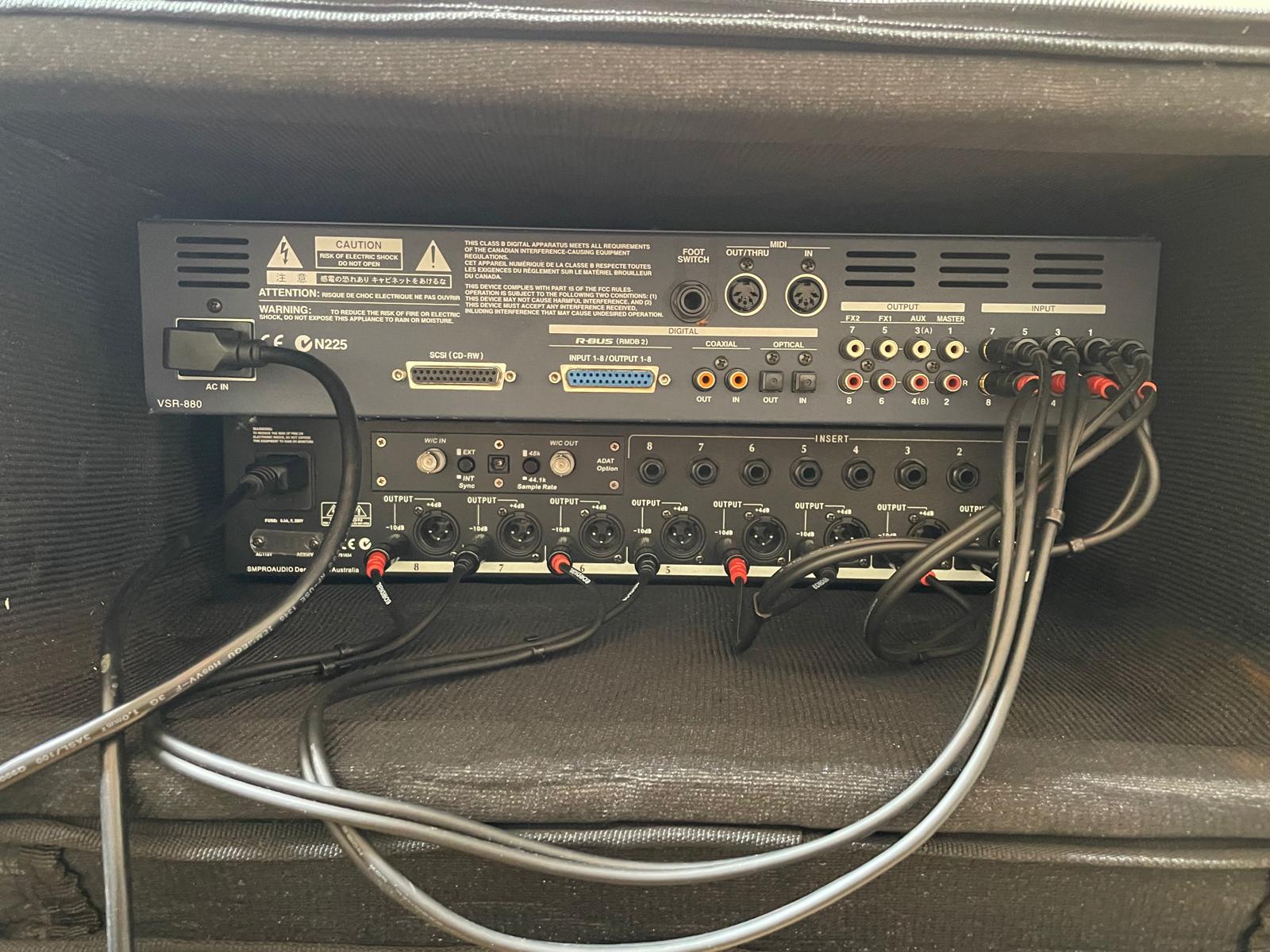

SCSI Connector (DB-25 type), R-BUS (DB-25 type), MIDI Connectors (IN, OUT / THRU), Input jacks A, B (1 / 4 inch phone type, TRS balanced) / Input Jack 1 - 8 (RCA type unbalanced) Digital In Connectors (Coaxial type Optical type) Digital Out Connectors (Coaxial type Optical type) Headphones jack (Stereo 1 / 4 inch phone type), Master Out L, R jacks (RCA type ), TO A, B jack (RCA type), FX1, R jacks (RCA type) / FX2 L, R jacks (RCA type) \
the use of this device is quite simple, the instructions explicitly trs.
I record the drums, guitars, bass and synths in 24bits/48khz with excellent dynamics and an outstanding sound quality!
It's been four years since I use it in sync with a G4 and a table Soundcraft 16/8/2 and never crash! This is a great 8-track studios all in one Numriques!
We can qualiser and mix with! I think I still use trs trs long!
