MD 1708 classified ad
Alerte nouvelle annonceImages
Reviews
4.5/5(2 reviews)
50 %
50 %
Write a user review
George Moore IIINew in Box. Took me hours to figure out the wiring.
Published on 09/28/16 at 00:06Thank god it came with a cable.
Wiring is just like TS to XLR cable wiring:
XLR pins 1+3 and joined together; which are the shield and pin 1 on the mic side. The shield doesn't have a pin on the mic side, it's soldered to the metal tab. Don't lose the little screw, as it makes a solid connection between the shielding cable and the body of the mic.
XLR pin 2 is either pin 2 or 3 on the mic side (low-z or high-z connections).
I tried both low-z and high-z. Low-z setting is 200 ohms and, at least for me, requires a cloud lifter gain booster for my mixers (which I don't have). So mine is set for high-z.
I love the sound. Focuses on mids and highs; in my opinion great for live shows as...…
Wiring is just like TS to XLR cable wiring:
XLR pins 1+3 and joined together; which are the shield and pin 1 on the mic side. The shield doesn't have a pin on the mic side, it's soldered to the metal tab. Don't lose the little screw, as it makes a solid connection between the shielding cable and the body of the mic.
XLR pin 2 is either pin 2 or 3 on the mic side (low-z or high-z connections).
I tried both low-z and high-z. Low-z setting is 200 ohms and, at least for me, requires a cloud lifter gain booster for my mixers (which I don't have). So mine is set for high-z.
I love the sound. Focuses on mids and highs; in my opinion great for live shows as...…
Read more
Thank god it came with a cable.
Wiring is just like TS to XLR cable wiring:
XLR pins 1+3 and joined together; which are the shield and pin 1 on the mic side. The shield doesn't have a pin on the mic side, it's soldered to the metal tab. Don't lose the little screw, as it makes a solid connection between the shielding cable and the body of the mic.
XLR pin 2 is either pin 2 or 3 on the mic side (low-z or high-z connections).
I tried both low-z and high-z. Low-z setting is 200 ohms and, at least for me, requires a cloud lifter gain booster for my mixers (which I don't have). So mine is set for high-z.
I love the sound. Focuses on mids and highs; in my opinion great for live shows as most stage mics are SM-58s which have always been more bass friendly. Very punchy for live shows.
I think this mic was built for broadcasting. It's hard to tell as there is zero info on this mic. This is quickly turning into my favorite mic for MCing on stage, singing, and podcasting.
Wiring is just like TS to XLR cable wiring:
XLR pins 1+3 and joined together; which are the shield and pin 1 on the mic side. The shield doesn't have a pin on the mic side, it's soldered to the metal tab. Don't lose the little screw, as it makes a solid connection between the shielding cable and the body of the mic.
XLR pin 2 is either pin 2 or 3 on the mic side (low-z or high-z connections).
I tried both low-z and high-z. Low-z setting is 200 ohms and, at least for me, requires a cloud lifter gain booster for my mixers (which I don't have). So mine is set for high-z.
I love the sound. Focuses on mids and highs; in my opinion great for live shows as most stage mics are SM-58s which have always been more bass friendly. Very punchy for live shows.
I think this mic was built for broadcasting. It's hard to tell as there is zero info on this mic. This is quickly turning into my favorite mic for MCing on stage, singing, and podcasting.
See less
00
»
pulvoniumPublished on 05/16/11 at 12:26 (This content has been automatically translated from French)
Micro inherited a family member. Probably quite old saw the connection nini-din screw which it is equipped.
Given the quality and robustness of the stuff, it would cost the sweet in his time.
Nice look.
Its a bit old, it gives me a bit of a voice as if I was talking to an old radio.
OVERALL OPINION
It was above all a sentimental value, and look out of the ordinary. That's why I like him on stage ...
Given the quality and robustness of the stuff, it would cost the sweet in his time.
Nice look.
Its a bit old, it gives me a bit of a voice as if I was talking to an old radio.
OVERALL OPINION
It was above all a sentimental value, and look out of the ordinary. That's why I like him on stage ...
40
»

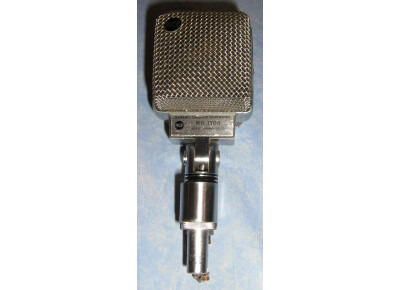

Tech. sheet
- Manufacturer: RCF
- Model: MD 1708
- Category: Dynamic Microphones
- Added in our database on: 08/19/2010
Dual Impedance (200 and 30,000 ohm)
Polar Curve: cardiod
Impedance 200-30,000
Sensitivity at 1000Hz (200 ohm ) .018mv/microbar
Sensitivity at 1000Hz (30,000 ohm) 1.3 mvv/microbar
Frequency response 50-15,000 cps
Dimensions 2 7/16" x 2" 43/65 x 5 5/16"
Weight 21 oz
»
