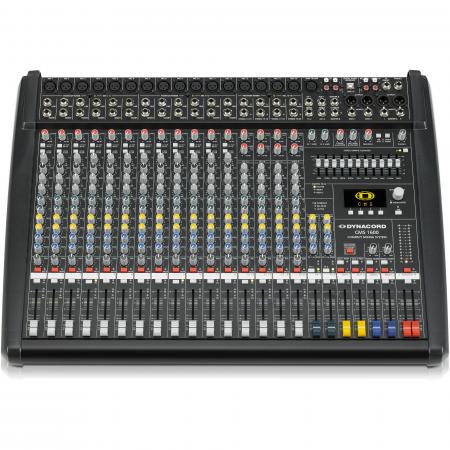

Dynacord CMS 1600-3

The 1600-3 Dynacord CMS home offers:

- 12 Mic / Line channels online + 4 Mic / Stereo, 6 x AUX stereo Effects Dual 24-bit, USB Audio Interface

- MIC / LINE input channels
- The XLR microphone input is equipped with a high quality discrete preamp. Ultra-low noise,
- The + 48V phantom power for microphones can be put into groups of six.
- The input line and insertion channels are implemented as jacks.
- The gain can be controlled in the range of 0 to 60 dB.
- The switchable low-cut filter (80 Hz, 18 dB / Oct) is used to remove low frequency noise.

  A very typical characteristic of DYNACORD is asymmetrical Voicing Filter by means of which, if desired, the voice can be strongly emphasized in the mixture.

- Stereo MIC / LINE 4 input channels
- Stereo Equalizer 11-band
- USB 2.0 DIGITAL AUDIO 4 in / out

The USB 2.0 port serves as a digital audio interface between the CMS3 and a PC or Mac. Four channels can be transmitted in both directions simultaneously. This interface can be used either for the input of audio signals (eg for playback or interval music) or for livestock or recording studio applications. It is configured by selecting the appropriate setting in the menu.

To use the CMS3 with a PC or Mac, a free Cubase LE license as well as the necessary USB drivers are included free of charge on the supplied DVD.
