Tech. sheet
- Manufacturer: Trinnov Audio

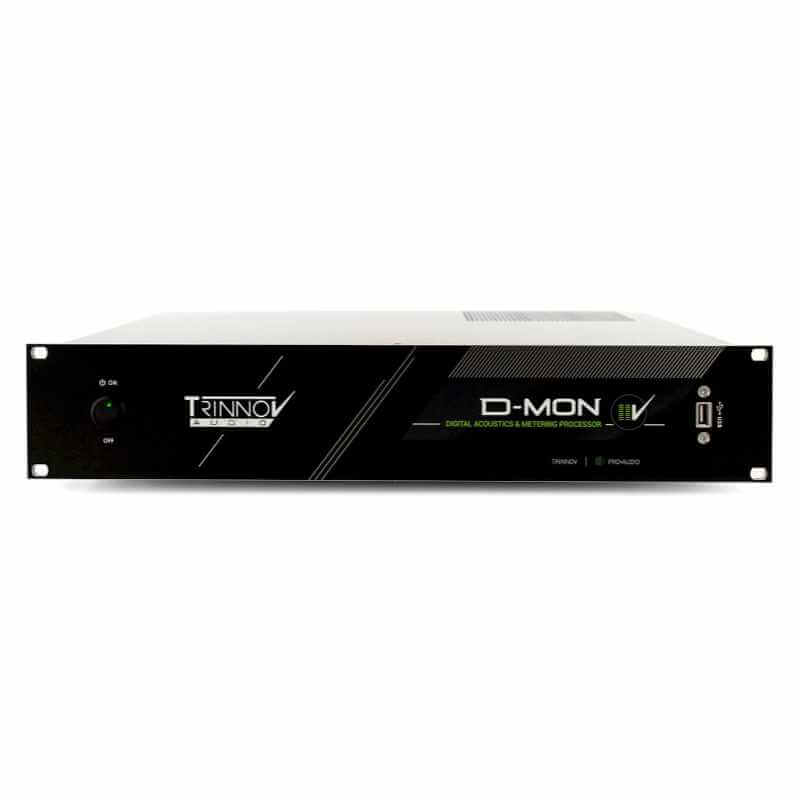

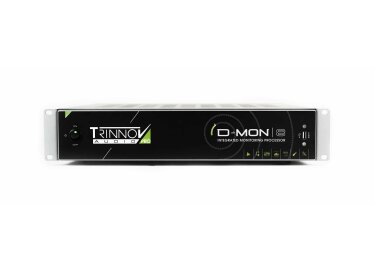

- Model: D-Mon
- Category: Monitor Controllers
- Other names:dmon, dmon8, d mon8, dmon 8, dmon6, dmon 6, dmon4, dmon 4
• Full-featured monitoring, including the Optimizer room correction algorithm (8 channels)
• Full input and output routing matrix
• A/D, D/A and D/D converters
• Fully assignable and configurable control functions, such as Main, Cues, Alt, Talk-Back, Listen-Back, Headphones and more
• Compatible with the Avid EUCON protocol consoles (Avid Artist, S3, S5, S6…)
• X-Mon interface for the Avid D-Command and D-Control consoles (Icon Series)
• Built-in 18x16 mixer
• Analog and digital inserts
• Audio resolution up to 24-bit / 192 kHz
• 64-bit floating internal processing

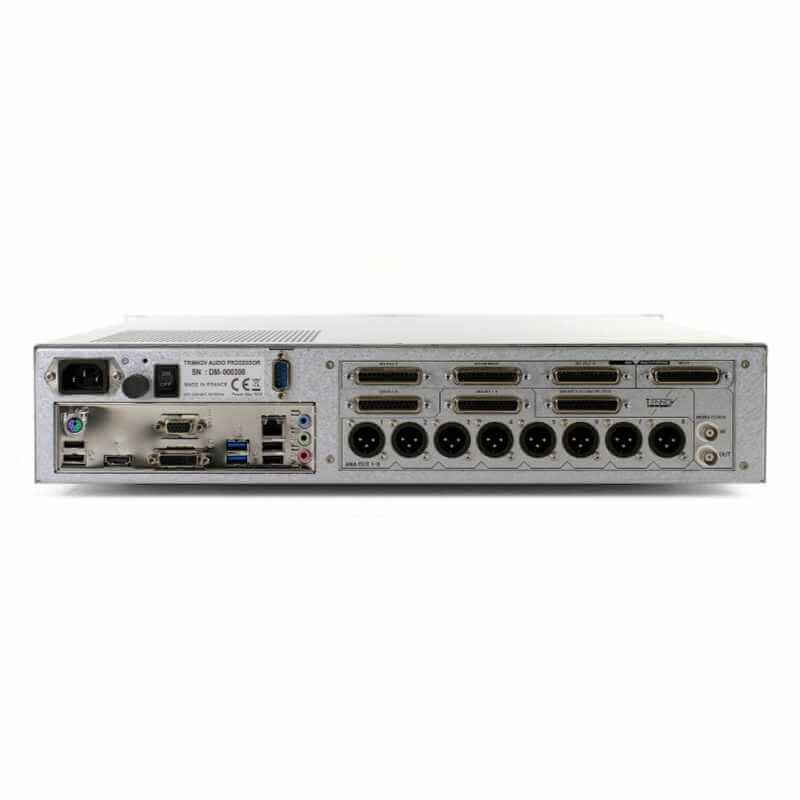

• 16 Digital I/Os on D-Sub 25
• 8 line-level analog inputs
• 16 line-level analog outputs
8 Digital inserts (D-Sub 25)
• Talk-Back In : 1+1 (phantom power)
• Listen-Back In: 1+1 (phantom power)
• BNC Word Clock I/O
• GPIOS: 2 in / 1 out (footswitch, remote commands)
