PR8 E, Solid-State Pre-amp from SM Pro Audio.


2 user reviews
Price engine
Classified Ads
Forums

SM Pro Audio PR8 E tech. sheet

  • Manufacturer: SM Pro Audio
  • Model: PR8 E
  • Category: Solid-State Pre-amps
  • Added in our database on: 07/02/2006

We have no technical specifications for this product
but your help will be much welcomed

»

SM Pro Audio PR8 E user reviews

Average Score:4.5( 4.5/5 based on 2 reviews )
 1 user review50 %
 1 user review50 %
ang3lou03/07/2007

ang3lou's review (This content has been automatically translated from French)

SM Pro Audio PR8 E
Here are the features of the site of the brand:
8 x discrete microphone preamplifier
Ultra-Wide Dynamic Range
Low-Noise Operating Levels
XLR / combo Inputs, TRS Outputs
48V Phantom Power per channel
Phase Reverse per channel
Gain control per channel
Per channel Peak Light

Mic Input:
Connector: XLR COMBO
Type: Balanced
Impedance: 4K7 Ohms
Low sensitivity: -60 dB
Peak input level: +9.5 dB
Phantom Power: +48 V (switchable)

Line Input:
Type: Balanced ¼ "on combo
Impedance: 47K
Low sensitivity:-35dB
Peak input level: +32 dB

Output:
Connector: 1 / 4 jack (balanced TRS)
Type: Balanced
Impedance: 600 Ohms
Peak output level: 23 dB
Frequency response:
20Hz-20KHz 0dB--0.5dB
Distortion: 0.005%
S / N:> 105dB
Crosstalk rejection:
> 120dB @ 1KHz,-20dB input
Max Gain: 58dB

UTILIZATION

The configuration could not be easier! Not need the manual ...
Out of the box connect, test, and off you go!

SOUND QUALITY

I use it to amplify my microphones and instruments before going into my sound card Terratec Phase88.
The sound is very clean and I see no breath!
I do not have to get the gains to get a good reception (Some milimettres enough).

OVERALL OPINION

I use it for two weeks just so I can not give advice on longevity.
What I like most is the price! € 150 is really not steal!
Then the phantom power on each track separately controllable it is still the foot!
What I like least? ... Heuuuuuu ... Beinnn heuuuuu ... How to say ... Knobs may be plastic but hey, I do not see what the problem is ...
Before using this preamp, I used a Behringer Eurorack mixing desk, which broke down 3 times and whose control of the phantom was small (two point) ...
Frankly this preamp is really worth!
»
rdelaye08/16/2010

rdelaye's review (This content has been automatically translated from French)

SM Pro Audio PR8 E
Octo pre amplifier with each channel:
- Gain (knob rotary)
- A button on / off +48 V phantom power
- A phase inversion button.

Enter by 8 combo facade (XLR/jack6, 35)
output jack 8 6.35 in rear

Inter 1 On / Off Front

Rackable 19 "/ 1U

UTILIZATION

Basic, nothing to say: Ultra Simple
1 Knob gain and that's all

biensur must activate the phantom power if needed, or reverse phase if necessary.

SOUND QUALITY

These transistor preamp.

Adds no breath earlier neutral short, he did his job.

but nothing more (it's not high end)

OVERALL OPINION

I've had 4 years, I do not use it much.
It is a sound card to 8 inputs (Terratec Phase88), history of having correct preamps that accept microphone, even electro static.
»

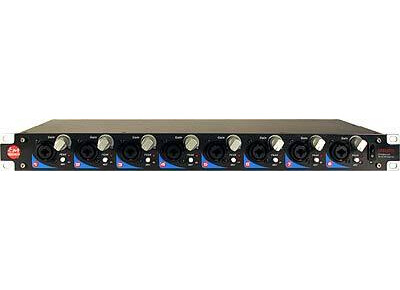

SM Pro Audio PR8 E images
