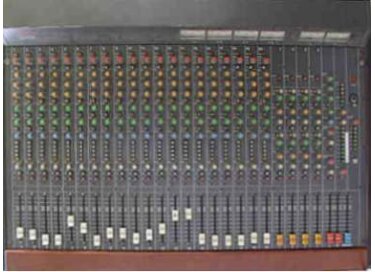

Tascam M-320
Images
1/19

Tascam M-320

Analog Mixer from Tascam .

1 review
Price engine
Classified Ads
Forums

Annonces Tascam M-320

Send me a notification via email whenever there is a new ad on this product

Images

Reviews

Average Score:
(5/5 based on 1 review)
1 review
100 %
Write a user review
musicismylifemusicismylife

Tascam M-320Published on 10/25/09 at 09:19
(This content has been automatically translated from French)


Analog mixer vintage 80's.

20 channel, 4 buss (with insert and start with 3 and 4), 2 in 1 effect (in), 4 return pgm mixable or not the sum of the buss

<em>- Track: line or mic input, +48 V, insert, eq semiparametric med 200 Hz to 4 kHz; low 50 Hz to 1 kHz, 4 kHz hi classic returns with the departure, a departure effective with returns, can send to 4 buss, pan left right, channel mute and solo.

- Buss (with insert and start with 3 and 4) output switch with balanced / unbalanced

- Master Section: Master and mono output, master insert, 1 headphone, talkback mic, BNC connection for lamp

- Return pgm: 8 mono or 4 returns magneto stereo, mixed or not the sum of the buss.

......
Read more


Analog mixer vintage 80's.

20 channel, 4 buss (with insert and start with 3 and 4), 2 in 1 effect (in), 4 return pgm mixable or not the sum of the buss

<em>- Track: line or mic input, +48 V, insert, eq semiparametric med 200 Hz to 4 kHz; low 50 Hz to 1 kHz, 4 kHz hi classic returns with the departure, a departure effective with returns, can send to 4 buss, pan left right, channel mute and solo.

- Buss (with insert and start with 3 and 4) output switch with balanced / unbalanced

- Master Section: Master and mono output, master insert, 1 headphone, talkback mic, BNC connection for lamp

- Return pgm: 8 mono or 4 returns magneto stereo, mixed or not the sum of the buss.

- Led to overload.

- VU meter needle.</em>

UTILIZATION



Simple configuration: Simple analog.

Manual: complete and clear thick binder with everything in detail and of course the patterns of the 3 Series models (M-308 M-312 M-320).

Everything is at hand for quick and convenient use.

SOUNDS



Sound: For my part, I find it magical!
My consoles have aged well. It's really strong and even more than today's hardware (quality of components).

<em>Preamp: good headroom and no breath to trim (never needed to push through).
Transparency: Yes or no! "I pass by them for the sound (line or mic) and also used for
returns my tracks separated from my PC via my MOTU interface on the console. "
So! yes transparency in the sense that what goes in the same ring after registration.
And no! In the sense that, once the hot console and if you go further in the preamp (lower
earnings of sources used in the preamp and enhance the volume to trim the console) you win
presence in the sound without distorting the sound, more heat (your choice).

Eq: It's been fun.
I take pleasure in my power to ring sounds (drums "how denting its signal to grow," and
notcher how aggressive the treble of your condenser microphones to soften the voice.

</em>



OVERALL OPINION



I have been using a half years for making sounds and mixing.

I mix hip-hop, reggae, electro, and rock and I have nothing to redire.J 're doing what I want to.
Now I have mastered all of my equipment and I obtain what I really want.

I buy the 320 B in a good condition about 850 euros "revised" and I did not hesitate.

I own 3 of the Series M-300.

An M-312, an M-320 and M-320 B.

The M-312 for sources to be recorded and the M-320 B mixes for returns.

The other 320 formerly used for my association that I will revise and sell soon because (dissolution associative).

For photos see my profile MUSICISMYLIFE and the combo of the 312 and 320 B.

The least: If only there was a 32-way!

The 320 is the largest model in the series: Yes I would do this choice.
See less
»

Tech. sheet

  • Manufacturer: Tascam
  • Model: M-320
  • Category: Analog Mixers
  • Added in our database on: 07/13/2008

We have no technical specifications for this product
but your help will be much welcomed

»
