Published on 07/26/06 at 11:05 (This content has been automatically translated from French)

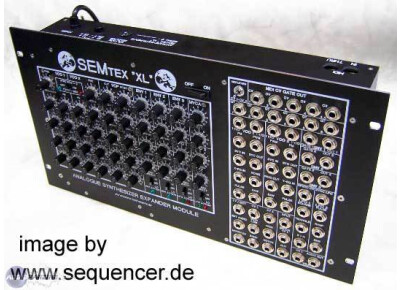

Clone SEM module (Synthesizer Expander Module) Oberheim.
modular analog expander
2 + 2 VCOs SubOscillators
Multimode-Filter with Filter Morph (by HP) HPF LPF to
Ringmodulation, Noise
FM, Sync, 2 VCAs,
3 Envelopes with Lo, Mid, Fast Switch,
2 LFOs with Lo, Mid, Hi-Switch
Incl noon. Lots of Features
(4 CVs, Controllers, 6 Gates)
USE
- Is Gnrale setup simple?
Simple enough to understand who knows modular,
- The edition of sounds and effects is it easy?
The deprpatch takes practice system with the use it gets easier to navigate.
Prepatch Semtex XL
SOURCE --------> DESTINATION
ENV 1 OUTPUT --------> CUTOFF AMOUNT 1
ENV 2 OUTPUT --------> FM 1 + 2...…
modular analog expander
2 + 2 VCOs SubOscillators
Multimode-Filter with Filter Morph (by HP) HPF LPF to
Ringmodulation, Noise
FM, Sync, 2 VCAs,
3 Envelopes with Lo, Mid, Fast Switch,
2 LFOs with Lo, Mid, Hi-Switch
Incl noon. Lots of Features
(4 CVs, Controllers, 6 Gates)
USE
- Is Gnrale setup simple?
Simple enough to understand who knows modular,
- The edition of sounds and effects is it easy?
The deprpatch takes practice system with the use it gets easier to navigate.
Prepatch Semtex XL
SOURCE --------> DESTINATION
ENV 1 OUTPUT --------> CUTOFF AMOUNT 1
ENV 2 OUTPUT --------> FM 1 + 2...…
Read more
Clone SEM module (Synthesizer Expander Module) Oberheim.
modular analog expander
2 + 2 VCOs SubOscillators
Multimode-Filter with Filter Morph (by HP) HPF LPF to
Ringmodulation, Noise
FM, Sync, 2 VCAs,
3 Envelopes with Lo, Mid, Fast Switch,
2 LFOs with Lo, Mid, Hi-Switch
Incl noon. Lots of Features
(4 CVs, Controllers, 6 Gates)
USE
- Is Gnrale setup simple?
Simple enough to understand who knows modular,
- The edition of sounds and effects is it easy?
The deprpatch takes practice system with the use it gets easier to navigate.
Prepatch Semtex XL
SOURCE --------> DESTINATION
ENV 1 OUTPUT --------> CUTOFF AMOUNT 1
ENV 2 OUTPUT --------> FM 1 + 2 IN VCOs, MVCA CV 1
ENV 3 OUTPUT --------> LFO 1 SPEED CV 1
ALL GATES ARE TRIGGERED AT GATE 1 INPUT!
FOR INDEPENDENT GATES: PLUG THE DESIRED INPUTS.
LFO 1 TRIANGLE OUT --------> EXT. AUDIO INPUT VCF, PWM 1 + 2
LFO 1 S + H OUT --------> CUTOFF AMOUNT 2
LFO 2 PULSE OUT --------> TRIGGER ENV 1 + 2 + 3
LFO 2 RAMP OUT --------> MVCA INPUT,
LFO 2 SINE OUT --------> MORPH VCF CV
MVCA OUT ---------> 1V / October VCF INPUT
INTERN 5 VOLT ---------> VCA CV 1
PULSE OUT 1 ---------> X RING INPUT
PULSE OUT 2 ---------> Y INPUT RING
- Is the manual is clear and sufficient? ...?
for now it's in German ... translation is underway
the documentation of the midi interface is in English.
SONORITS
Big analog sound. (2 + 2 sub osc + ring mod + noise)
ADSR are very fast, and the filter is gnial.
NOTICE GLOBAL
- How long have you use it?
about 2 months
- What is the particular feature you like best?
the sound!
- How do you report qualitprix?
1200, the report qualitprix is very good.
- With the exprience, you do again this choice ...?
Yes
modular analog expander
2 + 2 VCOs SubOscillators
Multimode-Filter with Filter Morph (by HP) HPF LPF to
Ringmodulation, Noise
FM, Sync, 2 VCAs,
3 Envelopes with Lo, Mid, Fast Switch,
2 LFOs with Lo, Mid, Hi-Switch
Incl noon. Lots of Features
(4 CVs, Controllers, 6 Gates)
USE
- Is Gnrale setup simple?
Simple enough to understand who knows modular,
- The edition of sounds and effects is it easy?
The deprpatch takes practice system with the use it gets easier to navigate.
Prepatch Semtex XL
SOURCE --------> DESTINATION
ENV 1 OUTPUT --------> CUTOFF AMOUNT 1
ENV 2 OUTPUT --------> FM 1 + 2 IN VCOs, MVCA CV 1
ENV 3 OUTPUT --------> LFO 1 SPEED CV 1
ALL GATES ARE TRIGGERED AT GATE 1 INPUT!
FOR INDEPENDENT GATES: PLUG THE DESIRED INPUTS.
LFO 1 TRIANGLE OUT --------> EXT. AUDIO INPUT VCF, PWM 1 + 2
LFO 1 S + H OUT --------> CUTOFF AMOUNT 2
LFO 2 PULSE OUT --------> TRIGGER ENV 1 + 2 + 3
LFO 2 RAMP OUT --------> MVCA INPUT,
LFO 2 SINE OUT --------> MORPH VCF CV
MVCA OUT ---------> 1V / October VCF INPUT
INTERN 5 VOLT ---------> VCA CV 1
PULSE OUT 1 ---------> X RING INPUT
PULSE OUT 2 ---------> Y INPUT RING
- Is the manual is clear and sufficient? ...?
for now it's in German ... translation is underway
the documentation of the midi interface is in English.
SONORITS
Big analog sound. (2 + 2 sub osc + ring mod + noise)
ADSR are very fast, and the filter is gnial.
NOTICE GLOBAL
- How long have you use it?
about 2 months
- What is the particular feature you like best?
the sound!
- How do you report qualitprix?
1200, the report qualitprix is very good.
- With the exprience, you do again this choice ...?
Yes
See less
10
»
Tech. sheet
- Manufacturer: Anyware Instruments
- Model: SemTex XL
- Category: Analog Synth Racks/Sound Modules
- Added in our database on: 12/05/2005
We have no technical specifications for this product
but your help will be much welcomed
»
