FX101 Grind Rectifying Overdrive, Overdrive pedal from DOD.


1 user review
Price engine
Classified Ads
Forums

DOD FX101 Grind Rectifying Overdrive tech. sheet

  • Manufacturer:DOD
  • Model:FX101 Grind Rectifying Overdrive
  • Category:Overdrive pedals
  • Added in our database on: 04/26/2004

The FX101 Grind Rectifying Overdrive was introduced at Summer NAMM 1996, along with the FX100 Integrated Tube Even Harmonic Overdrive pedal. Sharing the same circuitboard as the FX100, the FX101 was voiced to emulate modern Mesa/Boogie-esque rectified distortion, and despite its name is really a high-gain distortion pedal rather than an overdrive pedal. In a first for DOD, the FX101 and FX100 also included a speaker emulator output jack, for plugging directly into a mixing board or a recorder. Although the FX101 was generally well-received, it was discontinued by late 1998 as DOD revised their effects pedal lineup.

  • Controls: Blast (output level), Rumble (lo E.Q,), Burn (hi E.Q.), Fear (gain/overdrive)
  • From the manual: "The FX 101 Grind isn't just another overdrive box, it incoporates special circuitry that adds even harmonics to the signal, emulating an overdriven tube, and then recifies it to produce a modern 'rectifier crunch sound'. With the correct utilization of this effect, all of the dynamics of an overdriven amp can be heard. The FX 101 produces tones from Hard Rock to Alternative, to the Grindcore. Since the tone cntrols [sic] 'Rumble' and 'Fear' are centered at popular amplifier frequencies, this pedal sounds like a Preamp, not a pedal. As an added bonus, the FX101 now gives you the ability to run straight to a mixing board with the speaker emulating 'SPKR OUT' jack."
  • Sample settings (scanned from the user manual)
  • Technical info:



  • Notable IC chips: two 4560-type op-amps
  • Component-side circuitboard image: October 1998
  • Related circuits: FX51 (loosely based), FX100 (same circuitboard, but R27, R32, R47, C17, C19, and Q7 are missing in the FX101); DOD's I.T. circuitry was also used in a series of small practice amplifiers (including the "Grind I.T.") released at the same time.
»

DOD FX101 Grind Rectifying Overdrive user reviews

Average Score:4.0(4/5 based on 1 review)
 1 user review100 %
12/17/2007

Anonymous 's review (This content has been automatically translated from French)

DOD FX101 Grind Rectifying Overdrive
First of all, point out things right away: this is NOT a "distortion pedal-to-death-do-for-play-as-du-grindcore" ... Not!

This pedal is in fact, as the name does not indicate an Overdrive. Yes, yes, an overdrive on the edge of the Fuzz, but be careful! A "Rectified Overdrive" as specified in the statement under the name of the pedal. Side look, the pedal is heavy metal, and the sturdy footswitch well, especially compared to the first footswitch enough for the brand that got angry if we tired a bit above. In short, the look and sound really inspire confidence.

In terms of connectivity, it's very simple: input, output, and also an output jack called "Spkr out" that connects the pedal directly into the PA or recording without a direct box. Not bad!

Power is supplied either by the usual 9V battery (easily accessible without the need for screwdriver) or a transformer format BOSS (the outlet is located between the two output "out").

UTILIZATION

Well, use a effects pedal, it's not complicated at all ...

Here we have four settings available:
* BLAST: manages Gain
* RUMBLE: manages the Bass
* BURN: manages Treble
* FEAR: manages the Master Volume

The knobs are nice to shoot, drive a little (just enough) to avoid inadvertently change a setting, if touched at the base.
The manual offers four examples of sound, but frankly, it's better to find oneself his own.

SOUND QUALITY

As I said, so it's an overdrive that we have here. Surprisingly with a name like that, right? But in fact, the name of the pedal is right: imagine a group of Grindcore typical style, with a super-low tunings, songs under 2 or 3 minutes and with his well-saturated and dripping drooling, deliberately not very precise (as is what this kind of style). Bingo! It is in the thick of it! Pedal complies with the type of microphones used on the guitar (single or double), but supports even more when the big humbuckers like "patator".

In use, and over time, note that certain frequencies were voluntarily traffiquées to get what's so special:
* The button RUMBLE, the bass is very present and very quickly become too invasive and round as if the speaker of an amp was too stuffed to serious. However, one can easily guess that this was deliberately done so.
* With the BURN button, the treble is very strident, at the edge of a jigsaw. But here too we guess that it was deliberately calibrated as well.

We also note that the buttons and FEAR RUMBLE complement each other perfectly, but still need some adjustments to push the buttons 3 / 4 of their races depending on what is sought as his. Reducing it to one of these settings will then be asked to review them all, which guarantees good sound research in general.
So, you end up with sounds not for the pedal: the juicy, dirty blues with a little RUMBLE pushed and half-BURN (remember that it is an overdrive at the base), punk BLAST with the button pushed too much, the noisy-grind, with all settings at bottom, the alternative with the BURN boosted and not too much RUMBLE, etc ... Really amazing!

Another surprise: the output Jack "SPKR OUT" which allows to connect a live sound or recording, without a direct box. When the pedal is not activated, the sound is not bad and quite transparent. Plugged into an amplifier, this release offers a different sound output jack on the other, which increases the possibility of sound findings. You can even use it to connect the sound of a bass.

Fills surprises other pedal will be connected upstream of the GRIND will also use this exit "SPKR OUT" ... Pretty neat huh?

Small problem: the sounds are usable, but it happens too fast to say that the pedal would have deserved much more output level, regardless of the output jack used. But it would have been of much less in <a rel="nofollow" href="/cable-by-the-meter/sommer-cable/the-spirit/?utm_source=audiofanzine&utm_medium=link&utm_campaign=netting&utm_content=product&utm_term=The+Spirit" target="_blank">the spirit</a> of sound from mission of this pedal and it will manage the volume on the guitar and the amp ;-)

OVERALL OPINION

When you want to take this pedal, there are questions to ask to see if it&#39;s worth it.

6 The good things that tip the scales in its favor:
- Perfect for the style Grindcore announced
- Very focused on the game rhythm
- Exit "SPKR OUT" to replace any direct box
- Being able to connect pedals ahead to enjoy the "SPKR OUT"
- It offers more versatility than expected with good surprises sounds (punk, noisy, alternative, blues and even the large well cradingue and gruff).
- A common and its really not very different from everything that exists, making it original.

Those who will not like this pedal will be those who:
- Looking for a distortion pedal (here is one that has boosted overdrive)
- Want the versatility of its saturated
- Swear by its very clean, precise and surgical
- Want to do solos audible
- Want a good output level
In short, without trying to priori!
»

DOD FX101 Grind Rectifying Overdrive images

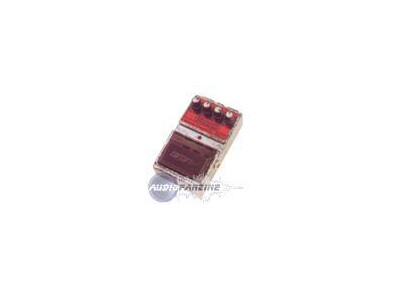

  • DOD FX101 Grind Rectifying Overdrive
