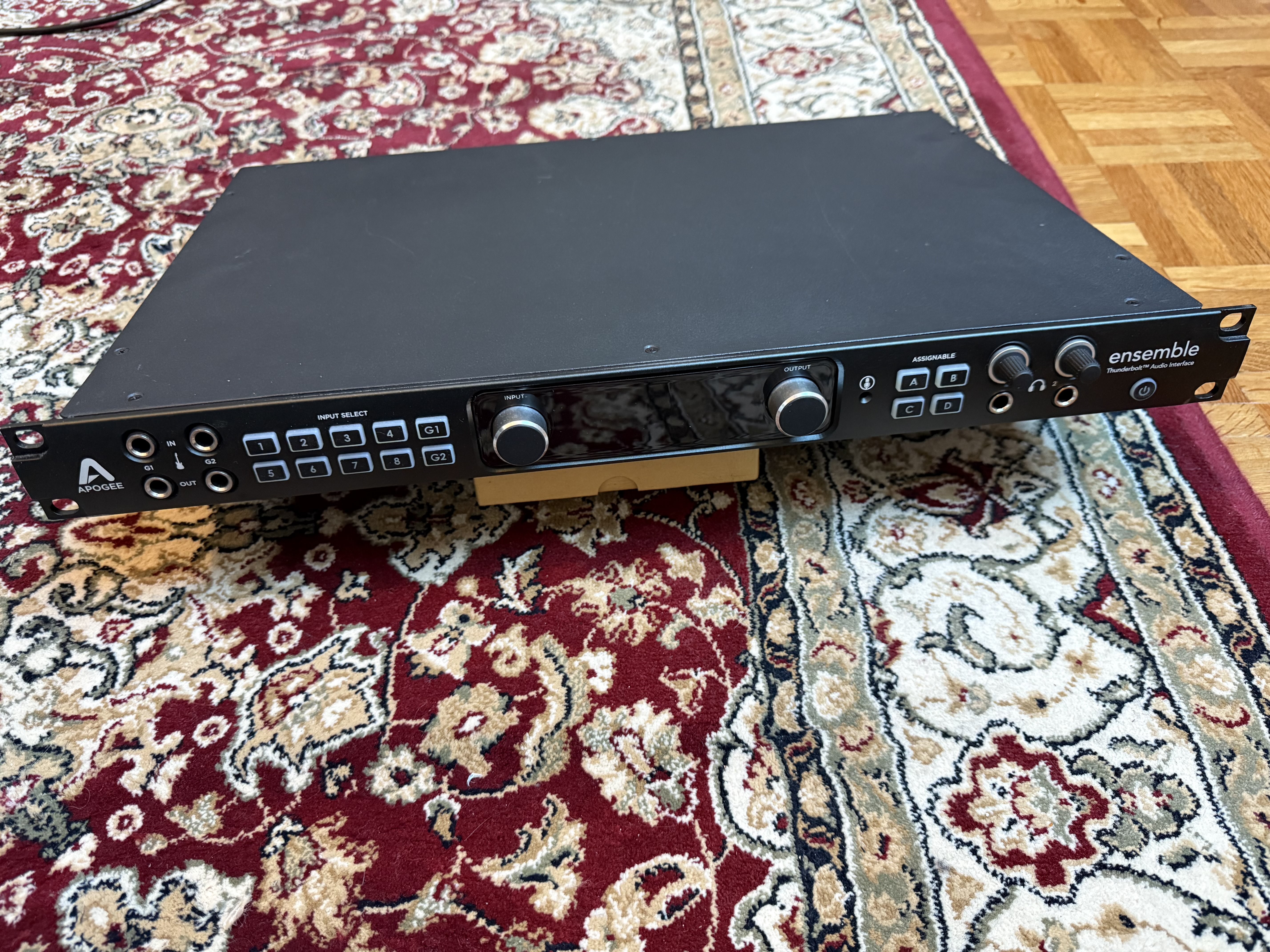

Apogee Ensemble (2014)

Add this product to
  • My former gear
  • My current gear
  • My wishlist

Thunderbolt audio interface from Apogee belonging to the Ensemble series

Write a user review
Public price: $2,495 incl. VAT
Where to buy Ensemble (2014)?
Less
  • New
  • Second-hand
No retailers are offering this product at this time.
Availability alert
There are no classified ads for this product.
New ad alert

Articles

Tech. sheet

Created on 10/07/2014

Analog Inputs:

  • 4 Combi mic/line/instrument inputs
    • 2 1/4″ balanced analog inserts
  • 4 XLR mic/line inputs
  • 2 1/4″ hi-z guitar/instrument inputs with Class-A JFET input stage

Digital Inputs:

  • Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    • S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
  • Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
  • Word clock input on BNC connector

Built-in Microphone:

  • Mono omnidirectional condensor capsule on front panel

Mic Preamps:

  • 8 Mic preamps
  • Gain: Up to 75 dB and advanced stepped gain circuit design
  • Selectable 48v phantom power, hi-pass filter, Soft Limit ̈ and polarity invert
  • EIN: 129dB (un-weighted) @ 60dB, 150Ohm input
  • Max input level: +20dBu
  • Input impedance: 3K Ohm

Hi-Z:

  • Max input level 14 dBu
  • Input impedance: >2MOhm

Analog Outputs:

  • 2 1/4″ balanced monitor outputs
  • 8 balanced outputs on 1 DSUB 25-pin connector
  • 2 independent 1/4″ stereo headphone outputs
  • 2 1/4″ dual-mode guitar/instrument outputs

Digital Outputs:

  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    • S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
  • Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
  • Word clock output on BNC connector

A/D conversion:

  • Max input level (+4dBu ref/Mic): +20dBu
  • Max input level (-10dBV ref): +6dBV
  • Input impedance: 5KOhm
  • Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
  • Rel. THD + N: -110dB (@ 96Khz)
  • Dyn. Range: 119dB (A-weighted)

D/A conversion:

  • Max output level (+4dBu ref): +20dBu
  • Max output level (-10dBV ref): +6dBV
  • Line output impedance: 90 Ohm
  • Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
  • Rel. THD+N : -114dB (@96Khz)
  • Dyn Range: 123dB (A-weighted)
  • Front panel Guitar Output: impedance balanced/max level 14 dBu
  • Max output level headphones: 19dBu
  • Rel THD + N into 600 Ohm: -109dB
  • Dyn Range: 120dB (A-weighted)
»
