Tech. sheet

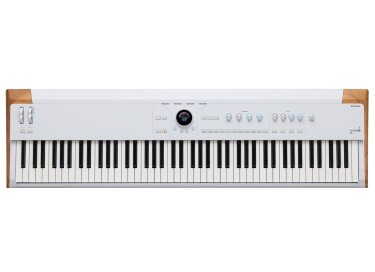

- Manufacturer: Arturia
- Model: AstroLab 88
- Series: Astrolab
- Category: Digital Synths
- Year of release : 2022
- Synthesis type : Physical Modeling
- Maximum polyphony : 128 voices
- Multitimbrality : 16 parts
- Number of keys : 88 keys
- Keybed type : Hammer-action
- Built-in sampler : No
- Built-in sequencer : Yes
- Built-in arpeggiator : Yes
- Number of user presets : 500
- MIDI I/O : In/Out/Thru/USB
- Audio outputs : Stereo Out, Headphones
- Power supply : AC Adapter
- Dimensions : 1350 x 350 x 150 mm
- Weight : 16 kg
- Other names:astro lab 88, astrolab88
- Keyboard: 88 weighted keys (Fatar TP-40L mechanics), aftertouch
- Weight: 22,2 kg (48.9 lbs.)
- Dimensions : 1316 × 352 × 127 mm (51.8 x 13.9 x 5 inches)
- Display: Central thumbwheel with color display
- Built-in effects : 2 FX + delay + reverb, controllable via encoders
- Integrated MIDI looper
- Wireless connectivity: Bluetooth audio, Wi-Fi for Analog Lab Connect app
-
Audio connections:
- 2 XLR/jack combo audio inputs
- 2 audio outputs jack 6,35 mm (1/4”)
- 1 headphone output
-
MIDI connectivity:
- MIDI DIN 5-pin input/output
- 4 pedal inputs (expression, sustain, 2 aux)
-
USB ports:
- USB for power supply
- USB-C for data transfer or connection to a device
- Software compatibility: Analog Lab Pro, V-Collection (optional), AstroLab Connect (iOS/Android)
-
Accessories:
- Table included (original design, but impractical)
- Wooden legs optional
Videos
Q&A
What are the differences between the AstroLab 88 and the AstroLab 61?
The AstroLab 88 retains most of the features of the 61-key model, but adds a weighted Fatar TP-40L keyboard for improved piano playing comfort. It's also heavier and bulkier.
Is the Fatar TP-40L keyboard close to the feel of an acoustic piano?
Not quite. Although it's weighted, it's still light for an 88-key action. It won't suit those looking for a realistic grand-style touch, but remains pleasant and responsive.
Can the AstroLab 88 be used on stage without a computer?
Yes. It features 40 instruments and 1600 presets accessible via the on-board interface. It can also be navigated via the Astrolab Connect mobile app.
Is it possible to customize sounds?
Yes. The AstroLab allows sounds to be edited via Analog Lab and, if you own the V-Collection, via the full Arturia instrument interfaces on computer.
Is the AstroLab 88 easy to transport?
Not really. At 22.2 kg (48.9 lbs.), it's heavier than average. It's designed more for musicians who leave their gear in place or need a stable keyboard on tour.
