Behringer Ultragraph Digital DEQ1024

Behringer DEQ 1024

Equaliser very easy to use.
Potentiomtre presentation of "analog" but digital technology with converter clocked @ 24bit 96kHz inside.
Among numriques & analog (XLR + RCA)
Analog outputs (XLR)

Easy Rglage of each band, applicable at the same time on both channels, convenient because it saves time for the settings.
Adjustment of gain, high pass filter, low pass filter, tuning the Gate and limited (very convenient not to burn its full power speakers).
Rglage the spatialization of sound.

Very good product for the right budget.

JB

USE

.dropoff Window

SOUND QUALITY

.dropoff Window

NOTICE GLOBAL

.dropoff Window

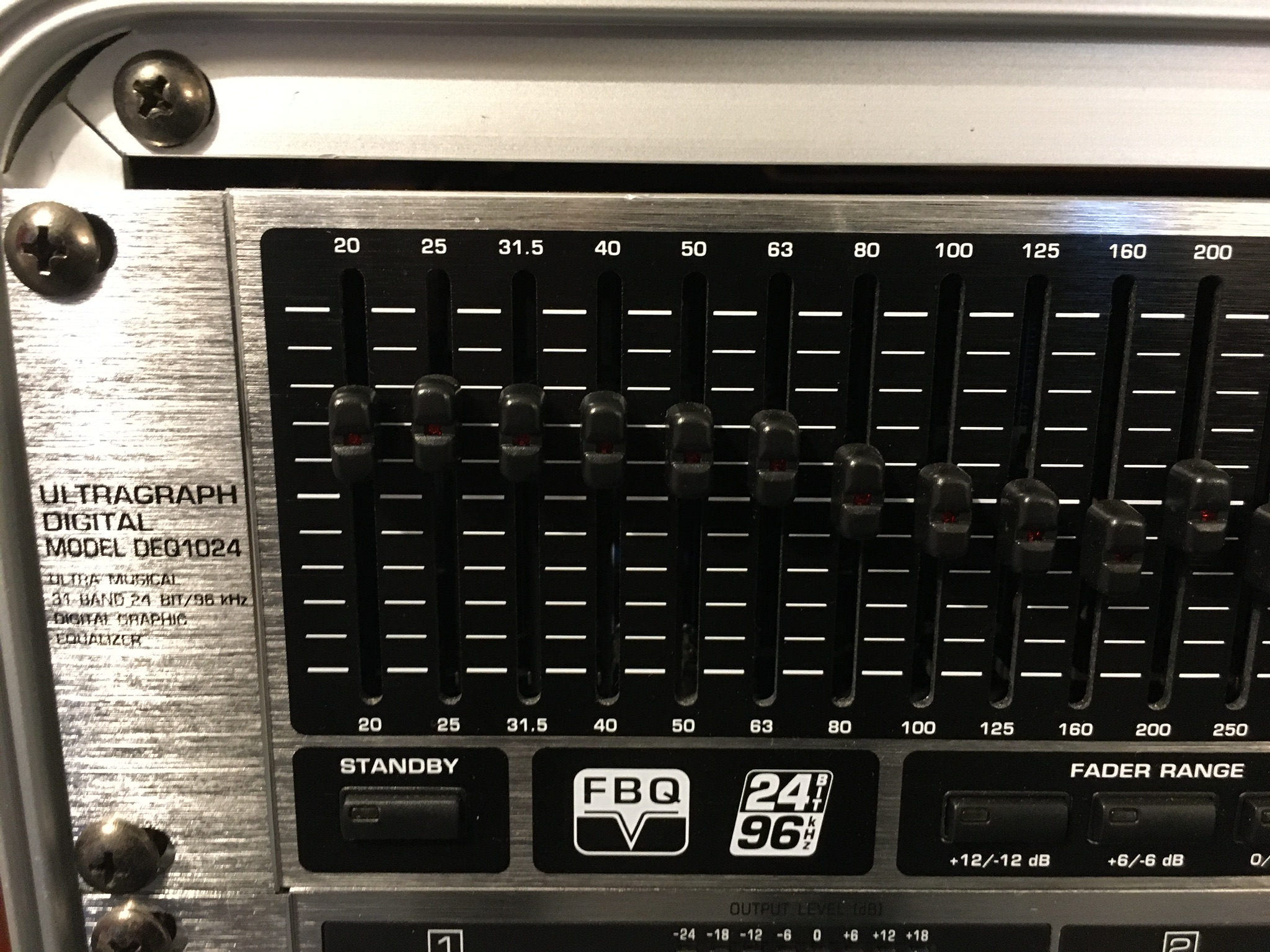

31-band stereo equalizer digital (analog side) with adjustable high and low cut, gate, limiter, surppresseur larsen (10 strips), spectrum analyzer function and stereo expander or mono sum!
Analog inputs and outputs balanced or unbalanced XLR Jacks.
Nuémriques inputs and outputs AES / EBU or SPDIF.

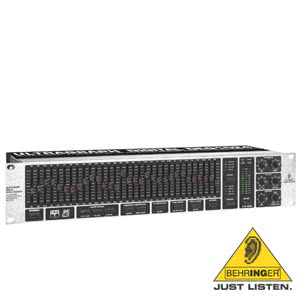

19 inch rack two units.

UTILIZATION

All parameters are simple.
The manual is more than enough to understand all the functions for beginners.

SOUND QUALITY

The equalizer I find it very good because it does not color the sound and this is an important point when you want to make a "good" correction.
No breath, the gate is very convenient, the limiter is not too horrible condition not push too.
However I do not understand the criticism of "poulbot" which compares more potatoes and cabbage. V2 is a 01V96 digital mixer that incorporates 4-band parametric EQ totally different a 31-band graphic equalizer as deq 1024 and which can be placed anywhere in your chain. Then, to correct a façade with eq. 4-band parametric luck because it is impossible!

In short, the sound quality of this eq is not bad at all. The true function curve is great for smooth curves.

One can even use this as equalizer analog / digital or digital to analog at 16 or 24 bits and 44.1 to 96 kHz!

OVERALL OPINION

For the price it is interesting because with multiple functions in addition to the 31-band equalizer with single control for both channels. It is very practical.
It's not super high-end course, but once again very good for the price.

Treatment is numrique, so no additional breathing.

Stro is an EQ, but not indpendants 2 channels: one EQ is applied to two inputs (Stereo pair). For this purpose, it is the IDAL, because It is not necessary to do the same rglage 2 times, one for the left and the other for the right. on the other hand, can not be used as two mono equalizer.

The search for feedback is awesome and saves prcieux dB without collision with the return of scne.

SETTING THE pass filter high pass and low noise gate, limiter, output level, width stro.

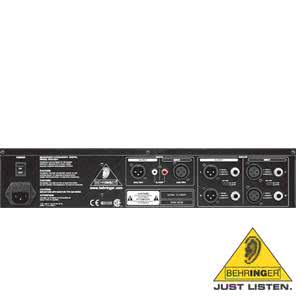

Analog inputs and outputs (XLR and jack) and numriques (S / PDIF (CAR) and AES (XLR)).

In dtail:

ANALOG INPUTS
Type Symtrie electronic
XLR
Impdance22 kOhms 1 kHz
Level of max. +12 Or +22 dBu switchable
CIIIRRTypique 80 dB

ANALOG OUTPUTS (MAIN)
Type Power symtrie XLR
Impdance100 Ohms 1 kHz
Output level max. +12 Or +22 dBu switchable

SYSTEM SPECIFICATIONS
Frequency response 15 Hz 35 kHz, + / - 3 dB
S / N ratio 104 dBu, laying 22 Hz - 22 kHz
0.004% THD @ +4 dBu typo, 1 kHz,
Amplification 1
Crosstalk <-85 dB, 22 Hz to 22 kHz

BYPASS
TypeRelais, hard-bypass if power cut
DIGITAL INPUTS
TypeXLR symtris by transformer
StandardAESIEBU or SIPDIF
Impdance of 110 Ohms
Level of
nominal0, 2 to 5 V peak-peak

DIGITAL OUTPUTS
TypeXLR symtris by transformer
StandardAES / EBU or S / PDIF
Impdance 110 Ohms
Output level 3.5 V peak-peak

DIGITAL PROCESSING
ConvertisseursDelta-Sigma 24-bit
surchantillonnage 64/128
Frq. Sampling 44.1 kHz, 48 kHz and 96 kHz
GRAPHIC EQUALIZER
TypeEgaliseur third analog tape
FrquencesDe range 20 Hz 20 kHz of 31 third band
according to ISO standards frquences
Wide band 1 / 3 octave
Rglage range + / -6, + / -12 dB or 0/-24 dB (switchable)

Feedback suppressor (FEEDBACK DESTROYER)
TypeAnalyse numrique signal for
identifying Feedback
FiltreMax. 10 notch filters by numriques
channel suppression Systm
Automatic Feedback
Frequency drives range from 20 Hz 20 kHz
Width bande1/10 octave
Range rglage-48 dB in 6 dB

MASTER
Gain 9 dB -9 dB

FILTER
ADB-Cup 20 Hz 160 Hz (12 dB / oct.)
Cutter hautDe 2.5 kHz 16 kHz (12 dB / oct.)
Dynamics Processing
Gate Type limiter with IGC (Interactive
Gain Control) numrique

Variable threshold: OFF, -60 to -10 dB (gate)
Variable: 10 -6 dB, OFF (limiter)

FUNCTION KEYS
BypassTouche decommissioning of
equalizer function
Meter ln / OutCommute the display level between the
inputs and outputs
Fader Range Commute amplification / attnuation
up to 31 bands
StandbyMet the device in standby mode
Pink rose NoiseBruit, level of -48 dB 0
FB IndicatorIdentification of the intensity of the band
frequency drives
True CurveAlgorithme curve linear filters

DISPLAY
Input / Output LevelAfficheur 12 LED segments:
-48/-36/-24/-18/-12/-6/-3/0 / +3 / +6 / +9 DB LED function keys on each key (except keys and Clock Configuration)

POWER SUPPLY
Input voltage 85 250 V, 50/60 Hz, auto
Consumption Typ. 10 W
Fuse T 1 AH
Mains connection Standard IEC receptacle

DIMENSIONS / WEIGHT
Dimensions (H x W x D) Approx. 89 mm (3.5 ") x 482.6 mm (19") x 135 mm (5.3 ")
Approx. 2.5 kg

UTILIZATION

Very useful little box in PA especially, but also for musicians or studio.
Trs way to who knows what was used!

The 'true curve' also allows visualizing rgler rponde rsultante curve, instead of for each filter indpendant. Two adjacent filters have an additive effect and is rponse tural suprieure quon visualized by the buttons. With the true curve we see What is meant, and rciproquement.

Larsen is the destroyer of effective and useful to save trs-level returns, without hanging mics, even if the position of microphones changes during the concert because the feedback-detection is permanent or fixed. The feedback appears, very true, and then disappears quickly.

The indicator of feedback is another feature that allows you to search the frquences manually correct the EQ as desired.
Inconvnient: you can not disable each function indpendamment. Dynamics / filters / master / Feedback Destroyer / EQ: It was out or anything.

SOUND QUALITY

Trs Hon in studio
Excellent in PA.

OVERALL OPINION

A price really trs INTERESTED under the quality and potential of the product.
A strongly advise.
