Ultra-Curve DSP8000, Graphic EQ from Behringer.

2 user reviews

Behringer Ultra-Curve DSP8000 tech. sheet

  • Manufacturer: Behringer
  • Model: Ultra-Curve DSP8000
  • Category: Graphic EQs
  • Added in our database on: 05/16/2004

We have no technical specifications for this product
but your help will be much welcomed


Behringer Ultra-Curve DSP8000 user reviews

Average Score:5.0( 5/5 based on 2 reviews )
 2 reviews100 %
Value For Money :

fluctus's review (This content has been automatically translated from French)

Behringer Ultra-Curve DSP8000
Equalizer band numrique 24 bits 2x31 + 6 strips Settings, Stereo limiter, noise gate, spectrum analyzer in real time with gnrateur pink noise.
It is also an anti larsen possde 6 bands (in fact the Settings, which are no longer available in this mode "sound").

100 user memory

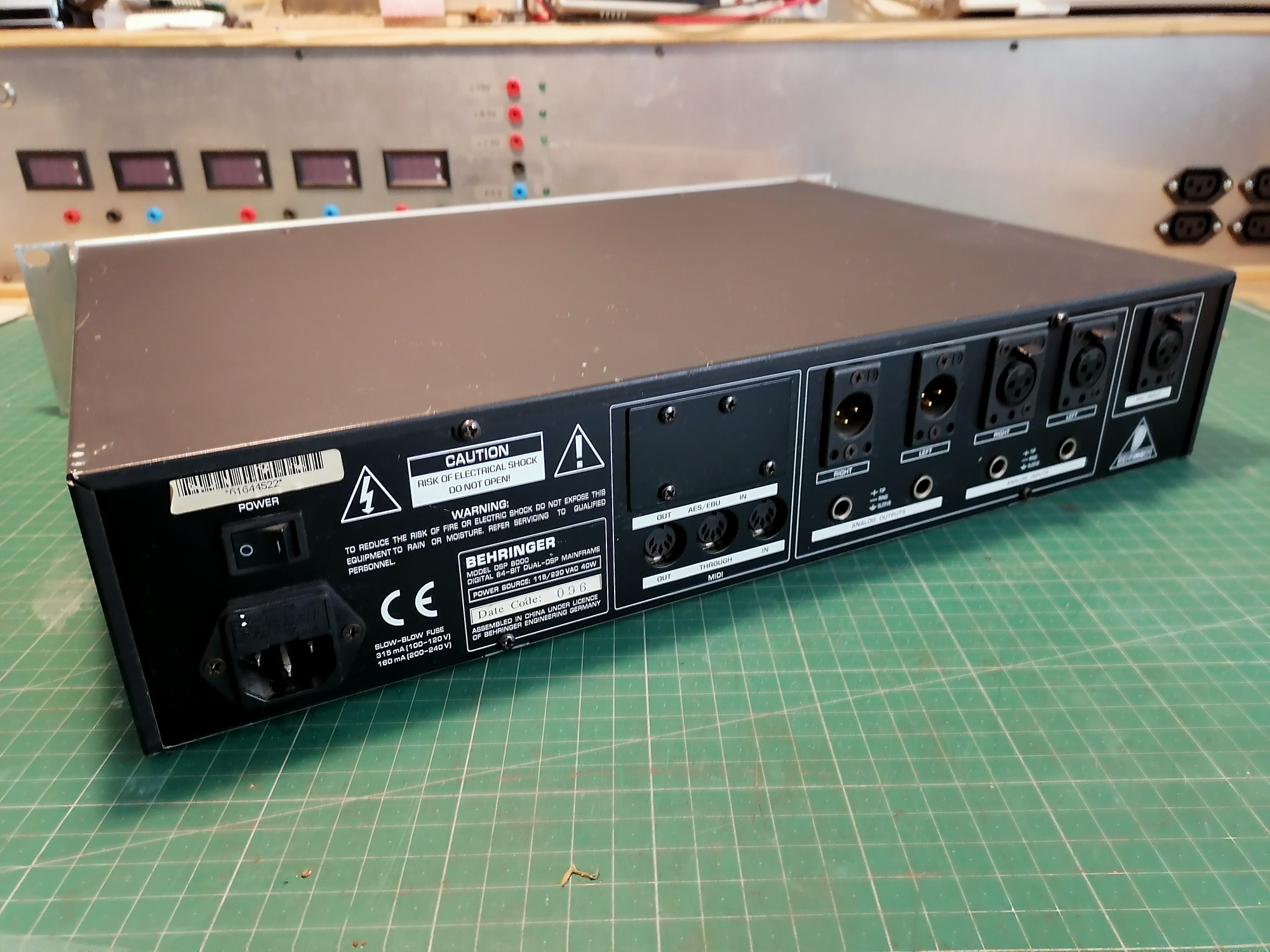

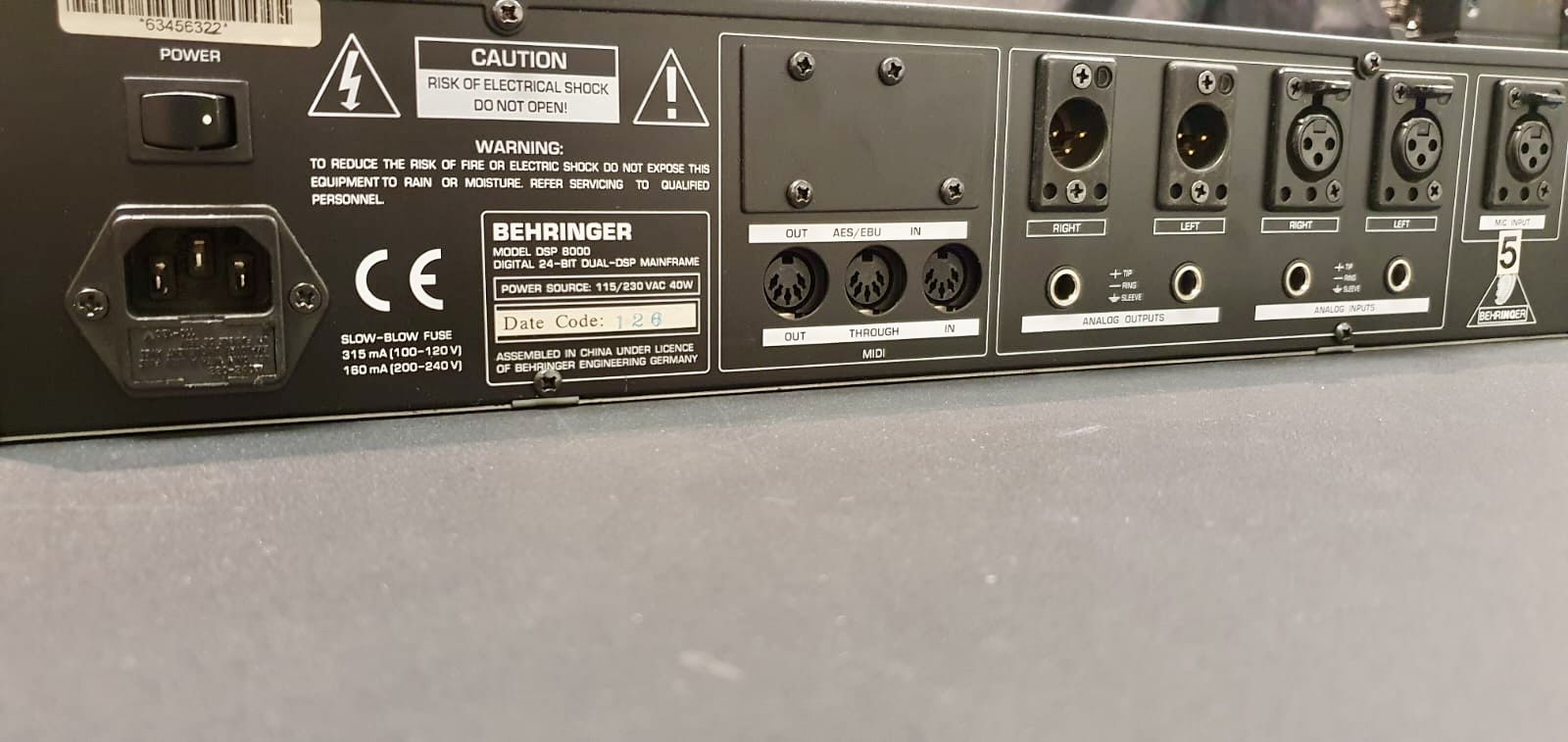

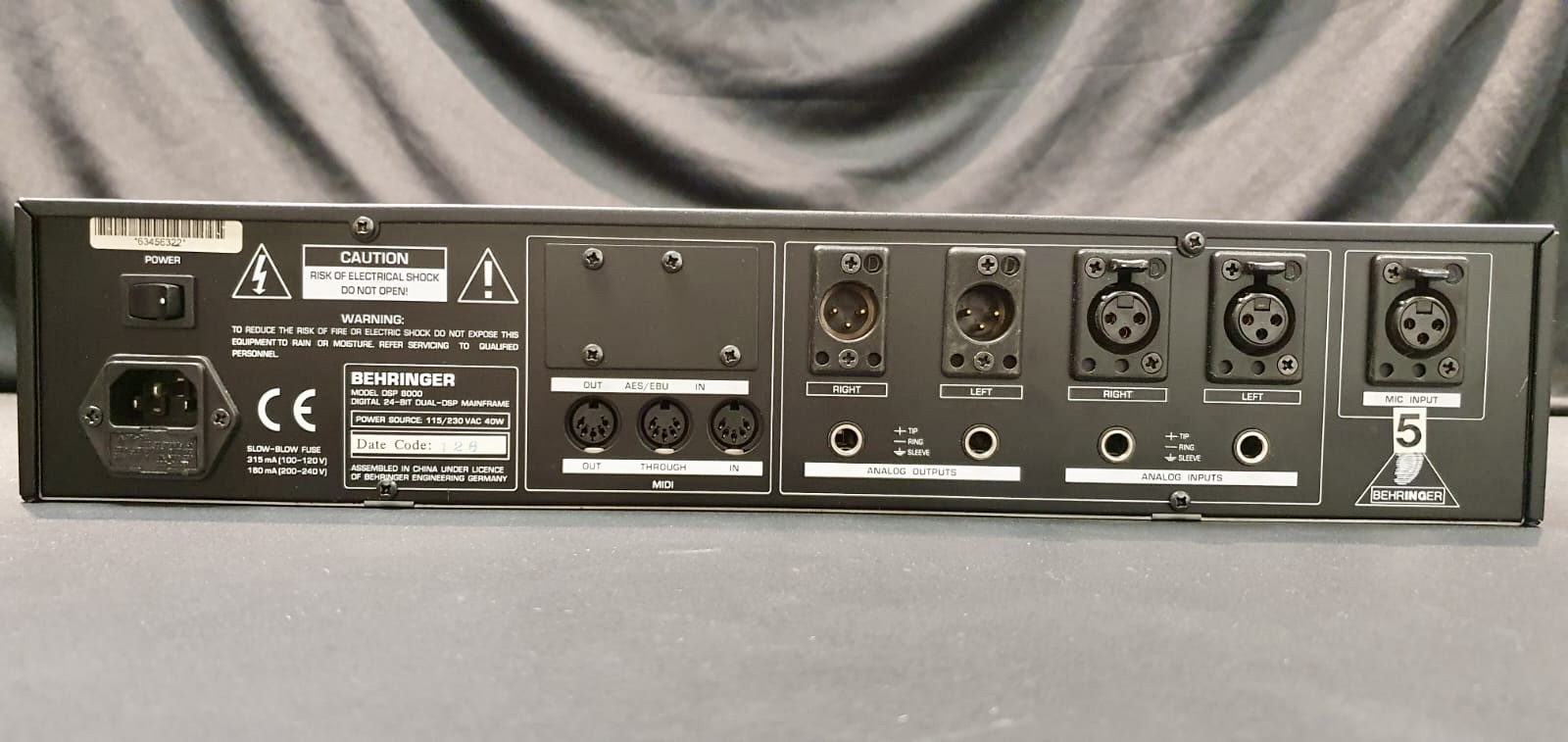

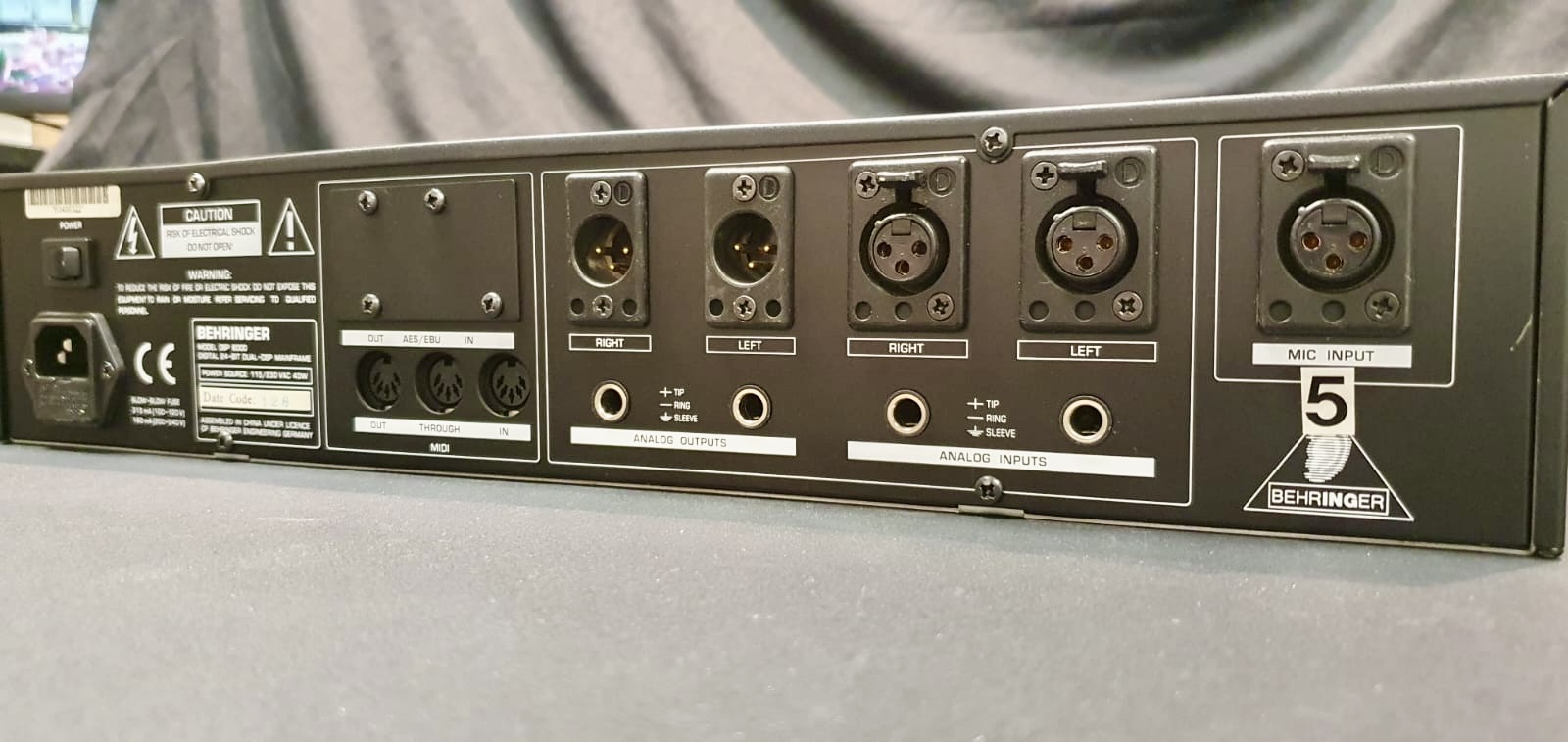

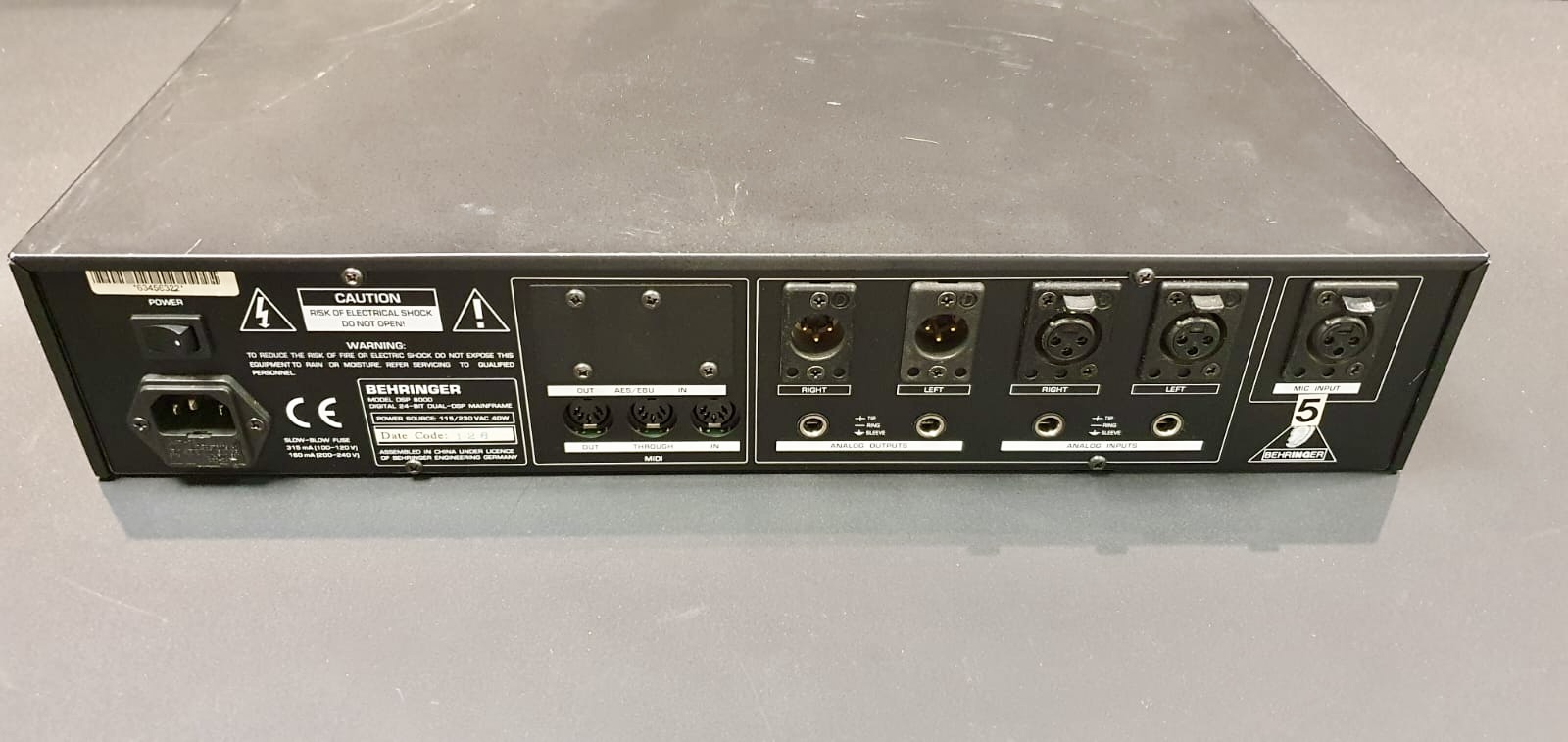

Input-output XLR, Jack (sym-asym) and between XLR microphone measurement, midi in / out / thru.
Software EQDesign the driver from the PC (or higher than 486).
Size: 2U Rack


This is not a BCAN to every hand ... 16dB gain per band, may be dangerous (for the hardware and the ears). But we can avoid a novice vrrouiller for the so-called ...
Ditto for the gnrateur pink noise: it is well explained in the instructions it takes down the volume of the sound before the snap, and VERIFY the output level on which it is calibrated.

on the other hand, 16dB of attnuation, nobody's complaining!
The menus are clear, even without the manual comprhensibles and functions ditions are well thought out (inversion of the curve, for dgrossir passe-haut/passe-bas/passe-bande modes, etc.).

This as a numrique EQ is always a long handle analog EQ: it has more features, but you have to go through the menus to be accder.

The analyzer is also of pro quality, with a time of rponse paramtrable memory and desire, which allows to visualize, either the peak or RMS curve, etc..

What a pleasure to live: it is the balance in the empty room, then we start the analysis in the room before starting the full concert, and found exactly the sound we had the balance!

NB: we can rgler levels of output and thereby with the limiters Intgr never to
saturate its converters (which enclose many dj: 24 bits!). The noise gate allows a sound pro, breathless pauses during the concert.


It is found in some audiophiles to correct the acoustics of their room costs, as when it was released, he reu a Diapason d'Or of clbre audiophile magazine ... This speaks volumes about its sound quality!

Moreover, Behringer does not cheat on its products, and provides a technical CHARACTERISTICS Retailer of the manuals (tlchargeables on their website). The sound is transparent, the converters are well made, they do not "cool" not sound like the consoles Yamaha. The numrique dphasages quickly and breath when you push the analog EQ band.

In terms of functionality, it is the equivalent of a Sabine (or BSS or DBX, because everyone makes numriques EQ / anti larsen now). It has its place everywhere in the studio or live, or a mix of instruments (although I prfre a small analog, faster rgler ear).

It all speaks volumes about the imbcilit some prtendus "ing's" who do not miss an opportunity to dgommer bulk products of this brand cheap. Thus, all the pro studios possdent at least one compressor "dial" and the only complaint is that it is to have one ... its too transparent!


I possde since 1998.
It is a reliability issue: never a problem!

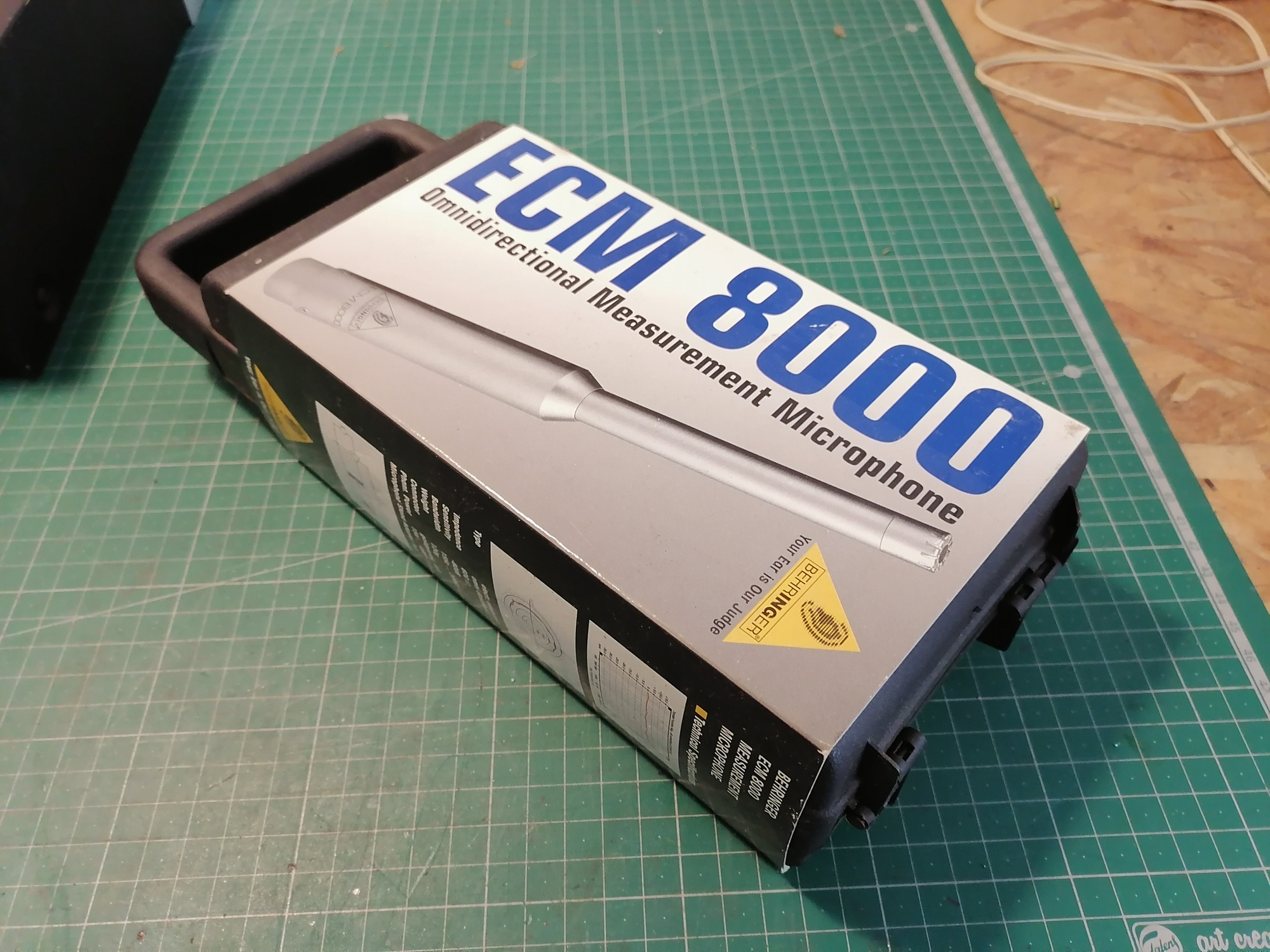

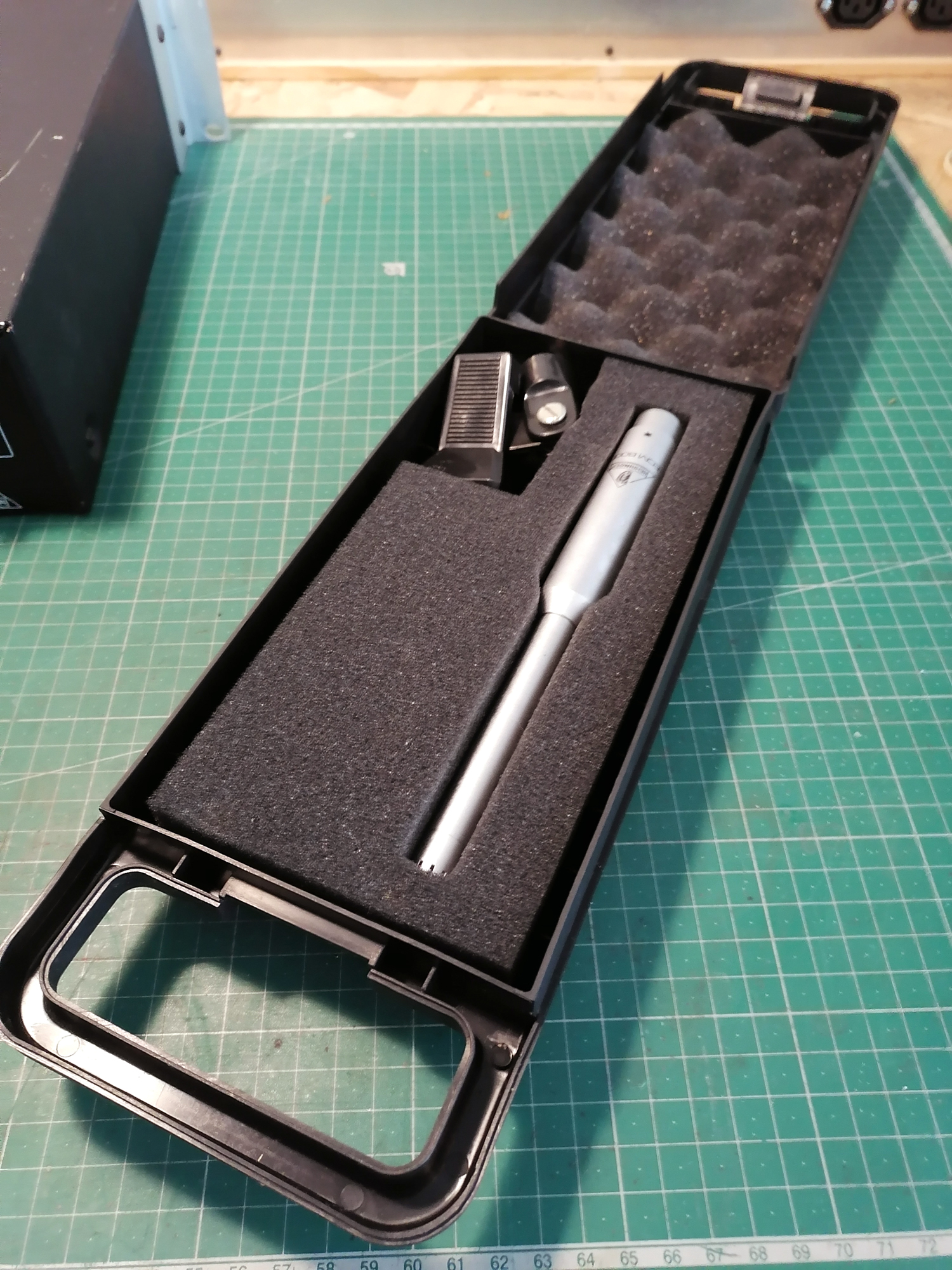

The anti feedback, the analyzer, and the governor make a sound BCAN indispensable. I emmne always with me, with his microphone ECM8000 because of a. It is part and no one cares more: saturate the console before him!
Besides, I never heard saturate the ais!

In the studio, it is controllable by noon, and it has 100 memory locations for storing rglages. So advantage over analog EQ, but also from most of the EQ plug-ins that want to use FIR filters prsentent dphasages often (so the 31-band EQ software rare).

With the Composer, it is unquestionably the best product from Behringer. Sr Although there is a little better ... but so much more! (NB: Ultracurve 5000F/750 worth more than its release, the full range of Behringer abnfici a sharp drop in prices since the brand launched its plants in China).
à Chaud01/27/2006

à Chaud's review (This content has been automatically translated from French)

Behringer Ultra-Curve DSP8000
Everything has already been said.


I bought it when it came out and been using it consistently in sound.
I created a forum topic recement on my way to pay for the rapid adaptation and automatic speaker system for cinemas.

I particularly like:
The 100-memoirs: I saved the settings for all the places I go, with 3 configs in place: low (just cut below 40Hz), Guitar (same as 80Hz) and voice (200Hz cut-off). The transition from one curve to another in one second does not get along.
The position gives a voice very clear voice by eliminating resonance and reverberation of the room in the grave.

-Self EQ (after the calibration of my sound system as shown in the forum
I do a lot of benefits with musical part followed by conference.

-The gate which allows for complete silence with no breath of the console during the silences.

Compressor-limiter that avoids saturating the digital

-The system while an equalizer with quality and exact curve, spectrum analyzer and rapid correction of the entire sound system / room, memory settings for reuse when you return in the same places, gate and compressor-limiter, low weight

The unit has earned a crust for years. I have the pile after five years and to upgrade the software EPROM.

Only the Up button now has a bad contact when there until it has been used. After some maneuvering, we walk again more or less correctly.
Admittedly, as I always rotates in the same room (about ten) I saved all my settings and have little opportunity to use it.

Edit in 2010: I replaced the battery again to avoid the risk of falling in the bay, repaired the switch that had bad contacts, and it go again at least 5 years older, which will soon be 20 years of loyal service.

Behringer Congratulations for this well designed, very solid and reliable.


As a CD, nothing less.


Congratulations for this device Behringer wonderful, reliable, affordable and very affordable.

For me it is the basic unit for any sound engineer who wants to have a good sound and good intelligibility and comprehensibility of the voice.
