USB audio interface

MOTU 828 (2024)

Add this product to

My former gear
My current gear
My wishlist

USB audio interface from MOTU belonging to the 828 series

Write a user review

Publish user review
Ask for a user review
Post a classified ad
Classified ad alert
Cancel classified ad alert
Create a topic in the forum
Add a picture
Add an audio extract
Add a video
Add a file (manual, brochure...)
Write a tutorial or a tip
Suggest a news item

Overview Overview

9/10

2025

Best product

Award

Where to buy 828 (2024)?

Less

New (1 offer)
Second-hand

Best new price

See more offers

MOTU 828 interface review

MO-MO-MOTU! Founded in 1984, MOTU has forged a solid reputation in the world of pro audio, but we at AF must confess that we haven't often taken the time to look into it. We're putting that right with the MOTU 828, the latest version of an interface that has been evolving since 2001, and has already earned itself a solid reputation. Read more…

Tech. sheet

Created on 01/10/2024

Manufacturer: MOTU
Model: 828 (2024)
Series: 828
Category: USB audio interfaces
Release date:january 2024
Other names:828 2024, 8282024, 828 20 24, 82820 24

USB-C audio interface (USB 2.0/3.0 compatible)
Maximum resolution: 24 bits / 192 kHz
2 mic/line/instrument inputs on XLR/jack combos with gain, pad and phantom power
10 balanced line inputs on 6.35 mm (1/4-inch) TRS jacks
10 balanced line outputs on 6.35 mm (1/4-inch) TRS jacks (DC-coupled)
2 main monitoring outputs on XLR connectors
2 independent headphone outputs with separate volume
Insert/send/return on the first two inputs
S/PDIF input/output (RCA)
2 ADAT optical inputs/outputs (up to 16 channels)
Word Clock input/output (BNC)
MIDI input/output (5-pin DIN)
Footswitch input (TRS jack)
Multifunction color display with dedicated navigation

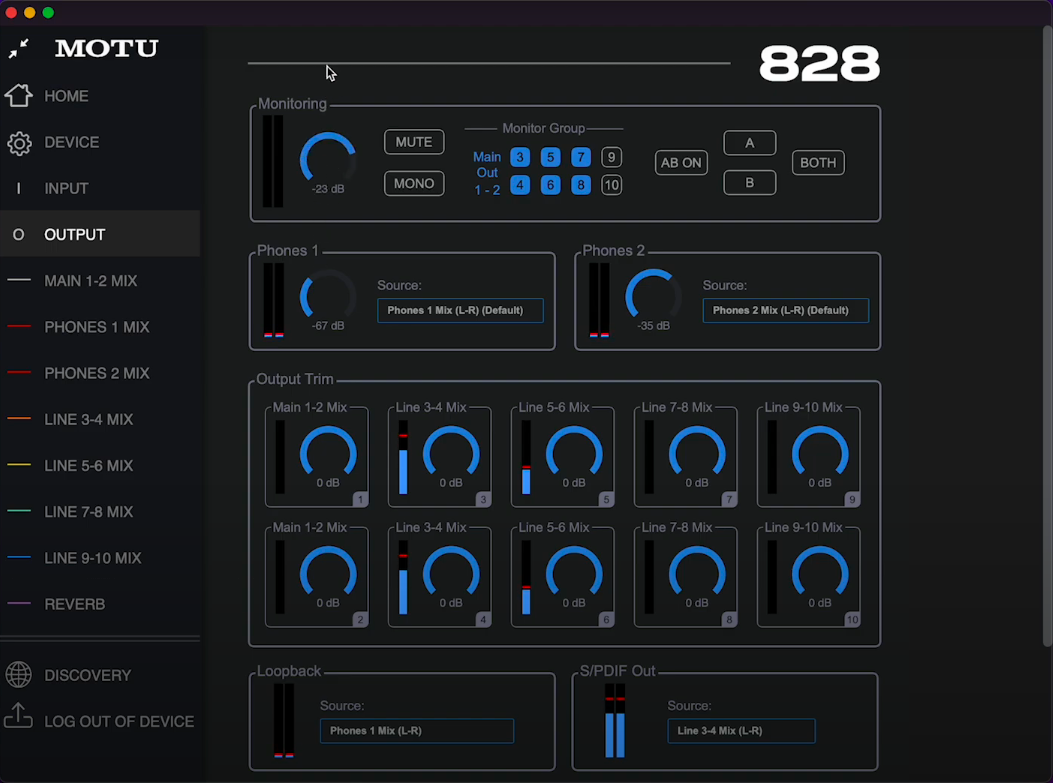

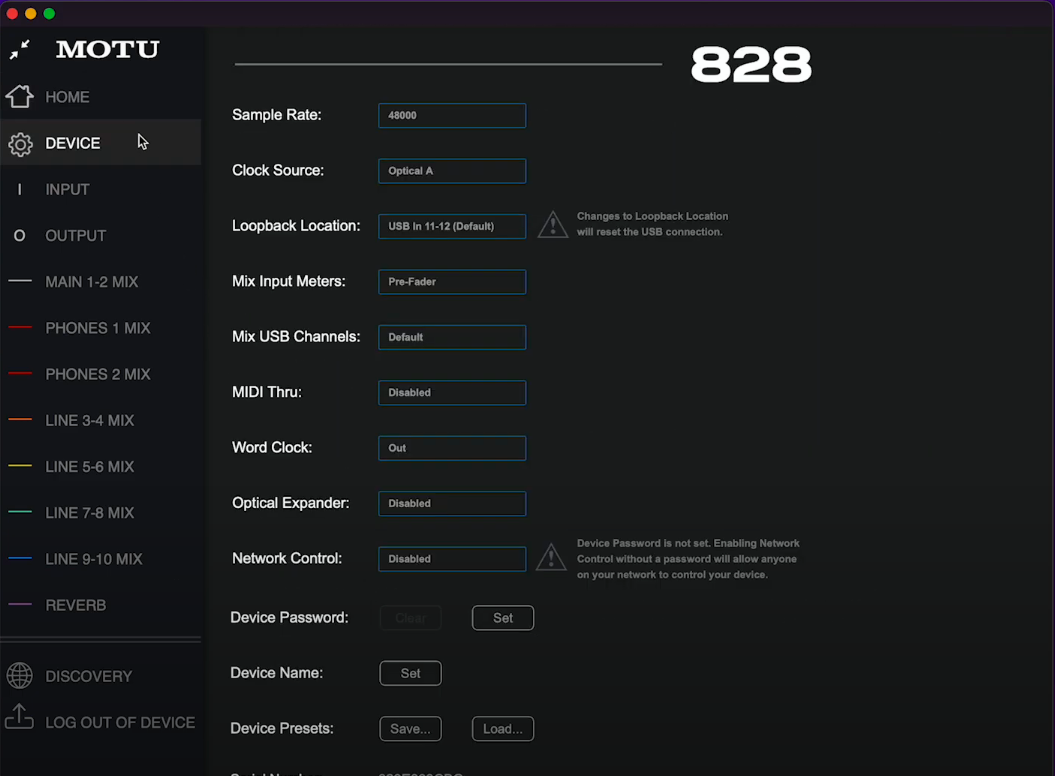

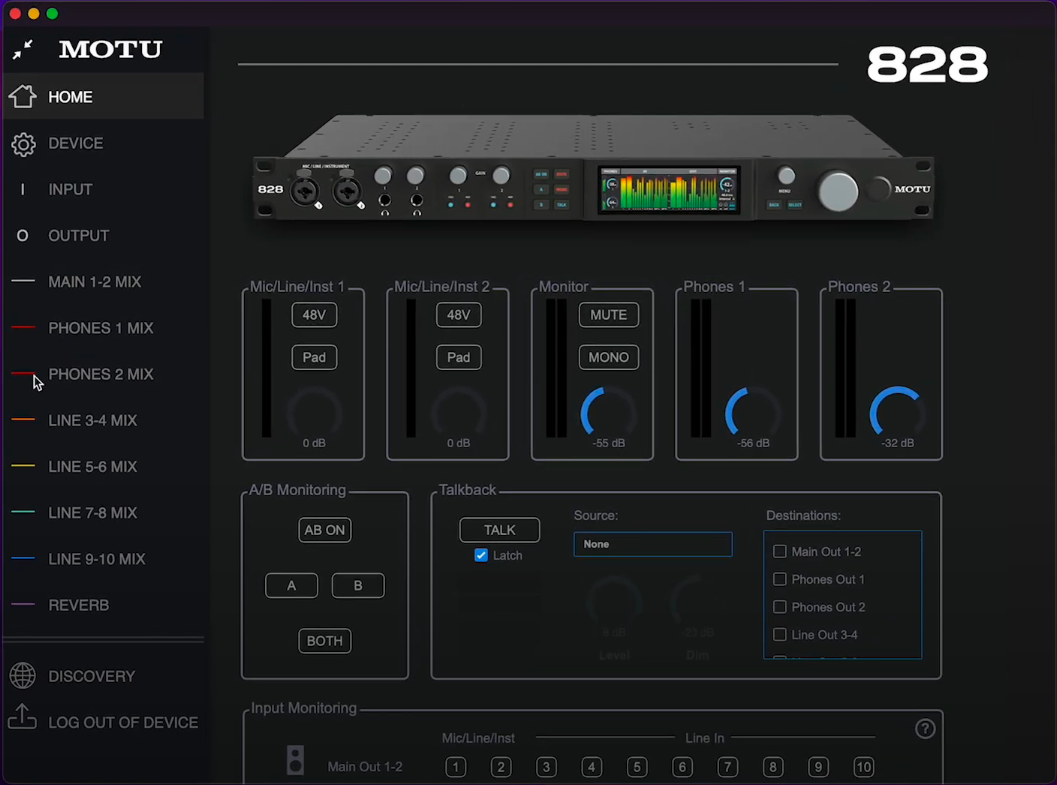

Browser-based mix and routing software

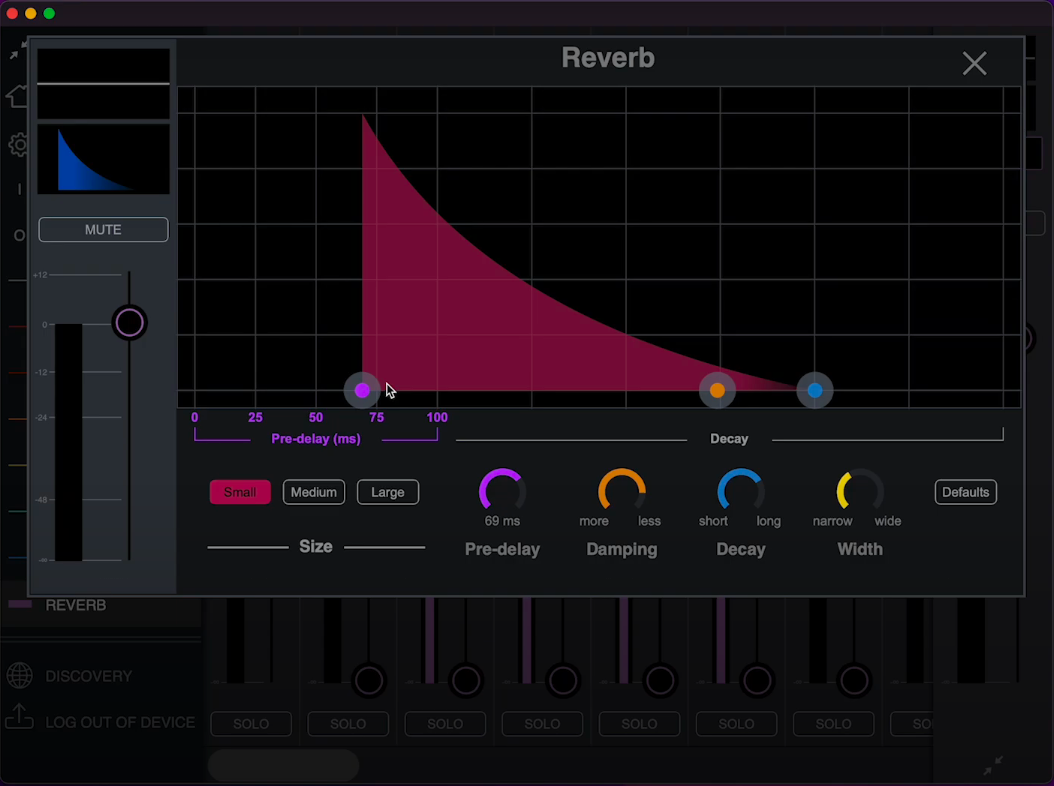

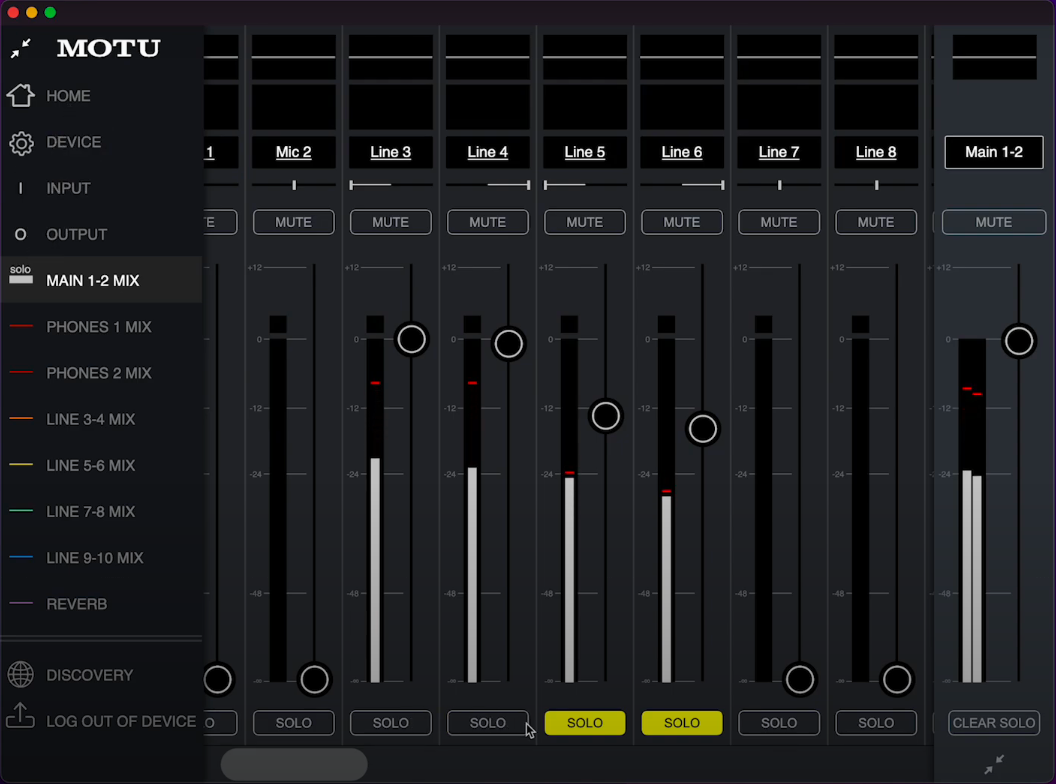

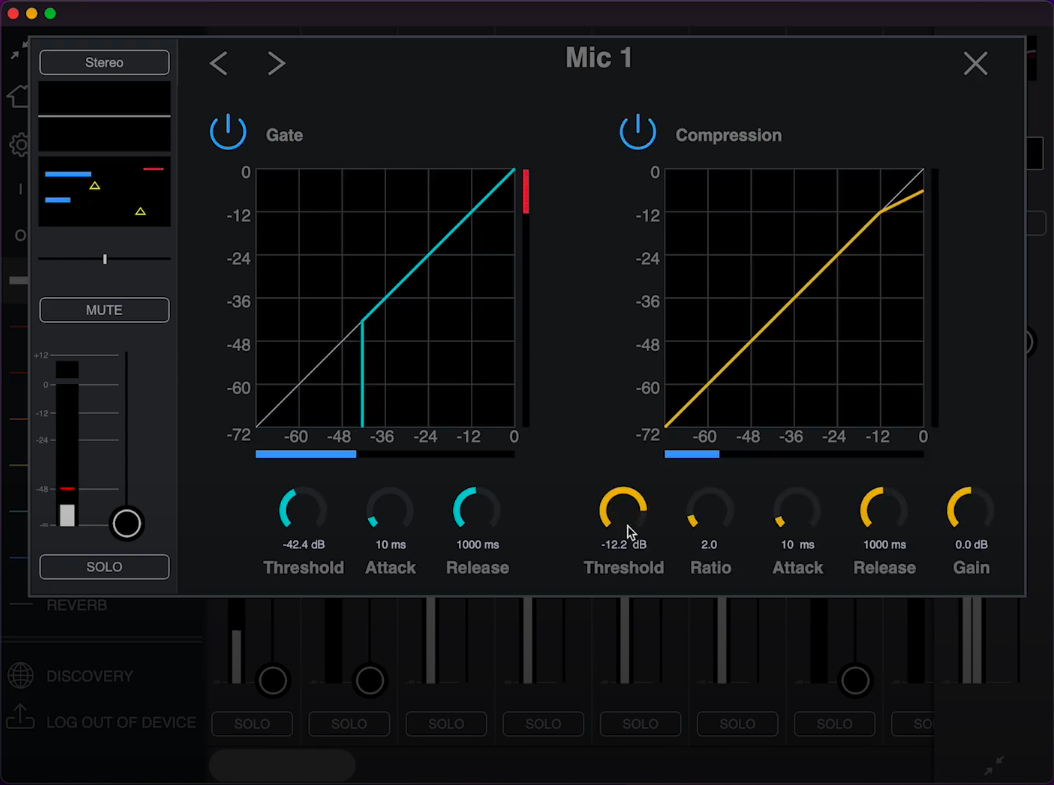

7 independent internal mixes with EQ, compressor, gate, reverb
Network control via tablet or browser
A/B monitoring with talkback function
Loopback function and real-time DSP effects

»

Videos

Q&A

Is the MOTU 828 compatible with DAWs such as Ableton Live or Pro Tools?

Yes, it is compatible with all DAWs supporting the Core Audio (macOS) or ASIO/WDM (Windows) standard.

Can the MOTU 828 be used without a computer?

No, it requires a computer for advanced routing and access to DSP effects via the control software.

Are the built-in effects usable for recording?

Yes, DSP effects (EQ, compressor, gate, reverb) can be applied directly to inputs, ideal for monitoring with processing.

Is the Loopback function available?

Yes, the MOTU 828 lets you route internal computer audio for streaming or system capture uses.

Is latency low?

Yes, the measured latency is very low, well suited to demanding uses such as live gaming or studio captures.
