Yamaha 01V96i
Images
1/674

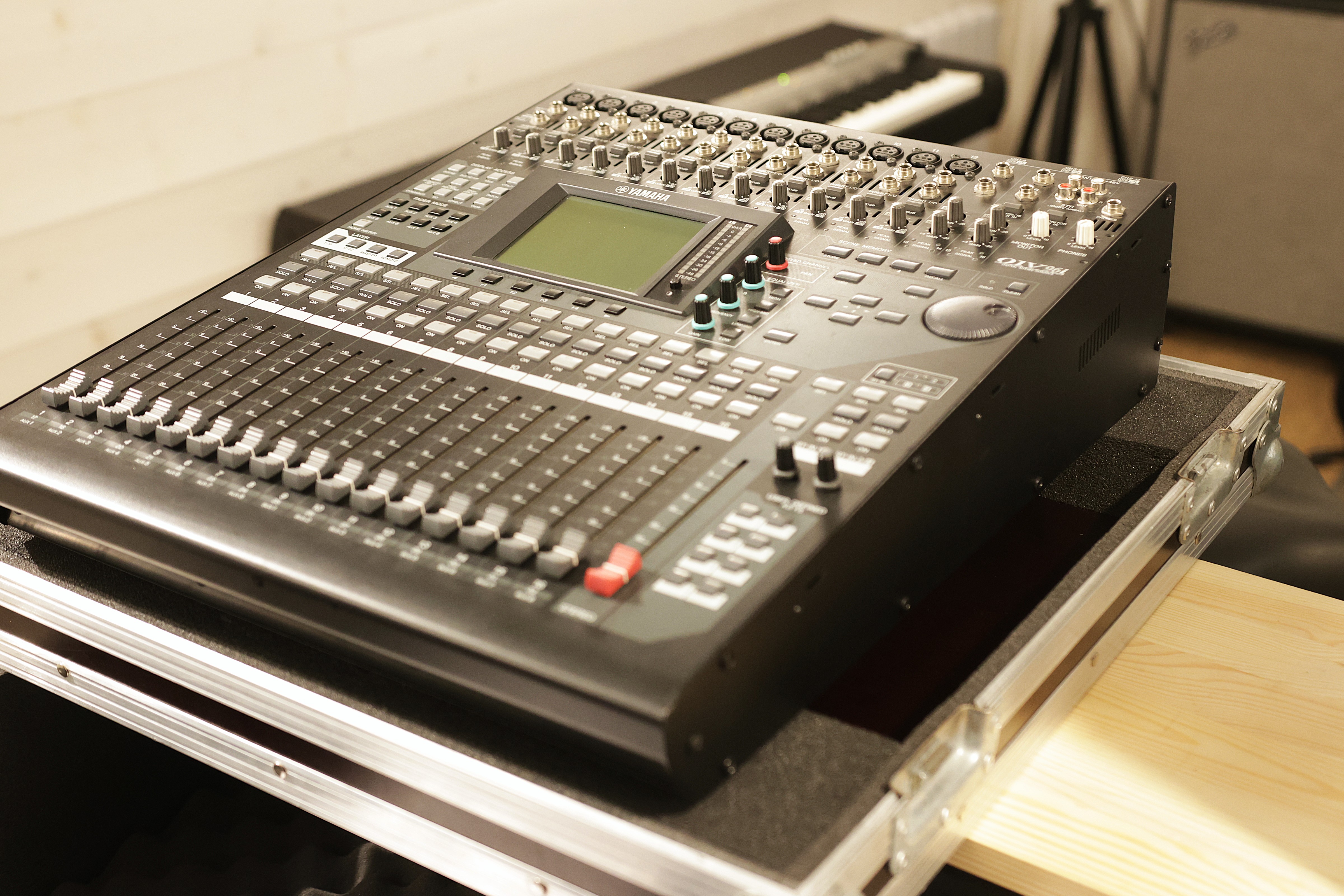

Yamaha 01V96i

Digital Mixer from Yamaha belonging to the 01V series

5 reviews
Price engine
Classified Ads
Forums

01V96i classified ad

Alerte nouvelle annonce

Images

Videos

Reviews

4.8/5
(5 reviews)
80 %
(4 reviews)
20 %
(1 review)
Write a user review
rilesriles

A good toolbox

Yamaha 01V96iPublished on 11/24/14 at 04:06
(This content has been automatically translated from French)
In summary, this is a 01V96-VCM plus 16 e / s ASIO or Core Audio-USB.

32 mono input channels on two complete layers of faders.
4-way stereo inputs on simplified two layers of knobs.
8 group buses + 8 auxiliary stereo mix bus + 1 hand. No Matrix.
4 effects processors such SPX2000 freely assignable.
4-band parametric EQ + compressor + time + insert + gate on each input channel.
4-band parametric EQ + compressor + time + insert on each output channel.

12 mic / line inputs on XLR and TRS insert freely assignable analog +
4 line inputs on TRS freely assignable
2 XLR line outputs for the main mix
4 outputs freely assignable online TRS
2 control room outputs TRS...…
Read more
In summary, this is a 01V96-VCM plus 16 e / s ASIO or Core Audio-USB.

32 mono input channels on two complete layers of faders.
4-way stereo inputs on simplified two layers of knobs.
8 group buses + 8 auxiliary stereo mix bus + 1 hand. No Matrix.
4 effects processors such SPX2000 freely assignable.
4-band parametric EQ + compressor + time + insert + gate on each input channel.
4-band parametric EQ + compressor + time + insert on each output channel.

12 mic / line inputs on XLR and TRS insert freely assignable analog +
4 line inputs on TRS freely assignable
2 XLR line outputs for the main mix
4 outputs freely assignable online TRS
2 control room outputs TRS headphone output +

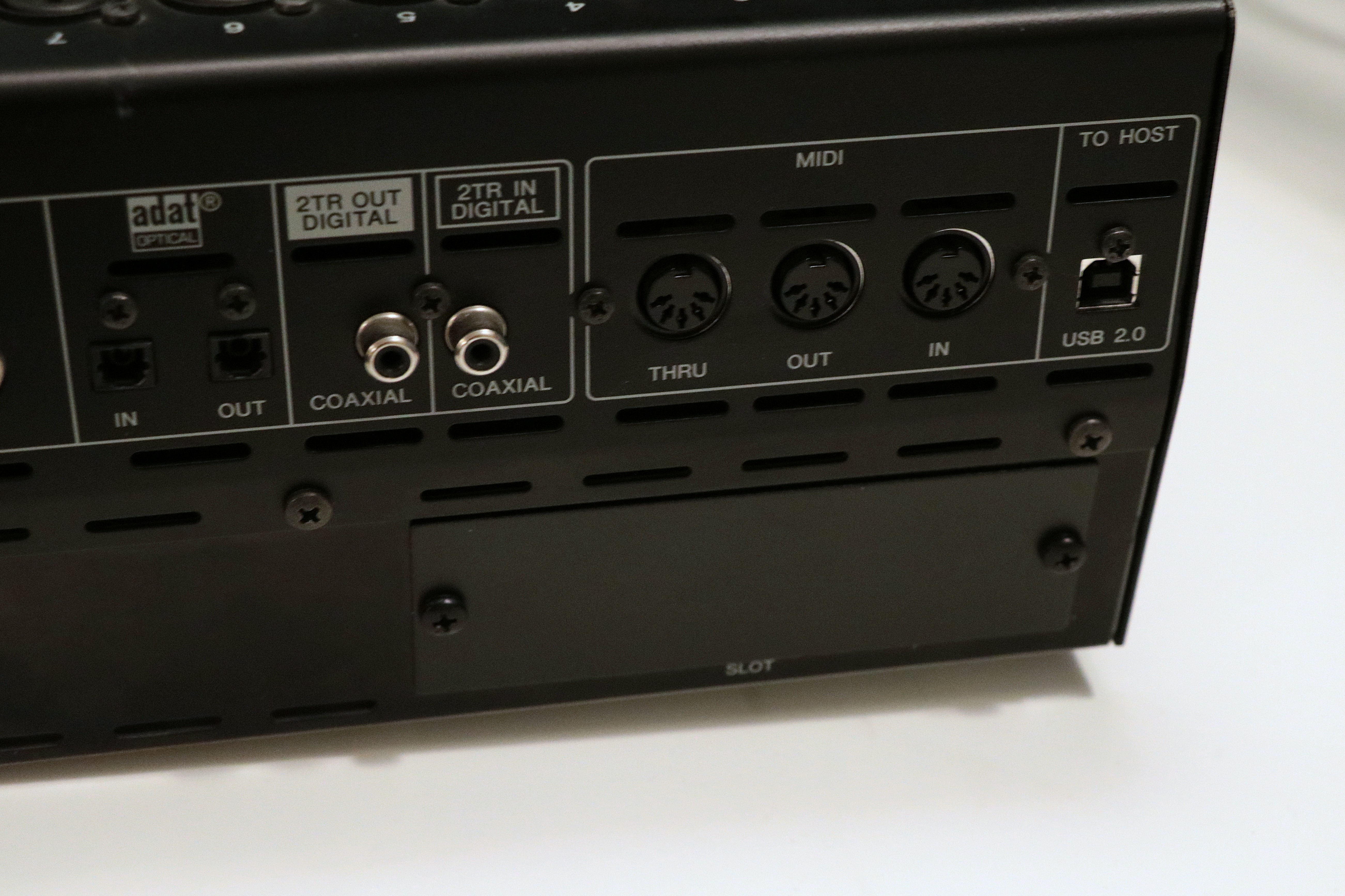

2 e / s line on RCA recorder and playback
1 e / s coax SPDIF (2 channel)
1 e / s optical ADAT (8 channels)
1 USB port with 8 i / o and 16 MIDI i / o ASIO or Core Audio (I think):

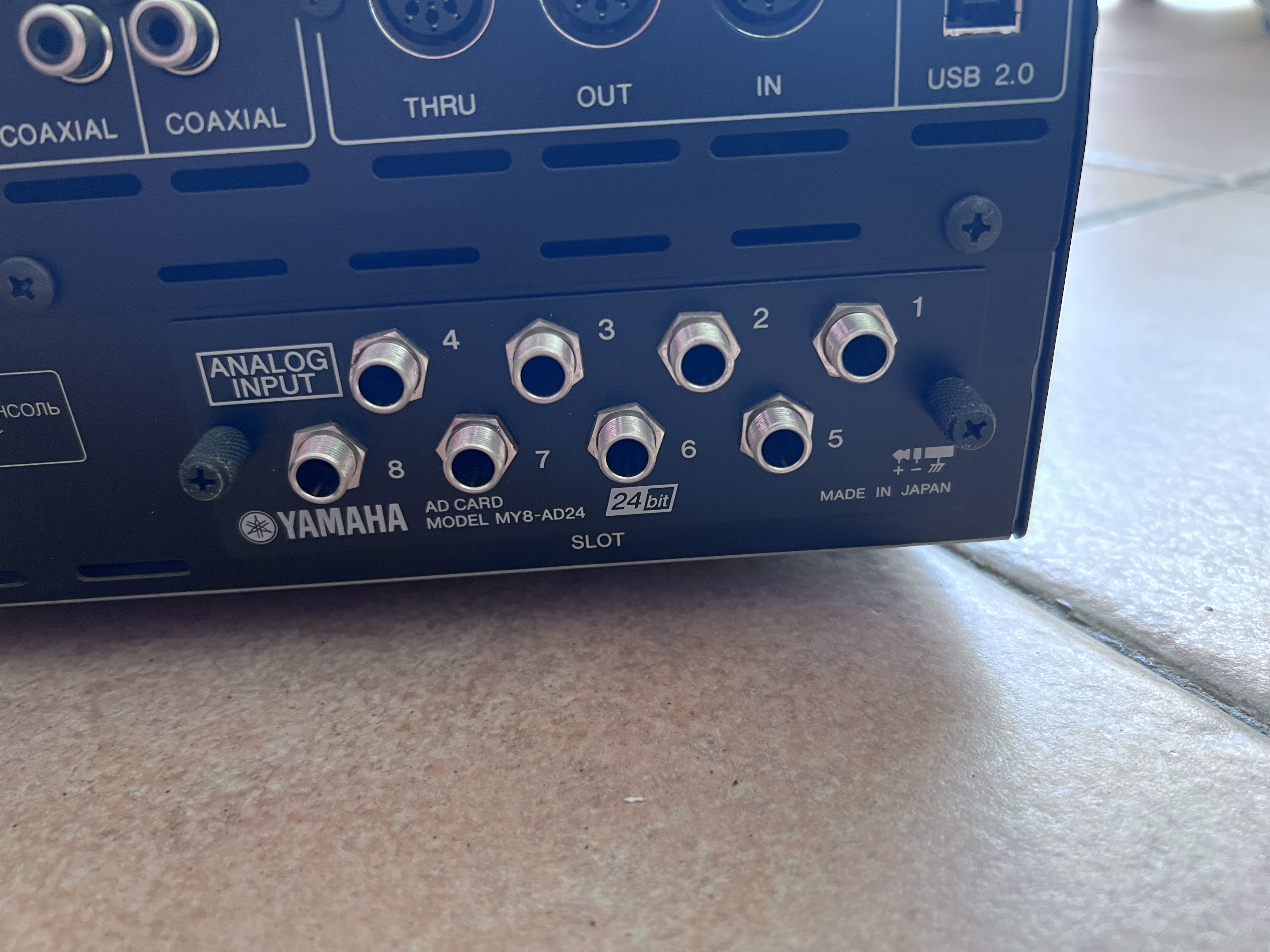

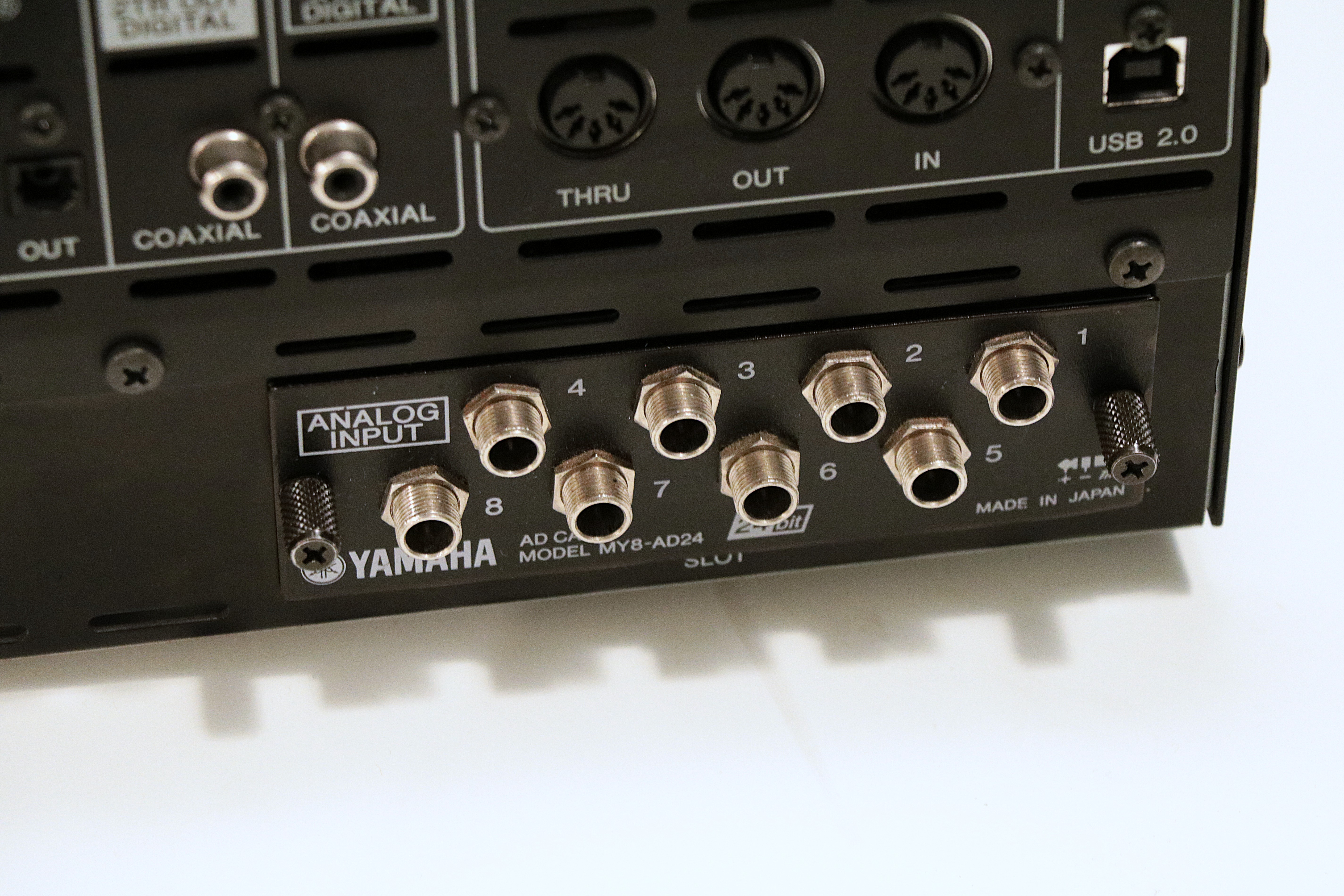

1 YGDAI expansion slot allowing to add 16 e / s in the format you want.
1 e / s BNC Word Clock
usual trio MIDI: IN / OUT / THRU

Rackable.
Scene memories. Gains / PAD are not stored.
Patch Memories.
Copy and paste from one track to another in the same scene memory or in several others.
Sauvergarde and recall all settings control + live via PC / Mac with Studio Manager.
External automation via MIDI.

Very versatile:
Traditional mixer,
Sound card,
MIDI card,
Freely configurable MIDI control surface or dedicated to the most popular DAW (ProTools and Cubase particular).



UTILIZATION

As menus! That said, the screen, small, black and white, is well organized. Above, we have general info (selected channel, scene memory, various statutes ...), surrounded the main display with all parameters accessible via the navigation buttons and scroll wheel, and bottom, a series of tabs indicating clearly where you are. The direct access to the tabs buttons (just below the screen) and User Defined Keys much easier navigation. The interface is very close to a DM1000.
Access to auxiliary sends is one pressing dedicated buttons, allowing live to be very responsive. Downside: when you're on the Aux faders, the screen always displays the menu. As soon as displays another screen (EQ, effects processor ...), the faders return to their usual function.
Access to EQ is simple: you select the track you select the EQ band, then turning the three knobs (Q, F, Gain).
Access to the pan is similar.
For other settings, you have to go through the menus, navigation buttons and the dial. It does not allow an exemplary reactivity, but it's better than a LS9.




SOUNDS

The sound is okay but not great. If you are looking for high fidelity or strong character, look elsewhere.
In terms of sound appears above the M7CL and the old 01V, 02R and 03D below.


OVERALL OPINION

I frequently use or have used many of Yamaha digital consoles (ProMix01, 02R, 03D, 01V, DM1000, DM2000, 01V96, LS9, M7CL), only very large PM1D and PM5D are barely past my fingers. I do not like so much these consoles: Yamaha is cheese OR dessert ... Apart from the very high end, there are always features that are missing, and the more expensive models are best served. I think Yamaha pays his pioneering liability in the mixer for live and struggling to get out of its archaic designs.

The M7CL a bright color display (vaguely touch, you have to cut the nails, calluses erase her, do not press too hard or not enough), but no delay on the input channels (essential for the rephase microphones of battery).
The LS9 also has a color screen, but not touch at all. Ergonomics is worse than a M7CL, but also worse than a DM1000 or 01V96, it is the level of the old 01V, but in color. In short, the time to navigate to the feedback of the time, the song is already over. No reggae with LS9.
The DM2000 is a liner, but there are only two knobs for EQ band: you have to press one of them to move from Q to the frequency and vice versa. This is crap.
Those that seem suitable, it is the DM1000 and 01V96. (I do not quote 02R96 I never used). From there we can discuss the tone.
The new CL series and QL seem to avoid the pitfalls of city-and a few others, but I remain cautious ...

It's been a few years that all console manufacturers have gone digital. Unfortunately, I am a victim of Yamaha steamroller that crushed the console market in France, so I have not really had the opportunity to use all the models, except for the Sy48 Innovason ( easy to use when you are met and super) a small Presonus (which I recommend), a Soundcraft with remote patch.

To return to the 01V96i:
I like its compactness, its comprehensive features, the integrated ASIO driver. I will accommodate her any sound.
I use it a lot in theater direction: it simultaneously uses his card, MIDI controller, and dissemination processor. Each show is saved in Studio Manager. I have not seen more convenient for the theater.
In concert, ergonomics and sound quality are not ideal, but its compact size, functionality and price make the still very useful when resources are limited.
In the studio, I use it as a control surface for Pro Tools (also manages other DAW), as the card (priority I am using e / s with digital converters and preamps) and as listening without mixer latency. Similarly, Studio Manager allows me to save the config of each session.
See less
»
Tralala4Tralala4

Yamaha 01V96iPublished on 04/10/13 at 11:13
(This content has been automatically translated from French)

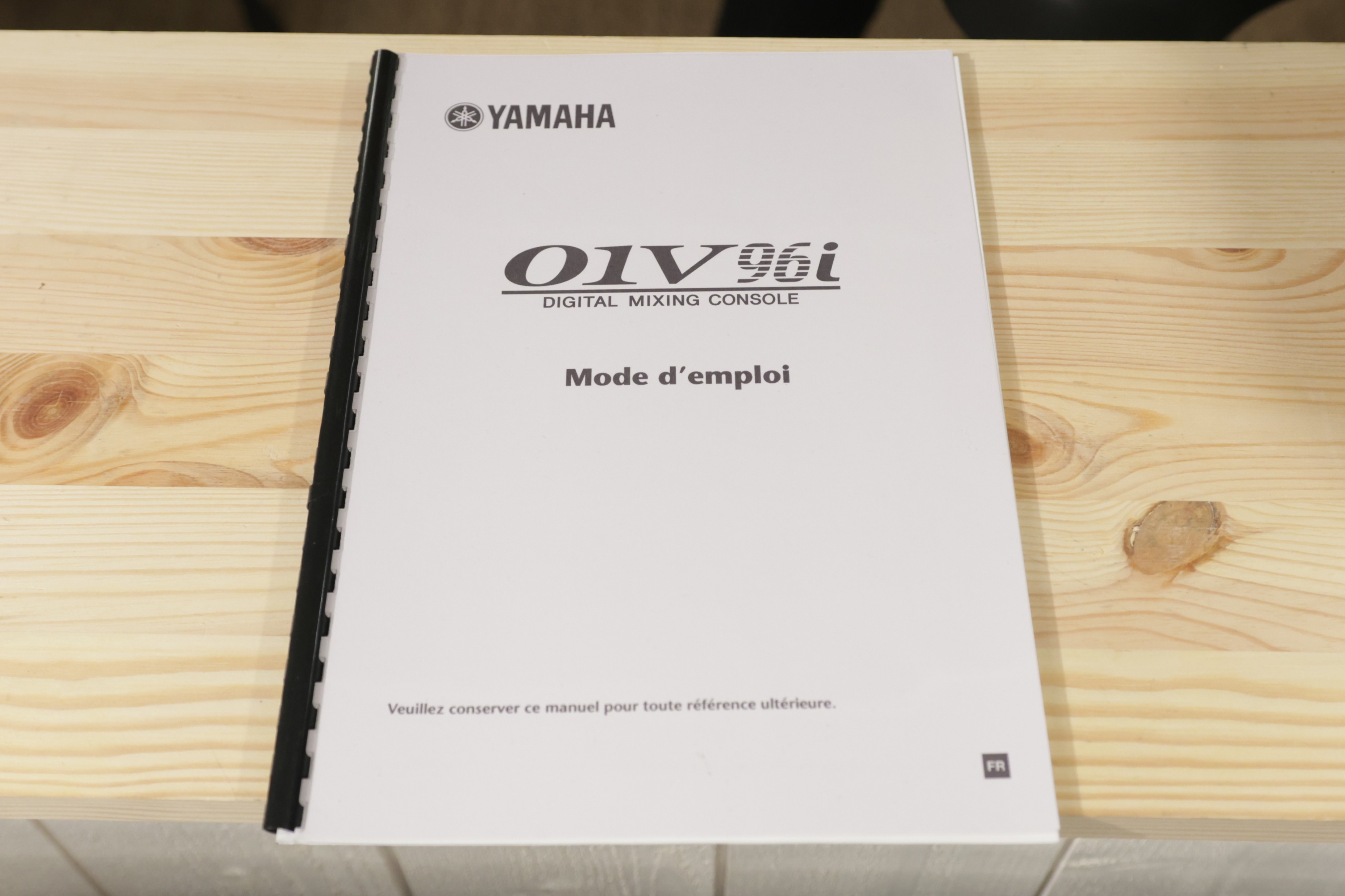

As usual, I suggest you download the manual fr.
The features are too numerous to detail here.

At its features, it is able to do ANYTHING with a significant connectivity and especially thanks to EVOLUTIVE optional cards that can add to it.

The connection 16 in / out USB is really good (no problem, all PC / MAC have!)

Lowlight: the switches for the power supply fantom a little seedy ...

UTILIZATION

The setup is the height of his abilities. There are a lot of things to do but the logic is respected compared to other materials:
-Install the ASIO drivers
-Install the driver table
-Install the software management table (studio manager)

The manual is clear and French ......…
Read more
As usual, I suggest you download the manual fr.
The features are too numerous to detail here.

At its features, it is able to do ANYTHING with a significant connectivity and especially thanks to EVOLUTIVE optional cards that can add to it.

The connection 16 in / out USB is really good (no problem, all PC / MAC have!)

Lowlight: the switches for the power supply fantom a little seedy ...

UTILIZATION

The setup is the height of his abilities. There are a lot of things to do but the logic is respected compared to other materials:
-Install the ASIO drivers
-Install the driver table
-Install the software management table (studio manager)

The manual is clear and French ... It's worth taking two days to read quietly with the table under the eyes.

As for the usual functions of the table there is a logic that repeats itself all the time. Once we understand this logic, it is a breeze.
FOR NEW USER the 01V96i: you will encounter moments of blocking always find a solution. To fully master the beast, it is essential to TAKE THE TIME TO UNDERSTAND! Useless to mix the night of the reception of the machine, you run the cata ... unless you have the habit of numerical tables.

All functions are easily accessible above the usual features: layers, patch etc ...
I compared with STUDIOLIVE 24 ... it is different but not better especially LESS STRONG!

SOUNDS

Converters are absolutely transparent. Nothing to say.
I tested the machine REAPER under CUBASE SX, TRACKTION ...
This is clear. The preamps are flexible and linear provided it gives them a sufficient signal recess. Their power did not yet lacking (guitar piezo, piezo violin, voice, etc ...)

DYNAMICS: we have a battery of compressors, EQ configurable to infin but with very useful preset
I use this table to mix in studio effects and use the table to save CPU my laptop. I prefer effects (classic reverb, comp, eq) of the table to those CUBASE or REAPER. This is great when mêm mix live rather than see flashing on a screen.
It stores all settings in a memory bank ...

Unfortunately (or not?) She is still young and poorly recognized by the remote for DAW ... but that will come. Must set the daw hand!

OVERALL OPINION

I had a very complex set 01v96v2 for recording because Yamaha mLAN system.
But now it is night and day! Finally, the USB!

I compared with STUDIOLIVE we were talking so much!
I much prefer the solidity and reliability of the 01V96i. (Just call customer service to see yamaha 0164614047 ... top!)
Besides, we all know at least one old 01v which still works!
I love everything about this table and especially its USB interface that can record 16 in and 16 out in any app!

Icing on the cake: the software management table (StudioManager) which allows you to set the table, the piloting entirely from a computer and especially ... record all configs, all settings ... It is really useful!
Its price is placed in the middle of the competition, but it carries on the seriousness and solidity.
Presonus tables I tested look like toys ...
And they are firewire interface definitely dying.
See less
»
FreeToProFreeToPro

Quite the beast!

Yamaha 01V96iPublished on 12/14/12 at 01:32
(This content has been automatically translated from French)
See manual

UTILIZATION

The general configuration is it simple?
for someone who does not know anything or at least not much, but it is laborious eventually find its footing. patience and logic.
The usual functions are they easily accessible?
Starting from the factory config and tjrs a novice in 5 minutes it can swing sound.
The manual is clear and sufficient? Definitely yes to the freedmen but if not clear enough. But hey, we will not ask them to slip inside the box during sound engineer.

SOUNDS

Overall very good.

OVERALL OPINION

How long have you been using?
3 months
What is so special that you like most and least?
freedom of routing that's cool! Against by the...…
Read more
See manual

UTILIZATION

The general configuration is it simple?
for someone who does not know anything or at least not much, but it is laborious eventually find its footing. patience and logic.
The usual functions are they easily accessible?
Starting from the factory config and tjrs a novice in 5 minutes it can swing sound.
The manual is clear and sufficient? Definitely yes to the freedmen but if not clear enough. But hey, we will not ask them to slip inside the box during sound engineer.

SOUNDS

Overall very good.

OVERALL OPINION

How long have you been using?
3 months
What is so special that you like most and least?
freedom of routing that's cool! Against by the tiny button for phantom power is not a good idea.

Did you try many other models before buying it?
not

How do you rate the quality / price?
This is a big budget when m ^ me! But in the end what satisfaction

With experience, you do again this choice?
yes without hesitation
See less
»
micheljulienmicheljulien

Of happiness!!

Yamaha 01V96iPublished on 05/04/12 at 16:05
(This content has been automatically translated from French)
Rackable 19 phr, optional kit (are a bit stingy though)

See the specifications in Yam, it would too much for my ptits fingers (and my brain has not registered any!!)

There's everything you need little (semi pro)

UTILIZATION

Good that comes from my analog it asks me hard, but I have no training at the base and I find the sound "as the last 4 years" in spite of everything, I manage to secure some prestas live, and Best of all, I even catch his 16-track via the usb.

So I would say that this creature was subdued and relatively easy

The manual in pdf, it is not always simple

SOUNDS

For me coming out of a mackie cfx20, it has changed my life, this may be psychological, I...…
Read more
Rackable 19 phr, optional kit (are a bit stingy though)

See the specifications in Yam, it would too much for my ptits fingers (and my brain has not registered any!!)

There's everything you need little (semi pro)

UTILIZATION

Good that comes from my analog it asks me hard, but I have no training at the base and I find the sound "as the last 4 years" in spite of everything, I manage to secure some prestas live, and Best of all, I even catch his 16-track via the usb.

So I would say that this creature was subdued and relatively easy

The manual in pdf, it is not always simple

SOUNDS

For me coming out of a mackie cfx20, it has changed my life, this may be psychological, I still does very little confidence in my ears, (you know, the kind of spirit to sondier always begging for advice goal on a these are his buddies zicos!)

In all cases after them, too cool at all levels!

OVERALL OPINION

I've had one month, and I already know how I did without it!

I sort of analog (Mackie cfx20, rack comp / equalo / multi effect ......) frankly reduce the weight of the gear at this point, for me it's magic, even if this requires too much hassle a little in the menus and settings!

What I like least: The price (2100 € in AVLS which is the best take I've found) in the omni outputs Djack out (but then I think I push the plug!!)

In ctte price range, I recommance tomorrow Aplus twice, LS9 16 why not! (Who sponsors me?)
See less
»

Audio excerpts

Tech. sheet

  • Manufacturer: Yamaha
  • Model: 01V96i
  • Series: 01V
  • Category: Digital Mixers
  • Added in our database on: 11/14/2011

We have no technical specifications for this product
but your help will be much welcomed

»
