Twin Sound"It would be ideal if UAD offered a less expensive Apollo with only two mic preamps," we wrote in our review of the first Apollo almost two years ago, and also, "Given the choice of transparent-sounding preamps, it would be no surprise to find vintage preamp emulations in the future. Just wait and see." The time has come now to welcome the Apollo Twin Read more…
Universal Audio Apollo Twin Duo tech. sheet
Model:Apollo Twin Duo
Category:Thunderbolt audio interfaces
Added in our database on: 01/23/2014
We have no technical specifications for this product but your help will be much welcomed
While there's been plenty of lunar references in the many reviews for the new Apollo Twin series that are all over the web these days, the notion of "all in or bust" particularly applies to this review. I turned my entire home studio upside down on the flip of a coin that a new Apollo setup would simplify and improve my workflow. See I had grown quite comfortable and familiar with my surroundings, my 2008 Mac Pro tower, the trusty old RME Fireface UC connected via USB, and my centrepiece channel strip, my old LA-610 from UA. The last of my old setup, the LA-610, was especially the hardest to give up. You only have to read my in-depth review here on Audiofanzine to understand that. But the bottom line was, the setup had become too comfortable, and I had accepted it's limitations for too long. Looking to rejuvenate my recording process, I threw it all out the window for one, small silver box....the Apollo Twin Duo.
This may have seemed like a crazy downgrade to some, but after assessing all of the Apollo's features and comparing them to my own studio’s capabilities, I quickly realised I was in fact making a huge upgrade, but with a much smaller footprint. Let me point out some advantages:
1) Are the Tubes done yet?....I do many things in my studio space, music obviously, but also sound design, film editing and graphic design. When a musical idea strikes or a music-related project presents itself, I often only have a narrow window of time to lay it down. Due to the sporadic nature of these projects, having to plan ahead to turn the LA-610 on an hour in advance to heat the tubes up was too much of a headache. Additionally, if my plans changed and I didn't end up being able to record, but had already pre-heated the tubes, I felt like it was such a waste of power and tube life. With the Apollo, I simply turn on the switch, load the exact same preamp module as a plugin in the designated preamp insert point and I'm ready to record. One cable, no wait. But does it sound as good…yes, and I’ll prove it later in the review!
2) Stability and Simplicity- When I started recording as a hobbyist before taking on professional projects, I came up through the ranks of sound cards like everyone else. First was the ol’ M-Audio Fast Track, then on to an Edirol FA-101 and ultimately I settled on an RME Fireface UC. By the time I got the RME, I was taking on professional projects and had a huge appreciation for driver stability and sound quality. But even then, the USB drivers always had quirks with Pro Tools 9 and every so often the RME would go MIA. There was also the minefield that is RME’s TotalMix software that I had to navigate on a regular basis. Configuring inputs and outputs with Pro Tools was always complicated and it was always a nightmare figuring out what sound was being routed where….with Apollo however, this is all automatic. The Console software, works just like a small analog board and it’s routing capabilities are very intuitive. Also, it’s I/O automatically configures itself with Pro Tools. Additionally, because it connects via Thunderbolt, it uses a PCIe driver, that not only blows the USB connection out of the water in terms of data transfer rate, but also in terms of stability. In the first month of regular abuse, the Apollo has yet to loose communication with Pro Tools.
3) Latency - The biggest draw to Thunderbolt is that it matches hardwired, PCIe speeds, meaning recording at lower buffer sizes is feasible with minimal latency. The argument that manufacturers like RME make in this regard, is that in Low-Latency mode, Pro Tools bypasses it’s own output and allows you to monitor solely through the DSP-powered mixer on your sound card, thus in real-time with zero latency regardless of your buffer size. This is true…unless you are using software instruments or guitar emulations. In that case, you will only hear the DI sound from your instrument and won’t be able to monitor with fully processed sound. Apollo makes low-latency recording incredibly easy as well as monitoring with plugins. Because Apollo automatically works with Low Latency mode, there is no configuring and muting tracks to achieve direct monitoring with PT: when you record-arm a track in PT it is simply only heard through Apollo. Because Apollo can load UAD plugins, you can place a preamp, a guitar amp emulation, and even a compressor in the signal path all in real time with no latency before the sound is even sent to PT…that is something no other sound card can do at the moment. You can also have additional Aux sends set up within the console app with reverb and delay plugins in real time to further improve your monitoring experience and ultimately your performance.

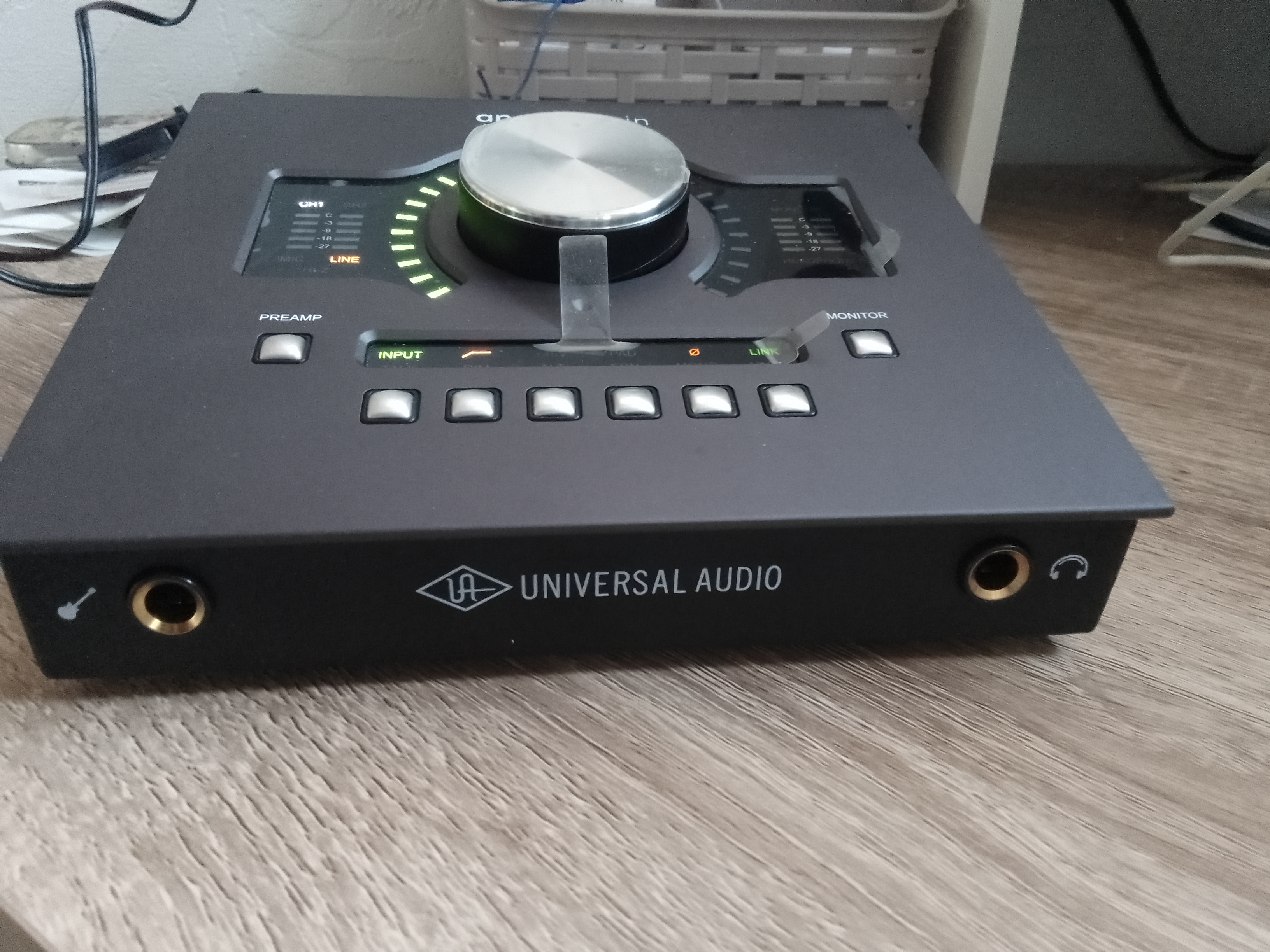

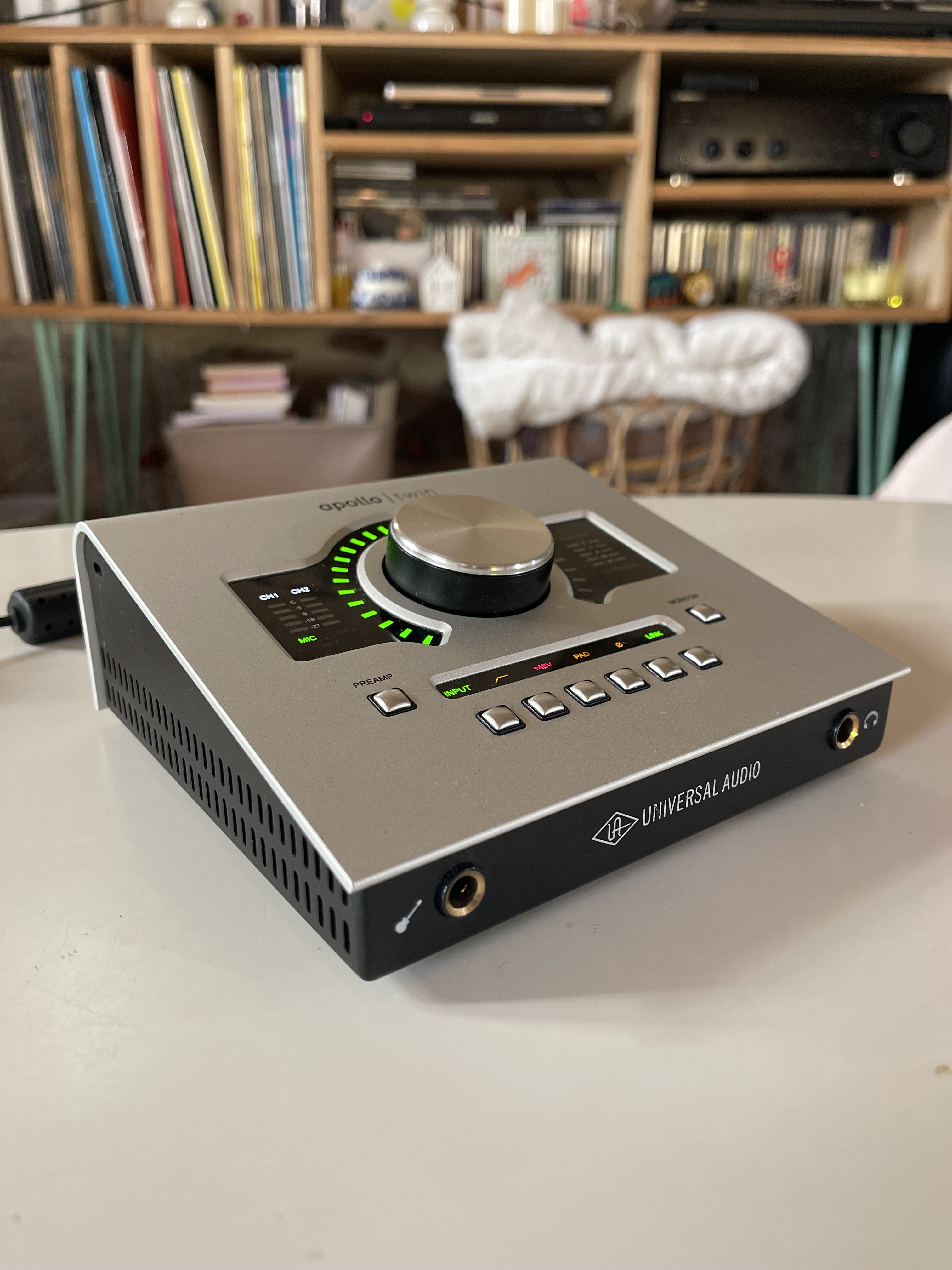

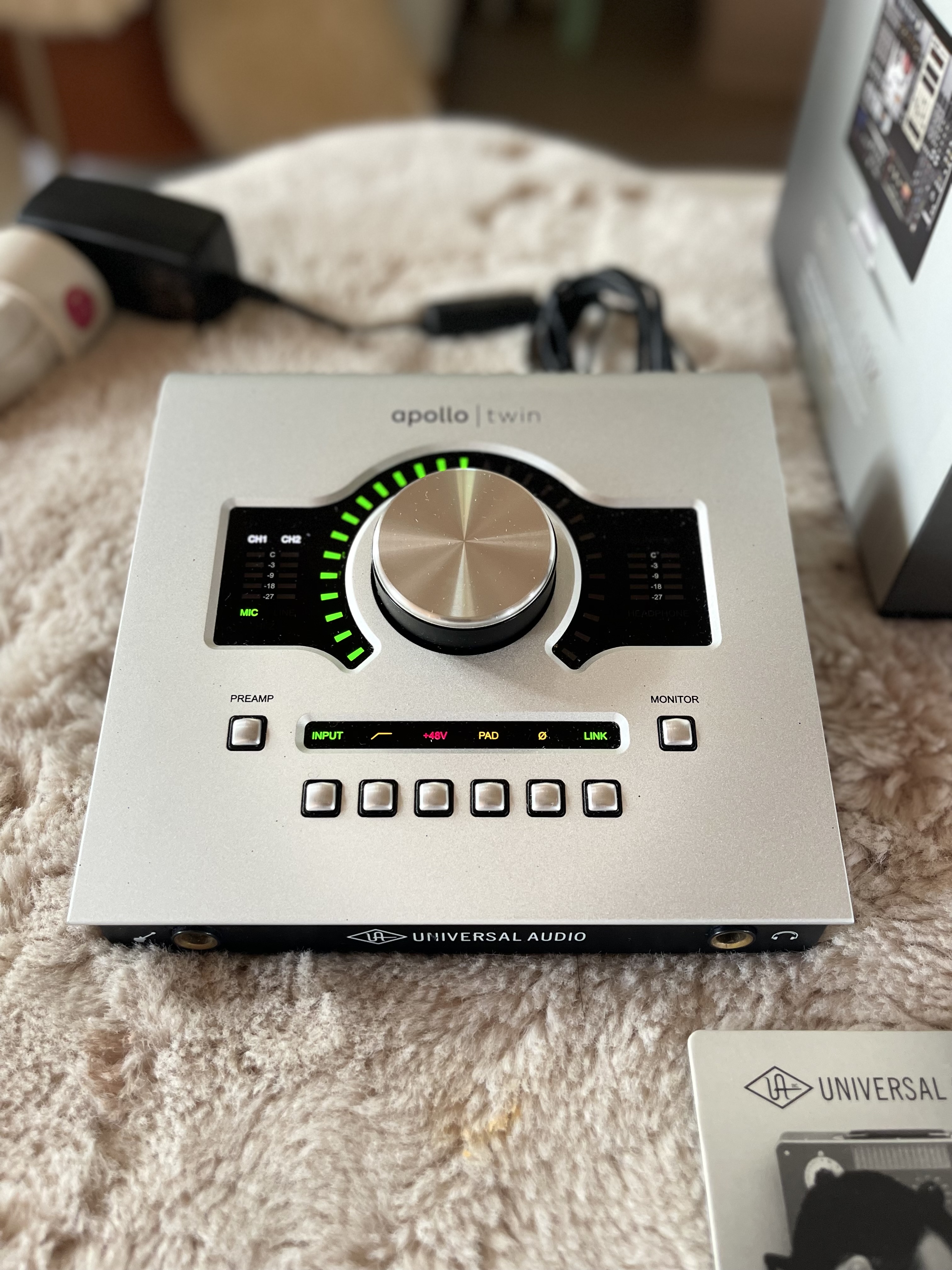

4) Hardware controls - The physical design of the Apollo Twin is also a huge upgrade over my old Fireface. Navigating monitoring levels was just too complicated for the Fireface’s tiny numeric display and I found myself constantly adjusting monitor levels with my mouse in the TotalMix window. The Apollo interacts more sensibly. It’s desktop design means it doesn’t have to be tucked away in the rack, but rather it can sit on my desk at arm’s reach. The ability to intuitively switch between monitoring on speakers or headphones is a huge improvement in my workflow. The ability to switch between preamps on the fly and adjust gain and other parameters is also a breeze. It’s no-fuss, no-manual-required operation.
5) One and done…I’ve probably used the words ‘simple’ or ‘plug and play’ in various forms quite a bit so far in this review. That’s because it’s the characteristic that has made the Apollo such an upgrade for me. One Thunderbolt cable and I’m done. I have all of my UAD instances loaded up in my channel strips in real-time, which means top quality processing with zero latency and no laborious patching of cables between physical outboard gear.
So what about in use? Below I'll walk through some instances of where I've used Apollo and UAD processing in conjunction with Pro Tools 11 on some recent projects.
In a recent soundtrack project I was working on, a filmmaker friend of mine had another friend of his, who is a talented singer-songwriter, record a cover of Neil Young’s “Tell Me Why” to be played over the final credits. While his friend is a terrific guitar player and singer, the recording methods used were less than desired. The vocals were recorded in 16 bit audio on a Zoom handheld recorder, so when it was sent to me for mix-down, I had to be creative. Thankfully, Apollo allowed me to do some clever re-amping, which when combined with some additional UAD processing worked some real magic.
I then proceeded to trim and adjust the timing of the backing vocals, tightening up the whole composition. I then re-amped the individual vocal tracks, using a mono output from the back of Apollo and looping the sound back in through one of the Mic inputs. I loaded up a Neve 1073 in the preamp slot, adding some saturation and using the EQ to manage the low-end, while bringing out some top-end sheen. Then the vocals hit an LA2-A Silver from UA’s newer LA2 collection of plugins, with gain reduction ranging form 6 to 12db. The sound was then printed back into PT. I could have presumably loaded these plugins ‘in the box’, but with Apollo I like the idea of passing the signal back out through the physical impedance stage of the mic preamps, just as I would with the real analog gear. Here is the result: https://en.audiofanzine.com/external-audio-interface/universal-audio/apollo-twin-duo/medias/audio/a.play,m.473945.html
Finally, to fill in the gaps created by the tight-trimming I did to remove the background noise, I set up two Aux tracks in PT, one with an EMT 140 plate for the backing vocals and one with a RE-201 Space Echo for the lead. The plate gave a nice, warm resonance and sustain to the backing vocals placing them within a well-defined space, and the dual short echoes of the RE-201 combined with its distinctive spring reverb gave an early Neil Young, tape slap effect to the lead vocal. Additionally, I used an instance of UA’s 1176 REV-A compressor (the blue stripe) with a slow attack and fast release to add some pumping energy to the lead vocal so that it would stand out from the pack: https://en.audiofanzine.com/external-audio-interface/universal-audio/apollo-twin-duo/medias/audio/a.play,m.473946.html
I said before I’d prove Apollo adequately replaced my LA-610. Below is the sample I used in my review of the LA-610 using an Epiphone Viola Bass. Next is a sample using the same bass with the same-preamp emulation, combined with an LA2-A compressor plugin inserted in the Apollo Console app during tracking.
In this instance, I was trying to record some vintage Wurlitzer sounds to help drive the rhythm section of a song. Using the Wurly sounds from GarageBand on my iPad, I was able to use Apollo and UAD processing to transform the original, digital recording.
The Apollo Twin is also a dream for guitar players who have struggled with home recording and guitar amp emulations. I took the new Chandler GAV19T Amp emulation for a spin and was blown away with the results. I found I could load an instance of the Neve or UA preamps first to improve the DI Signal and then insert the Chandler to get my amp sound. All of this is accomplished with zero-latency, resulting in the best picking dynamics and playing experience I’ve had with any sound-card/amp configuration. I also love the fact that I could throw a Fairchild 660 after the Chandler, basically giving me a world-class rack compressor with extra tube character. Furthermore, I could choose to monitor only with the plugins and record the dry DI guitar signal into Pro Tools, so I could reamp and maintain flexibility later on in the mix. Even better is the ability to record both the dry and wet! Simply choose to only monitor with plugins, and print your main track dry. Also, simultaneously set up another track in your DAW to record one of the AUX channels. Then, in the console app, send the monitored sound of the amped guitar to the Aux send with no inserts loaded, and the full wet sound will be recorded to that second track. Voila, double tracking and reamping in the box with zero latency!
Here’s a good taste of the Chandler plugin, tracked through Apollo with a 610-A preamp preceding it and a Fairchild 660 succeeding it.
What about stereo recording acoustic instruments? Sure, why not. I set up to record some Acoustic Slide for a recent soundtrack project, with a down-home, ‘sitting on the porch’ type of vibe in mind. I put an AT4033 on the 12th fret and ran that through the first preamp on Apollo using the 610-A emulation. Using the same preamp configuration in the second channel, I completed my stereo image with an SM57 close miked near the bridge.
Here is the same recording, with some additional processing in Pro Tools. Each track was given an instance of Studer tape for some vintage vibe, which was doubled up with some healthy compression from a pair of Fairchild 660s. Pultec EQs were then used to tighten the low end and enhance the top-end. With the tone dialed in, a subtle instance of the Roland Space Echo on each track gave a nice tape slap effect, before the whole performance was pumped with extra grit and attack via a ‘blue-strip’ 1176 compressor.
Similar to treating the vocals and the Wurly keys, re-amping through the impedance stage and the Neve 1073 emulation works wonders on digital strings. This composition was performed on 4 tracks using the Strings instrument in GarageBand on the iPad. In this first, dry example the thin, digital sound is evident. In the second example, simply passing the tracks through the 1073 without any added gain or EQ adjustments instantly enhances the stereo image and the organic quality of the composition. In the third example, the additional saturation from the Neve preamps and some broad strokes with the EQ go a long way to overhauling a previously anaemic and digital sound.
As I've previously stated, the Apollo is incredibly intuitive and easy to use. Simply download the UAD software from their site after registering your Apollo, install it and you're good to go! The driver automatically configures the I/O and Low Latency mode in Pro Tools and the Play/Pause controls overlap between the Console app and PT, so there's no switching back and forth to audition tracks. I've been using it for a month now with Pro Tools 11 on a mid-2011 Mac Mini and I have experienced nothing but flawless performance in OSX Mavericks.
In this price range, I feel the quality of Apollo's preamps and A/D converters are unmatched by anything that's not 3 or 4 times it's price. The ability to track with UAD plugs, particularly dry and wet signals simultaneously through some clever routing in the Console app, is also a huge coup and one that goes a long way to bridging the analog and digital domain. Most importantly is the ability to turn it on, plug it in and record with flawless performance and uncompromising sonic quality. Nowadays, with DAWs like Pro Tools and Audio Interfaces like Apollo all within consumers' budgets, it's perfectly feasible for the home recordist to achieve professional recordings on their own, which could be brought into a professional studio for mix down without the need for re-recording. In other words, technologies such as these have empowered a new era of independent musicians.
+Flawless performance and stability
+Automatic configuration with most DAWs
+World-class A/D converters
+Pristine pre-amps with endless capabilities through emulations
+Real-time UAD processing
+Easy to use DSP mixer with intuitive, analog interface
+Intuitive, time-saving hardware controls (particularly monitor controls)
-UAD plugs can be viewed as either a best life decision or a slippery slope...it's a big investment that will put off some, but if you're already a UAD user and own a lot of their plugs, welcome to your next frontier!
-Only works with Thunderbolt compatible computers

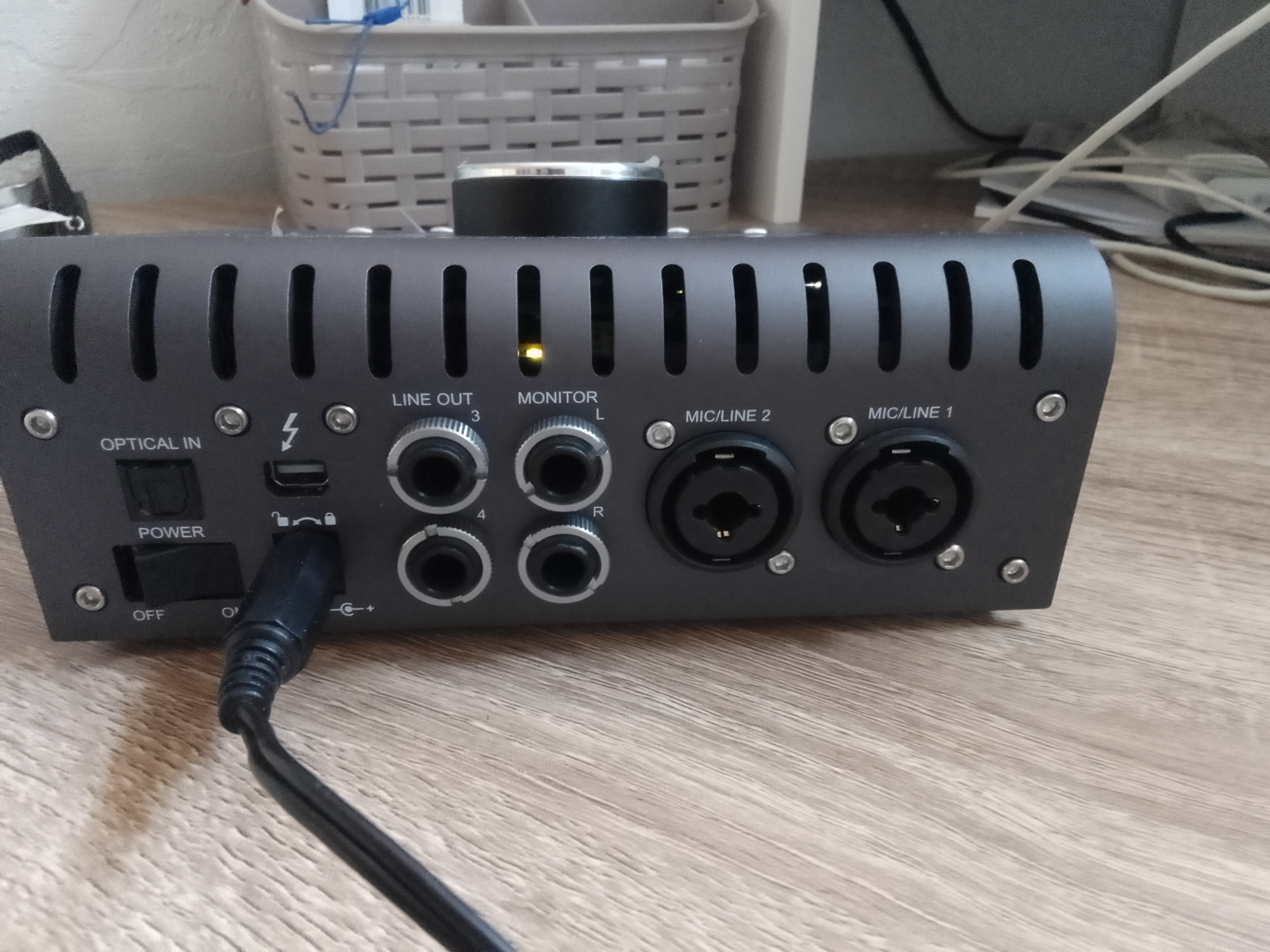

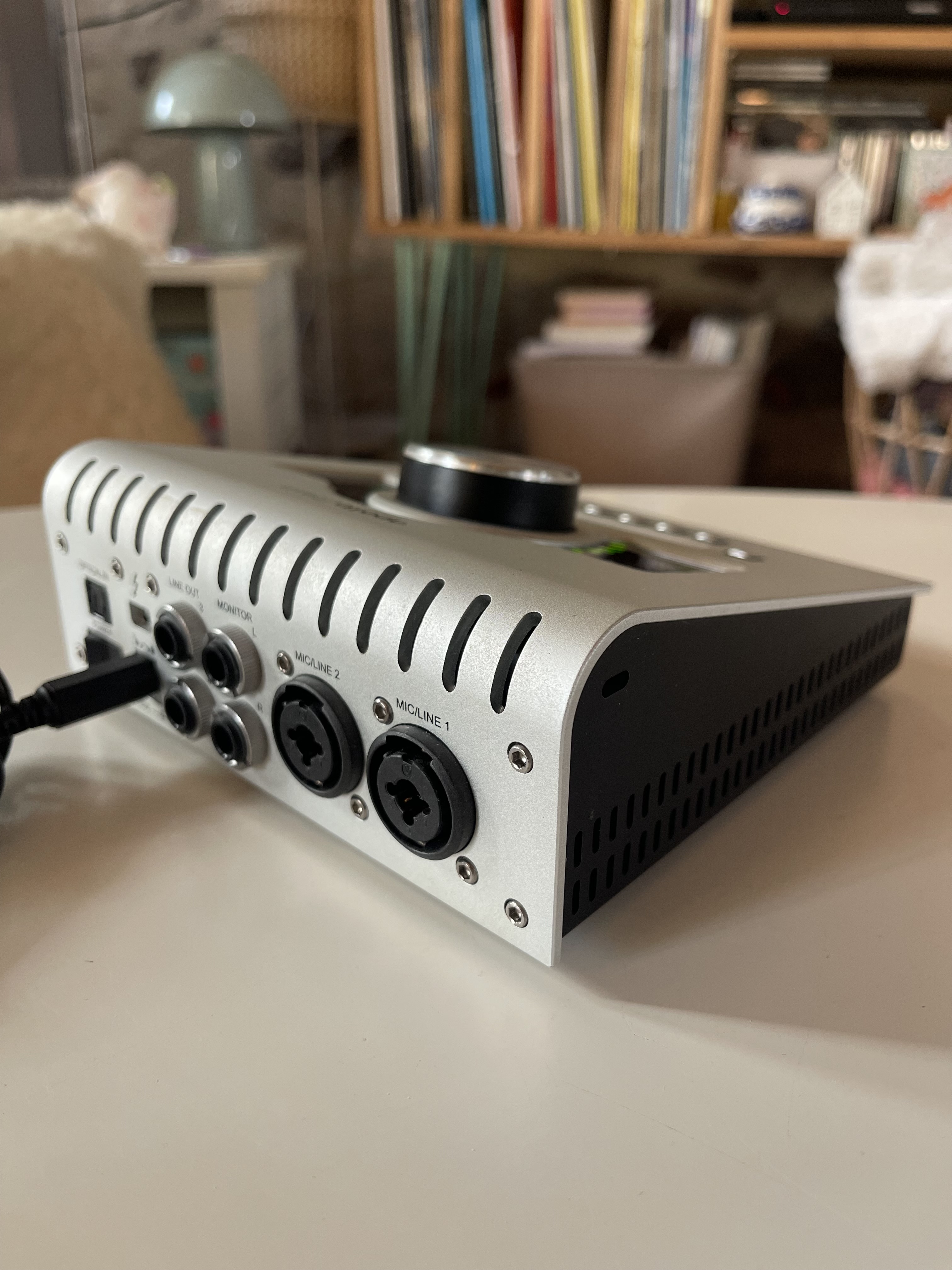

-Only two additional mono outputs, meaning outboard routing capability is minimal and may be a turn-off for those looking to use analog summing devices, like the Dangerous D-Box. In this case, you should look at stepping up to the full-size Apollo Duo or Quad.

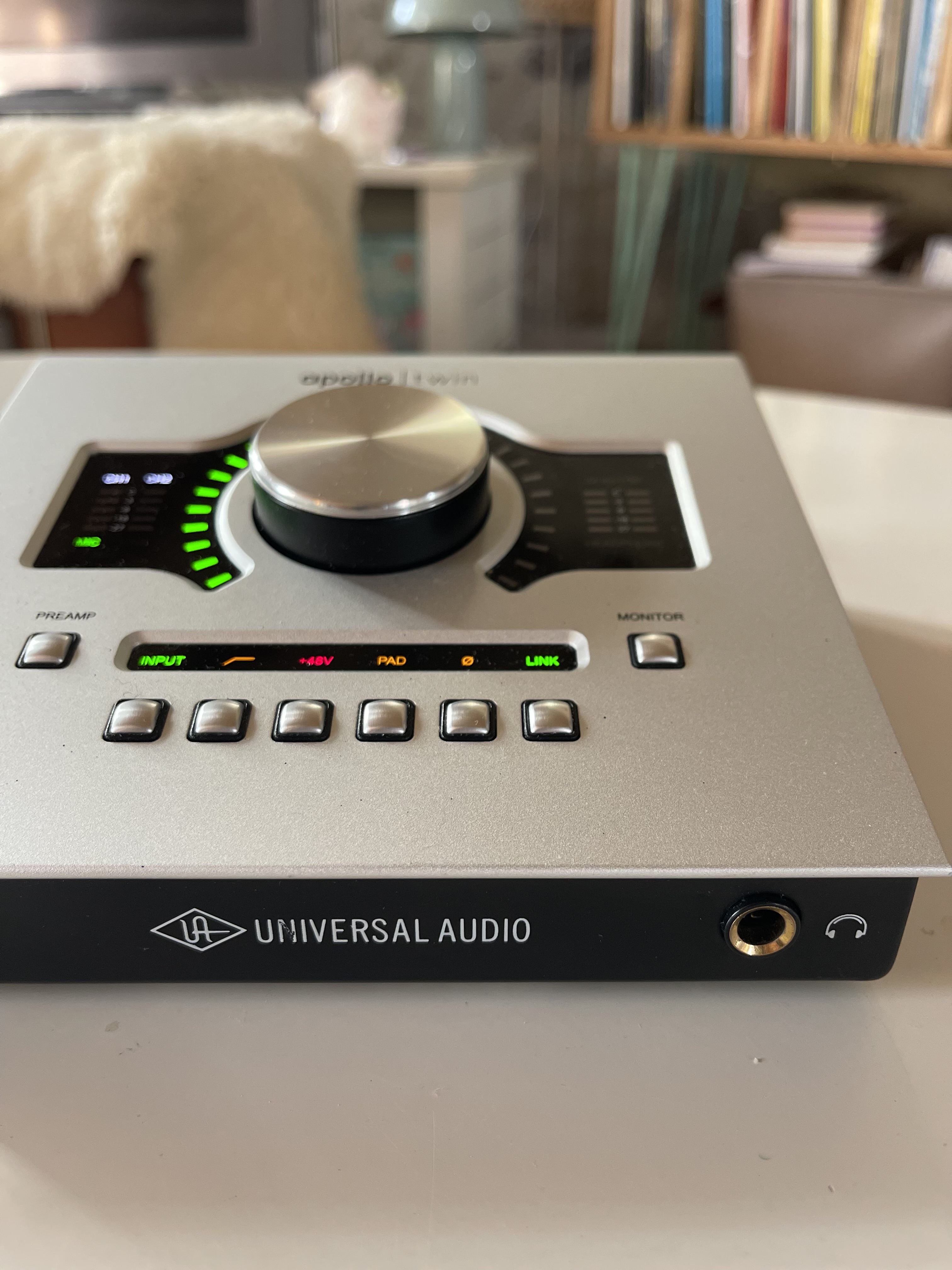

-Only one Headphone jack for monitoring. Two would have been really nice, like on competitive interfaces from Focusrite.
-Only two preamps...after getting a taste of unison technology, you'll wish you had more!
- Only available with a duo core, DSP processor...Considering the DSP hit of the newer UAD plugs, four-cores could be easily used, even in this small footprint.
Did you find this review helpful?yesno
voicelow's review (This content has been automatically translated from French)" Superb!"
- I hesitated a lot before buying this particular Apollo with the Apogee Duet for its preamps and Focusrite Forte for his converter ... and finally it is Apollo who won! Indeed, the converter is really good, and I'm not talking about really nice preamp and easy to set up through the system of "remote control" of the preamp with DSUs. But what motivated me most is the price! The twin is almost the price of a DSU with a sound card really high end ... more
With which instruments or systems you use it? For what purpose?
- I utilisai previously with Blue Robbie preamp microphones upstream, but after many comparative tests I prefer to use the apollo preamps are really smooth for my use. I use it mainly to catch guitar / bass and synths, and the result is here! A clear and transparent sound, a less typical MOTU and a real level of gain on the preamp.
The drivers are stable? Are they often updated? What software do you use most often?
- Drivers are very stable! I had no problems until now. They are updated regularly ... every time a new plug out.
Beyond the drivers it is a really nice card to use. The front is very ergonomic: no need to open the "console" to set the I / O. It also allows me to manage the monitoring (speakers and headphones) accurately.
I used a lot of UAD, which I find very successful. There must be a dozen plugs installed with the card, which more than sufficient to start (a preamp, compressor, limiter, EQ ...)
The installation is done it without problems? The general configuration is easy?
- Installation is not the easiest in the world, but at the same time it is not without a presonus drivers ...
The grip is relatively simple, the "Console" is really easy to use and provides a lot of routes!
It is noted in the system quickly that the card is detected and it PCIe preferences, it does! Indeed it is a real card in Thunderbolt, unlike versions "rack" of Apollo, which really feels when the virtual outputs of the card is used.
How long have you use it?
- I use it for about 6 months, and I have not encountered any major problems so far.
What is so special that you like most and least?
- Plus: The price / quality ratio. Sound card and high-end plugs that hold the road for not much more than a UAD
- The least: we should be able to leave a cable connected to the instrument input and switcher to use one rear entrance to his liking. and no midi ...
With experience, you do again this choice? ...
- Without hesitation, yes! Apollo strongly a "rack" with a real Thunderbolt interface and MIDI!
The reputation of the UAD hardware played a lot in the choice. I was on Apogee together before, which is a much more expensive and high-end card. But I must admit that the desktop screen, excellent DSP, plug ins, pre amp and converter of Apollo are just great (for the studio more). For example to insert a LA2A in Decision is a luxury =) Thanks !!! DSUs And with almost no latency, thanks Thunderbolt!
Which instruments and systems (console, preamp, DTD ...) you use it and how connections? ...
What is your config (Motherboard / CPU / Ram / Hard, ...)?
Mac Book Pro 15 "i7 2.3GHz IntelCore
16GB DDR3 1600MHz RRAM
Yosemite OSX 10.10
For what purpose?
Production, Composition, mixing
Taking Voice and Guitar with a Neumann TLM 103
Logic Pro X
The drivers are stable?
SHIFT are very fast, since OSX against by Yosemite, when I connect the Twin I must restart the Mac to recognize the card for output to the computer (Itunes, Internet ...) But not for Protools. It is a bit painful
What software do you use most often?
Logic Pro X
The installation is done it without problems?
You just need an Internet connection. Otherwise it's very fast and simple.
The "Control Panel" you directly on the Universal Audio website for all stages.
Hardest is to resist the Buy Mass plugins -___-
The general configuration is easy?

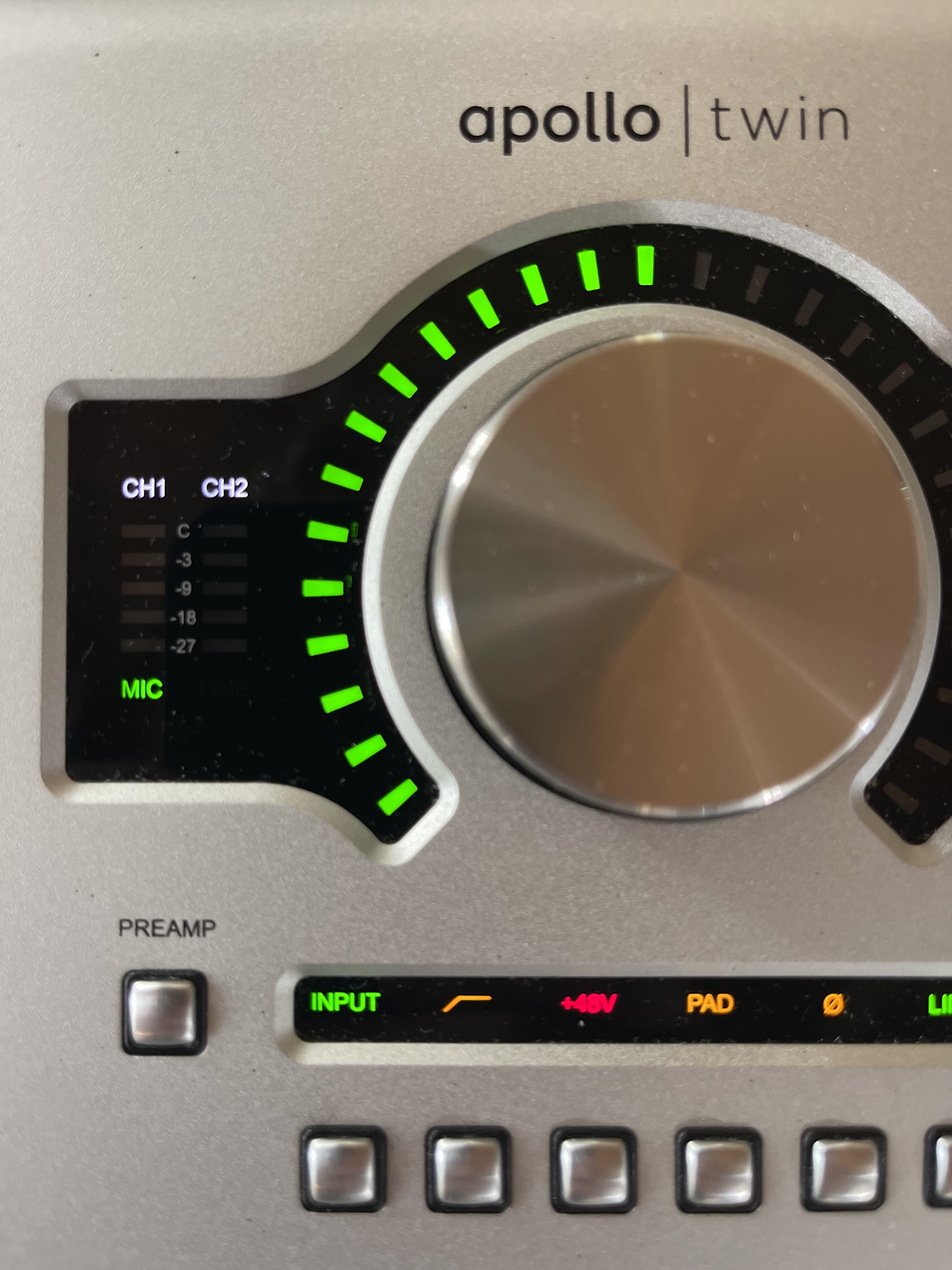

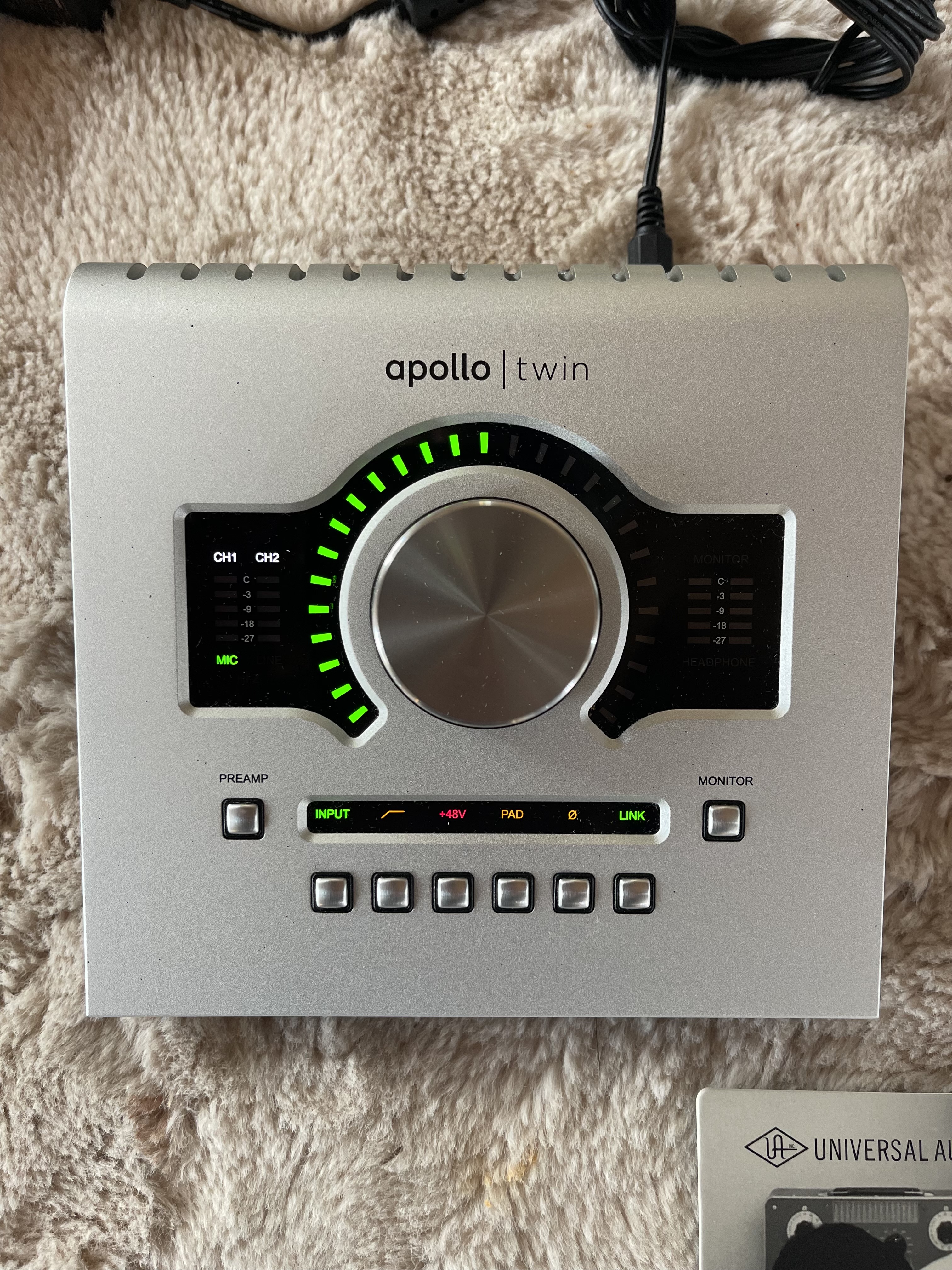

Very Simple, The Big "knob" manages the overall volume, simply press it to mutate. The button "Monitor affects the Fat" knob "on the Main output or on the headphone.
Button "preamp" Manages as its name indicates entries. Pressing it (or the big "knob") you will channel 1 to channel 2 =) Childish.
Once the button "preamp" engaged, you access the basic functions of a console, MIC or Line, a Dutch Cup, a + 48v Alim, a pad, a Phase / Phase Out and the possibility of "Linke" channels 1 and 2 for any stereo jacks.
Have you experienced any incompatibilities?
No =) No PC ^^
The manual is clear and sufficient? ...
Clear and in several languages. But I do not have served, thank you Audiofanzine =)
Have you tried many other models before buying it?
Mbox Pro, Apogee Ensemble, RME Babyface, Apollo Duo
What is so special that you like most and least?
= The most quick access to basic functions to save and plugins provided.
The less = One Headphone Output
How would you rate the quality / price?
With experience, you do again this choice? ...
So yes or big sisters (Duo or Quad) but UAD of Course
First of all, I knew the Matis very heavy and complex:
- DSP cards oriented synths and FX (creamware called soniccore): great, great sound but stability and service means the time at a high cost and that on windows!
- RME Fireface 800: very stable, well built but too Germanic sound pretty cool, old school look, soft not engaging, great service
I was looking for an interface to stay in the box around a muscular macbook pro. Exit therefore made for windows interfaces (farewell Soniccore ...). I wanted a pro sound, a tank, and a hardware interface contact for monitoring ... Apollo fell to the bottom!
Nothing to say ... everything has been stable from the beginning, simple logic ... The plugs are all testable 14 days and it is a concept available. The model chosen is the duo and I recommend the solo model because plugs provide fast want to load the tracks. if we focus on the AU FX on busses can start working seriously. Not to mention that mastering plugs (since one handles a stereo file) have any sense ... it's happiness.
everything is clear and simple ... and it's beautiful
As said earlier, I am filled to 100%. Beautiful robust interface, feeling at the very large pro knob. It's beautiful, it sounds and it's stable. I have ... no complaints! When I see what I have in my hands (it is entitled to vouchers for purchase and we must think to invest in plugs really helpful!), It's unbeatable I think. My macbook pro associated with this interface became my studio. What a joy ... and congratulations commercial service, very available.
