- Manufacturer: VintageMaker
- Model: 1U Passive Summing Mixer 8x2 DSUB/TRS 4xSTM
- Category: Summing mixers
- Added in our database on: 11/14/2018

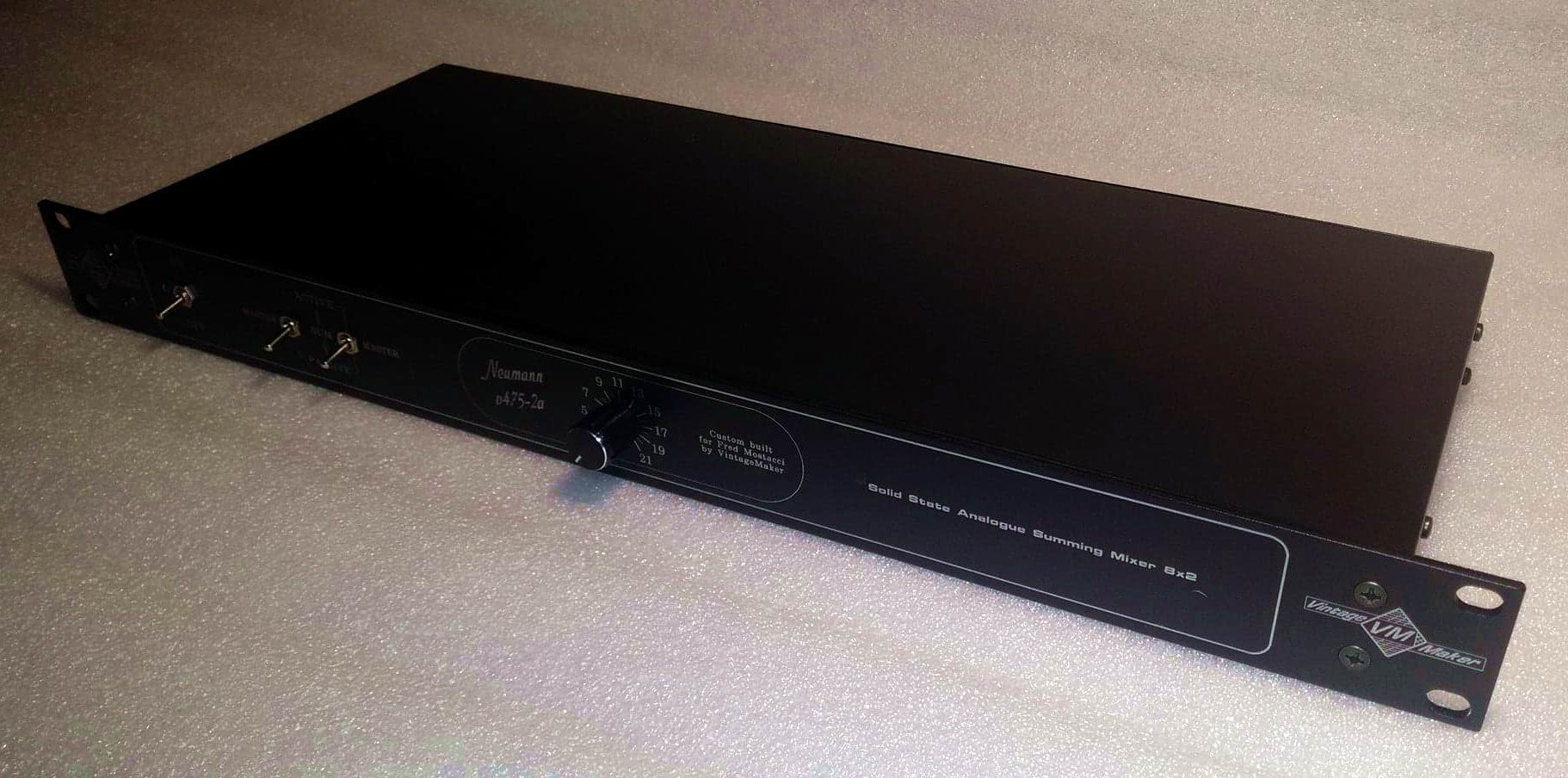

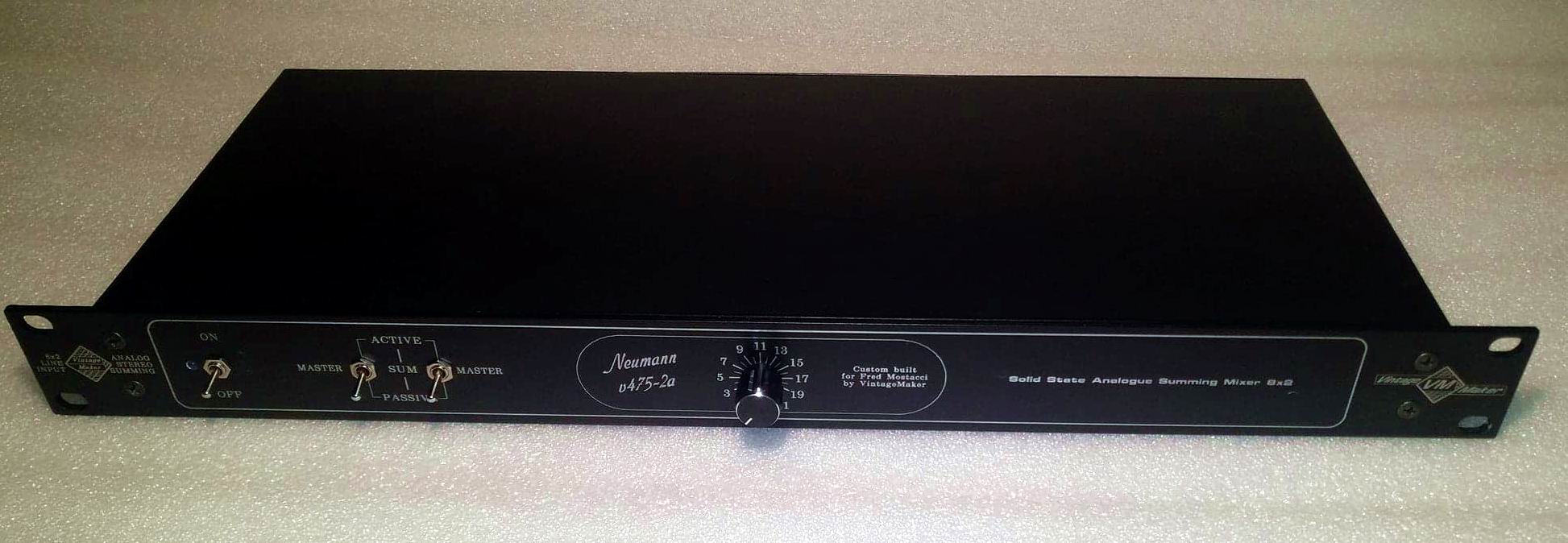

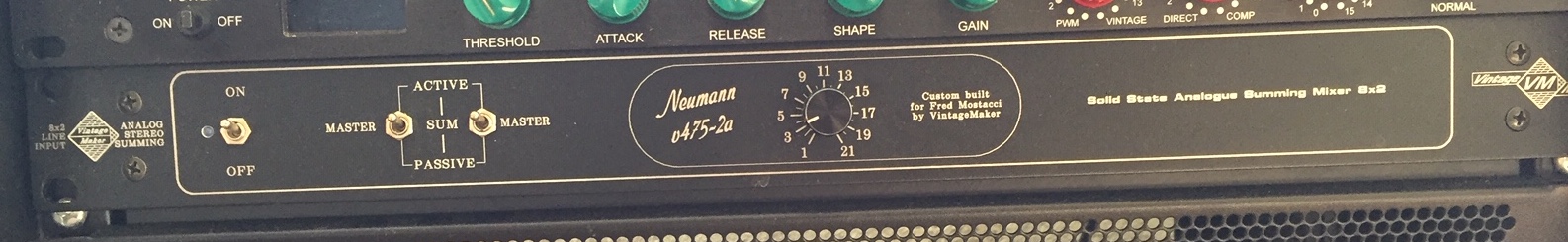

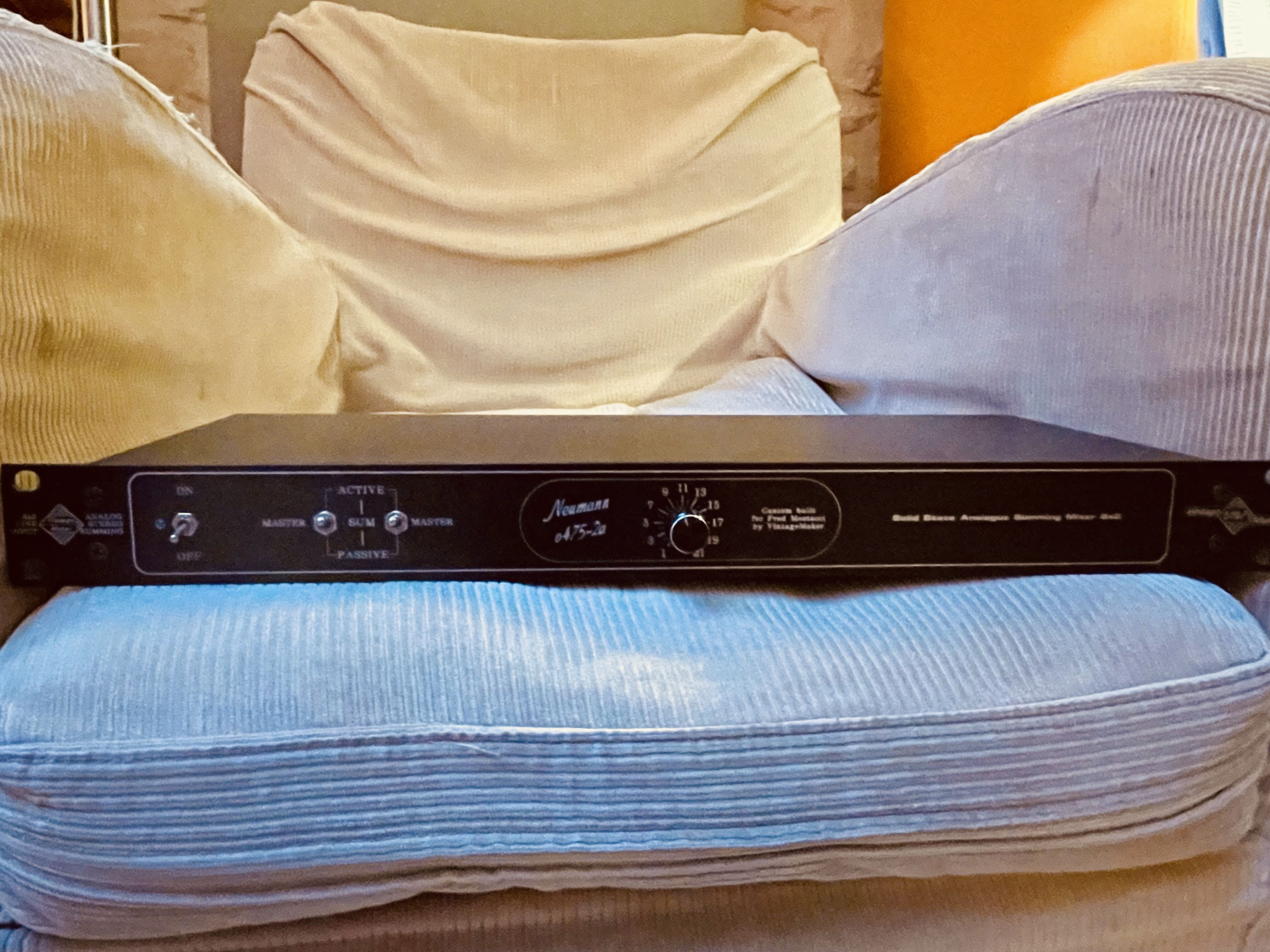

Passive Discrete Summing Mixer DB25 in/TRS out with 4xStereo/Mono input option
4 x Stereo in 1 x Stereo out
- 1U Standard Rack
- 8 input by DB25/DSUB Tascam Analog balanced
- 1xStereo OUT by 1,4" TRS L/R balanced
- 4xStereo to Mono = 8 Mono by switch
- Laser engraved
- Unique design
- Build time 6 business/working weekdays (estimated)
Passive Summing mixer come with 3 type of gain make up requirements:
Required Make Up Gain Range relative to 0dBsf (please let me know before make order)
LOW: -15dB gain up ideal for entry level preamps or DAW mic pre or instrument input
MID: -20dB gain up ideal for mid range preamps or DAW mic pre or instrument input
HIGH: -25dB gain up ideal for high range preamps like Neve, Api, Avalon or DAW mic pre
Contact for custom unque order!
For mono signals (such as kick, snares, lead vocals or bass that should appear centered in the middle of a mix), it would be a waste to use (Stereo L/R panned channels) what would amount to two required converters for a mono result. In such cases, channel pairs 1 & 2, 3 & 4 etc may be switched to mono mode (CH1 to 1-2), so that, for example, there might be a (mono) kick on channel 1, snare on channel 2 and bass on channel 3, etc
