[NAMM] A mixer in the Aira Series

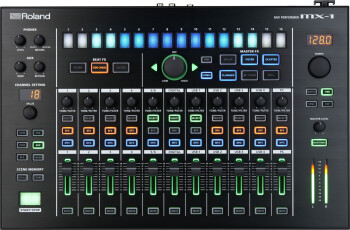

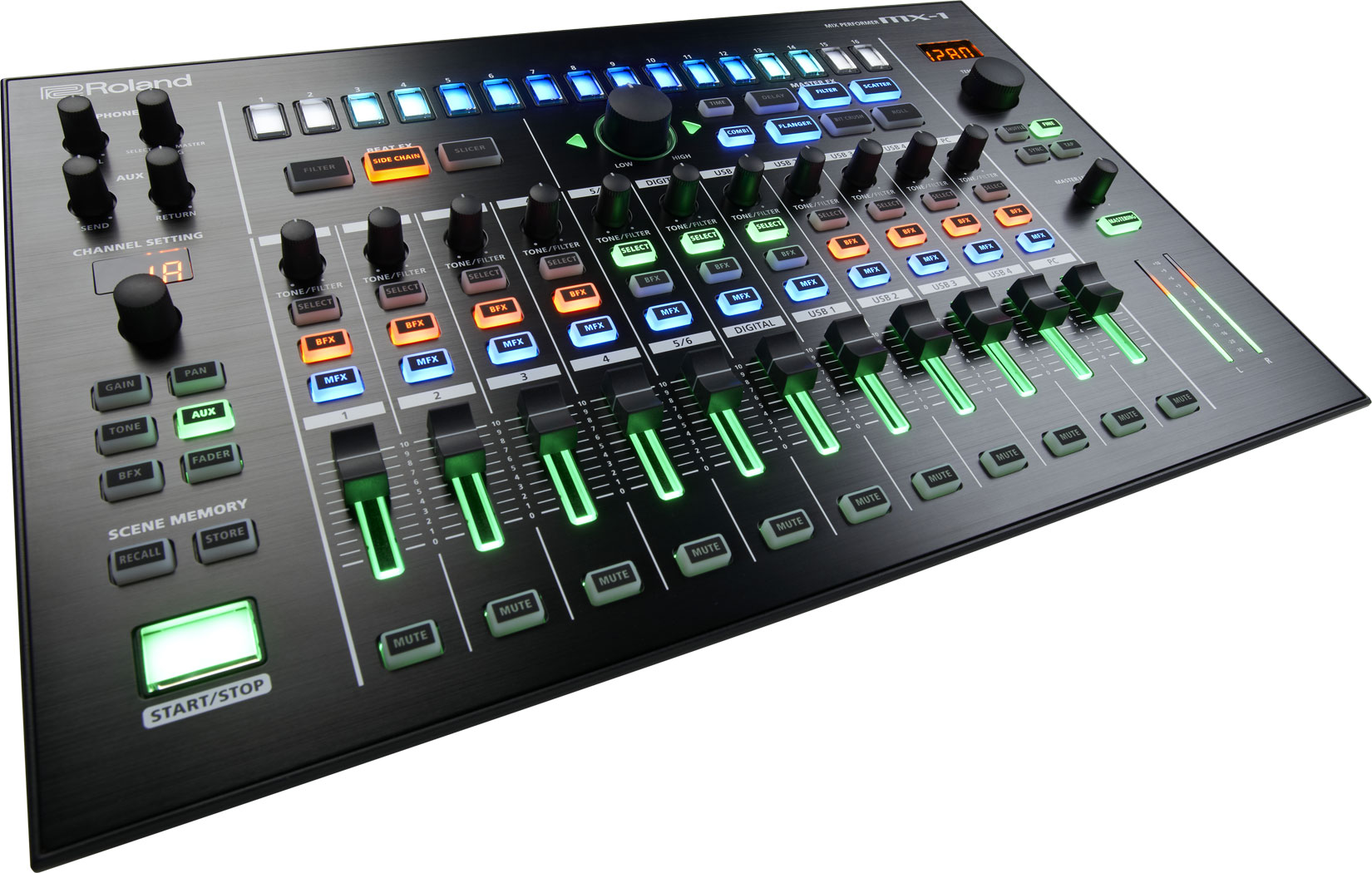

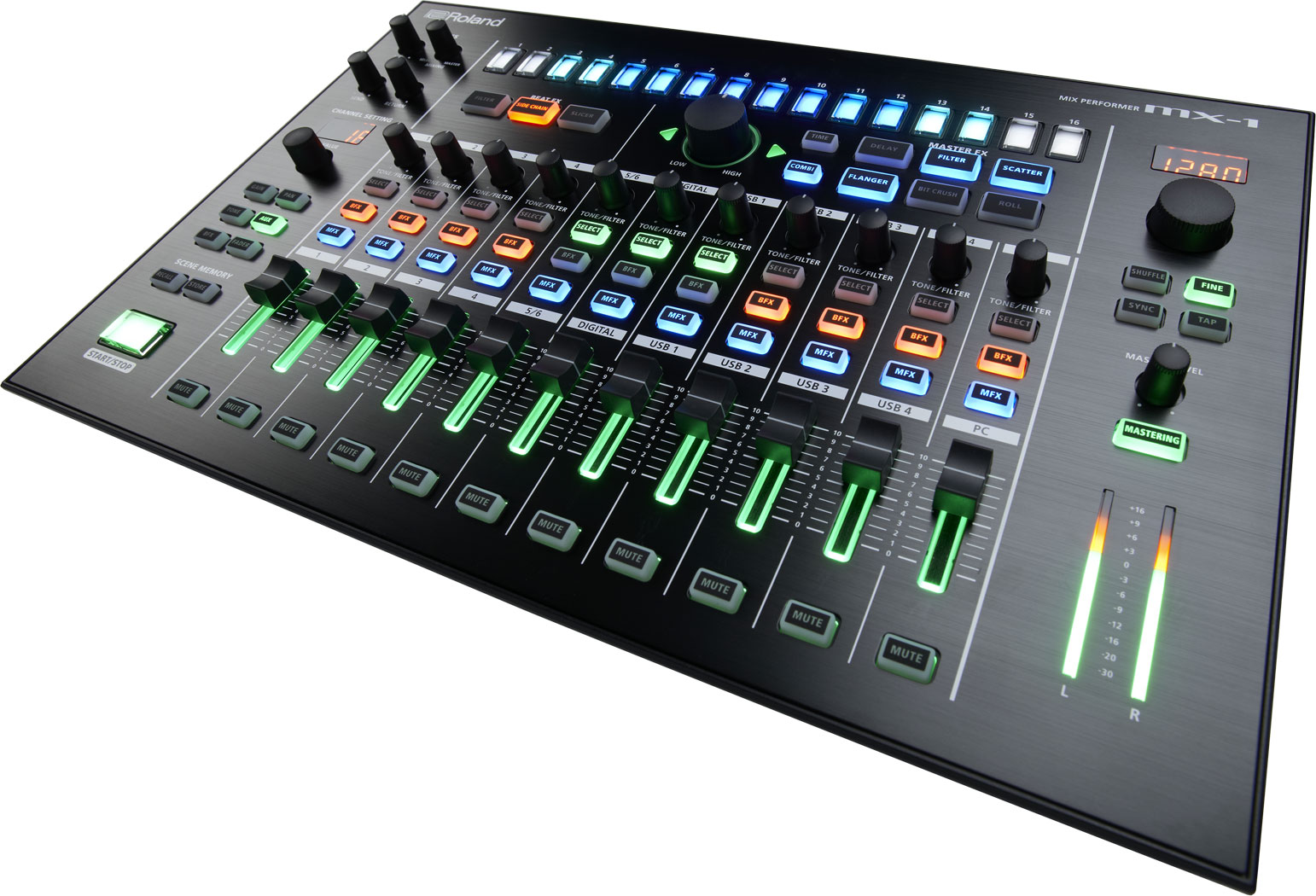

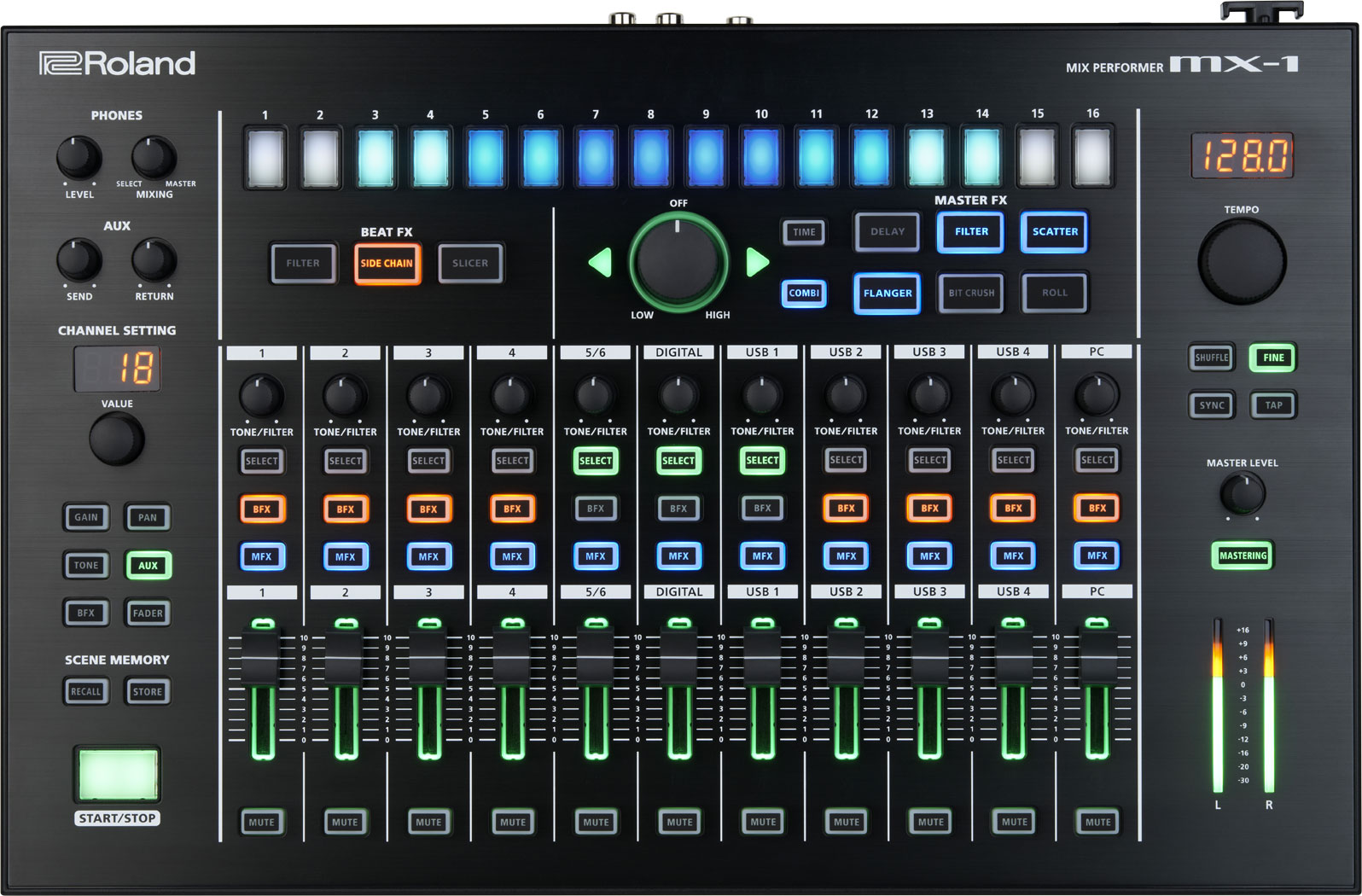

NAMM visitors can discover today at the Roland booth the MX-1, a mixer, controller and audio interface in the Aira Series.
The MX-1 sits as the core of your hardware and software setup, and mostly with your Aira devices.
- 18-channel mixer with step sequenced effects, transport and tempo controls
- 3 types of rhythmic effects: Filter, Side Chain and Slicer with a TR-style button
- 6 types of Master effects with 48 variations controlled via a Performance knob: 8 delays, 8 filters, 8 Scatter, 8 Flangers, 8 bit crushers, 8 Roll
- Ability to apply any effect type to all inputs
- Combi mode that switches between Master effects using the step sequencer
- 4 Aira Link USB ports for audio, MIDI, sync and power for the Aira gear
- Mix mode with 6 analog channels, one stereo digital, four Aira stereo and two PC channel through the mixer
- External mode: 18 channels from DAW via the mixer and effects (all inputs are set to Direct To DAW)
- Control surface MIDI mode for DAW
- DJ-style monitoring with quick mutes and 6 fader curves per channel
- Tone/Filter control per channel with 10 types of EQs, filters and isolators
- Tap Tempo, Shuffle and Fine Tune controls for the tempo and transport
- Instant store and recall full setups, including effect configurations
- Tempo range from 40 to 300
- 16 x 4 scene banks
- Audio resolution: 24-bit / 44.1, 48 or 96 kHz

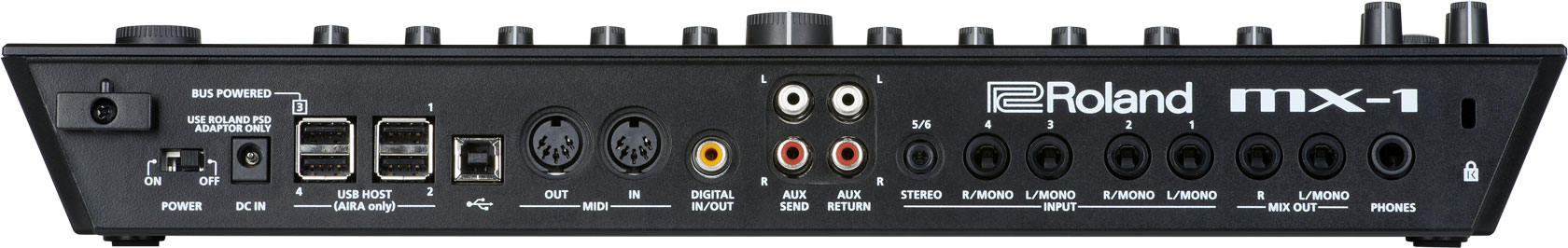

- 1/4“ headphone output
- 1/4“ right/left Mix outputs
- 1/4“ right/left 1-4 inputs
- 1/8“ stereo 5/6 inputs
- RCA right/left aux sends and returns
- USB type A and B ports
- Digital coaxial input and output
- MIDI in and out
- Dimensions: 400 x 264 x 65mm
- Weight: 1.81 kg
Visit www.rolandus.com for more info about the Aira MX-1.
