- Manufacturer: Lightmaxx

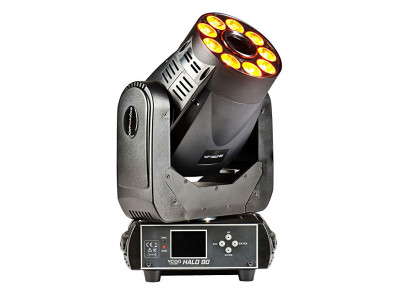

- Model: Vega Halo 90
- Category: Moving Heads
- Added in our database on: 10/18/2018
Input power:AC100-240V 50/60 Hz
Power consumption :252W
LED Source: 90W white + 9*18W RGBWA+UV 6in1 LEDs
Beam angle: 11°(spot)/25°(Wash)
Lamp life 5000 hours lamp lifespan and low consumption
16/23 DMX channels
Color wheel: 7 colors + white
Gobo wheel: 6 gobos + open
Prism: 3 face
Focus: Electronic linear focus
Movement: pan 540 degrees , tilt 270 degrees
Control mode: DMX, Auto, Sound, Master/Slave
Display: LCD display
Dimension: 480*345*245 mm
Weight: 10kg
16 channel table
|
Channel |
DMX Value |
Function |
|
1 |
000 - 255 |
Pan |
|
2 |
000 - 255 |
Tilt |
|
3 |
000 - 255 |
Spot Dimmer (0-100%) |
|
4 |
|
Spot Shutter |
|
Shutter closed |
||
|
005 -250 |
Strobe effect slow to fast |
|
|
251-255 |
Shutter open |
|
|
5 |
|
Color Wheel |
|
Open (White) |
||
|
005-013 |
White/Red |
|
|
014-022 |
Red |
|
|
023-031 |
Red/Orange |
|
|
032-040 |
Orange |
|
|
041-049 |
Orange/Green |
|
|
050-058 |
Green |
|
|
059-067 |
Green/Blue |
|
|
068-076 |
Blue |
|
|
077-085 |
Blue/Yellow |
|
|
086-094 |
Yellow |
|
|
095-103 |
Yellow/Lt. Blue |
|
|
104-112 |
Lt. Blue |
|
|
113-121 |
Lt. Blue/UV |
|
|
122-130 |
UV |
|
|
131-139 |
Open (White) |
|
|
140-195 |
Forward rainbow effect from fast to slow |
|
|
196-199 |
Rotation stop |
|
|
200-255 |
Backward rainbow effect from slow to fast |
|
|
6 |
|
Gobo Wheel |
|
Open (White) |
||
|
008-028 |
Gobo1 (3 circles – 0240.png) |
|
|
029-049 |
Gobo2 (8 sml, 1 big circle – 0055.png) |
|
|
050-070 |
Gobo3 (5 blades – 1072.png) |
|
|
071-091 |
Gobo4 (5 point star – 0394.png) |
|
|
092-112 |
Gobo5 (3x5 finger – 0396.png) |
|
|
113-133 |
Gobo6 (triangle – 0410.png) |
|
|
134-194 |
Forward rainbow effect from fast to slow |
|
|
195-255 |
Backward rainbow effect from slow to fast |
|
|
7 |
|
Gobo Rotation |
|
Stop |
||
|
000-007 |
Open (White) |
|
|
130-134 |
Stop |
|
|
135-255 |
Backward Gobo Rotation from slow to fast |
|
|
8 |
000-255 |
Focus |
|
9 |
|
Prism |
|
Open (White) |
||
|
008-134 |
Prism |
|
|
135-255 |
Forward Prism Rotation from slow to fast |
|
|
10 |
|
Wash Shutter |
|
Wash Shutter closed |
||
|
005-250 |
Wash Strobe effect slow to fast |
|
|
251-255 |
Wash Shutter open |
|
|
11 |
000-255 |
Red |
|
12 |
000-255 |
Green |
|
13 |
000-255 |
Blue |
|
14 |
000-255 |
White |
|
15 |
000-255 |
Amber |
|
16 |
000-255 |
Purple (UV) |
23 channel table
|
Channel |
DMX Value |
Function |
|
1 |
000 - 255 |
Pan |
|
2 |
000 - 255 |
Pan Fine |
|
3 |
000 - 255 |
Tilt |
|
4 |
000 - 255 |
Tilt Fine |
|
5 |
000 - 255 |
Pan/Tilt (XY) Speed |
|
6 |
000 - 255 |
Spot Dimmer (0-100%) |
|
7 |
|
Spot Shutter |
|
Shutter closed |
||
|
005 -250 |
Strobe effect slow to fast |
|
|
251-255 |
Shutter open |
|
|
8 |
|
Color Wheel |
|
Open (White) |
||
|
005-013 |
White/Red |
|
|
014-022 |
Red |
|
|
023-031 |
Red/Orange |
|
|
032-040 |
Orange |
|
|
041-049 |
Orange/Green |
|
|
050-058 |
Green |
|
|
059-067 |
Green/Blue |
|
|
068-076 |
Blue |
|
|
077-085 |
Blue/Yellow |
|
|
086-094 |
Yellow |
|
|
095-103 |
Yellow/Lt. Blue |
|
|
104-112 |
Lt. Blue |
|
|
113-121 |
Lt. Blue/UV |
|
|
122-130 |
UV |
|
|
131-139 |
Open (White) |
|
|
140-195 |
Forward rainbow effect from fast to slow |
|
|
196-199 |
Rotation stop |
|
|
200-255 |
Backward rainbow effect from slow to fast |
|
|
9 |
|
Gobo Wheel |
|
Open (White) |
||
|
008-028 |
Gobo1 (3 circles – 0240.png) |
|
|
029-049 |
Gobo2 (8 sml, 1 big circle – 0055.png) |
|
|
050-070 |
Gobo3 (5 blades – 1072.png) |
|
|
071-091 |
Gobo4 (5 point star – 0394.png) |
|
|
092-112 |
Gobo5 (3x5 finger – 0396.png) |
|
|
113-133 |
Gobo6 (triangle – 0410.png) |
|
|
134-194 |
Forward rainbow effect from fast to slow |
|
|
195-255 |
Backward rainbow effect from slow to fast |
|
|
10 |
|
Gobo Rotation |
|
Stop |
||
|
010-129 |
Forward Gobo Rotation from fast to slow |
|
|
130-134 |
Stop |
|
|
135-255 |
Backward Gobo Rotation from slow to fast |
|
|
11 |
000-255 |
Focus |
|
12 |
|
Prism |
|
Open (White) |
||
|
008-134 |
Prism |
|
|
135-255 |
Forward Prism Rotation from slow to fast |
|
|
13 |
000-255 |
Wash Dimmer (0-100%) |
|
14 |
|
Wash Shutter |
|
Wash Shutter closed |
||
|
005-250 |
Wash Strobe effect slow to fast |
|
|
251-255 |
Wash Shutter open |
|
|
15 |
000-255 |
Red |
|
16 |
000-255 |
Green |
|
17 |
000-255 |
Blue |
|
18 |
000-255 |
White |
|
19 |
000-255 |
Amber |
|
20 |
000-255 |
Purple (UV) |
|
21 |
|
Color Macros |
|
Empty |
||
|
008-047 |
Auto Play 1 |
|
|
048-087 |
Auto Play 2 |
|
|
088-127 |
Auto Play 3 |
|
|
128-167 |
Auto Play 4 |
|
|
168-207 |
Auto Play 5 |
|
|
208-247 |
Auto Play 6 |
|
|
248-255 |
Color Gobo Sound Control |
|
|
22 |
|
X /Y Macros |
|
Empty |
||
|
008-032 |
X/Y auto run 1 |
|
|
033-058 |
X/Y auto run 2 |
|
|
059-084 |
X/Y auto run 3 |
|
|
085-110 |
X/Y auto run 4 |
|
|
111-136 |
X/Y auto run 5 |
|
|
137-162 |
X/Y auto run 6 |
|
|
163-188 |
X/Y auto run 7 |
|
|
189-214 |
X/Y auto run 8 |
|
|
215-240 |
X/Y auto run 9 |
|
|
241-255 |
X/Y Sound Control |
|
|
23 |
250-255 |
RESET (10S) |
