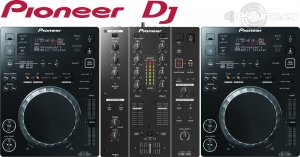

[Musikmesse] Pioneer DJM-350

One of the new features of the DJM-350 is the option to record his live set on a USB device without the need of extra kit or cables. Plug in a USB memory device and start recording your performance in high quality uncompressed WAV audio.


The equalizers you have on each channel are identical to those of the DJM-400 offering you Isolator kills (infinite equalizers) for each frequency. All A/D and D/A conversions are done with the shortest circuitry possible maintaining the sound quality as much as possible. The DJM-350 has a high performance CPU that minimized the noise.

Specifications:

• Sampling Rate 48 kHz

• A/D, D/A Converters 24 bits

• Frequency Response 20Hz ~ 20kHz

• Distortion 0.007 %

• Signal to Noise Ratio line 97 dB

• Power Supply AC 220–240V, 50/60Hz

• Power Consumption 18 W

• Dimensions 218 × 301.1 × 106.6 ( WxDxH )

• Net Weight 3.2 kg

• Phone 2 x (RCA)

• Line 3 x (RCA)

• Mic 1 x(Phone Jack 6.3mm)

• Fader start 2 x (mono mini JACK)

• Master Out 2 x (RCA) +2 dBu / 600 Ohm

• Headphone Monitor Out 1 x (Jack 6.3mm) +8.5 dBu / 32 Ohm

• Low Frequency  infinite ~ +6 dB @ 70Hz

• Mid frequency infinite ~ +6 dB @ 1kHz

• High Frequency infinite ~ +6 dB @ 13kHz

• Low Frequency  –12 ~ +6 dB @ 100Hz

• High Frequency –12 ~ +6 dB @ 10kHz
