Understanding Impedance

Speaker specifications explained - Part 3

There's no way to get around impedance when looking at speaker specs. Its rating is important to avoid frying up your amp, but also because the small details of an impedance curve reveal a lot about the performance of a speaker.

View other articles in this series...

By no means do I intend to go into the details of impedance here, I’ll rather try to give you an overall introduction to the topic and its practical implications.

Defining impedance

Impedance derives from the concept of resistance, both of which are expressed in Ohms (Ω). So, just like the so-called “resistor” components, condensers and inductors also oppose the passing of current. But unlike resistors, if the voltage of the current is not continuous, their resistive power changes in relation to the frequency. Impedance varies depending on the voltage’s variation speed. Applied to a speaker, the latter acts as a circuit with a resistor, an inductor and a condenser, and the opposition it presents to a signal changes with frequency.

Impedance is noted Z and obeys Ohm’s law (V in volts, Z in ohms, I in amperes: V = Z × I). Unlike resistance, it’s also characterized by its phase (in degrees), which is important to consider when conceiving a speaker or a filter, but less so for PA systems. Impedance extends to other fields outside electronics: it can also be mechanical or acoustic (opposition to motion and to sound propagation, respectively).

Conventional notation

Considering that it varies with frequency, what does the impedance rating on the back of a speaker indicate? Well, it’s a convention used for practical reasons. To really get to know the details, you’ll need to read a curve ─ as usual ─ with the frequency in the x-line and impedance in the y-line Manufacturers reduce this curve to a so-called “nominal” value, to facilitate the use of their gear.

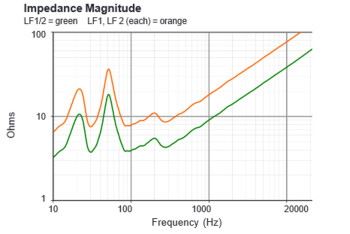

03 A EAW SB1002 impedance curve
Impedance curve of an EAW SB1002 subwoofer with two 18" drivers

The most important figure for the user is the minimum impedance rating of the speaker, because every amp requires a minimum impedance ─ specified in its specs ─ to work correctly. According to AES recommendations, the minimum impedance across the entire speaker bandwidth should never be less than 80% of its nominal impedance. In other words, the value chosen by the manufacturer to specify the impedance of the speaker should not be too far from the minimum measurement. The “nominal” impedance is a conventional value, generally 4 or 8 Ohms, chosen because it’s just above the minimum impedance measured.

In the following image*, the orange curve belongs to one of the speakers (each of which can be fed by a different channel), while the green line corresponds to both speakers together driven with the same amp channel, in parallel. This subwoofer operates in the 28 Hz — 160 Hz range. Each speaker has a nominal impedance of 8Ω, but their combined impedance is only 4Ω.

*EAW Documentation

In practice

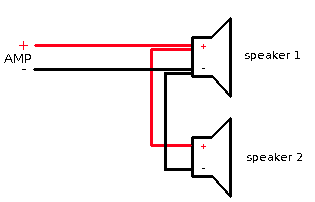

Speakers in parallel


Diagram of two speakers connected in parallel

According to Ohm’s law, the amount of current the amp needs to supply is inversely proportional to the speaker’s impedance (the load): I = V/Z. The lower the Z, the higher the current the amp must supply, until it overheats and breaks down. Most professional sound reinforcement amps can handle loads of up to 4Ω, and even 2Ω. In practice, the general rule is that you can connect two identical 8Ω speakers in parallel to an amp output rated at 4Ω, and three to an output rated at 2Ω.

The calculations used to determine this are the following: total impedance of the speakers = impedance of one speaker/number of speakers (this only works for identical impedances, otherwise the rule is a bit more complicated), i.e. 8Ω/3 = 2.67Ω. This is still above the limit of an amp that can handle a load of 2Ω, even if the real impedance can drop to 80% of the nominal impedance. Anyway, you should always be very careful when you toy with the maximum capacity of an amp. Not all manufacturers are as rigorous with their tech specs and the amp could heat up quite a bit depending on the gear, the level, and the conditions and time of use. The most cautious way to go about it is to cable the speakers in parallel.

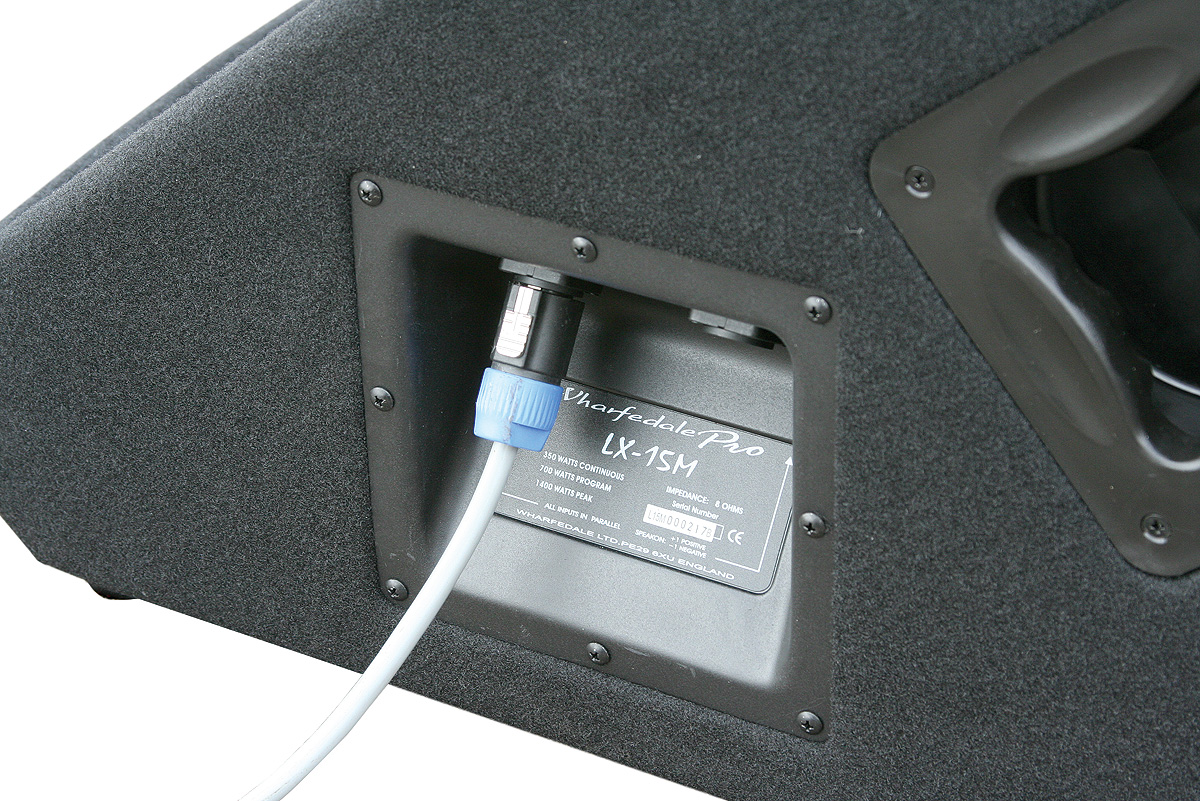

03 C Wharfedale LX 15M 02

When a speaker has two inputs, without any other indication, connecting it to another speaker always results in a connection in parallel. This additional connector is intended for that purpose, as long as you only use speakers of the exact same model and you respect the limits of the amp. However, you should always check the specs before connecting any speakers in parallel to an amp (not all amps can handle a load of 2Ω, and not all speakers have 8Ω impedance either).

In the following image (taken from Wharfedale documentation) you can see the two Speakon connectors to eventually connect a second speaker in parallel.

← Previous article in this series:
Understanding Directivity
Next article in this series:
Power Handling →
  • angelie 350 posts
    angelie
    AFfluent Poster
    Posted on 12/23/2015 at 22:53:22
    Good article very clear written but i have one point / question

    Quote:

    in practice, the general rule is that you can connect two identical 8Ω speakers in parallel to an amp output rated at 4Ω, and three to an output rated at 2Ω.


    You need 4 x 8ohm speakers to get to a value of 2ohms in total.
    Or did you choose the number 3 to be on the save side?

    - Angelie
  • Mike Levine 1066 posts
    Mike Levine
    Author
    Posted on 12/24/2015 at 05:25:28
    Good question. I'll contact the author to get a clarification.
  • poussebouton 15 posts
    poussebouton
    New AFfiliate
    Posted on 12/28/2015 at 03:31:51
    Thank you for your comment and sorry for the delay,
    your question is exactly the point where I run short of scientific explanations, indeed. I place myself from a practical point of view. It is true that I preferred being cautious when I gave advice to plug only 3 x 8 ohm speakers in parallel on an amp output that can stand 2 ohm.
    Depending on the amp quality, the scientific rigour of the measurement of the impedance of the speakers and the conditions of use, plugging more than 3 is running a risk of an amp failure because of heat. But to be honest, I did use 2 x 4 ohm in parallel on a 2 ohm rated amp output, without any problem for the time of a concert. Nevertheless, prudence is a good guide.
    With impedance, everything is about a ratio between the output and the input, I believe that depending on the quality of the amp, the security margin can vary between set-ups, even though they have the same ratings.
