The Wet/Dry/Wet Technique

Improve your sound when using time-based effects in your guitar setup

Reverb, delay and all other so-called time-based effects can sometimes "dirty up" your basic guitar sound to the point that you are forced to reduce their level in order to preserve a minimum of audio precision. Here's a way to get around that particular problem.

The theory

The idea behind this technique is to separate the dry signal (without effects) from the wet signal (with effects) so that they don't interfere with each other, while preserving the maximum presence.

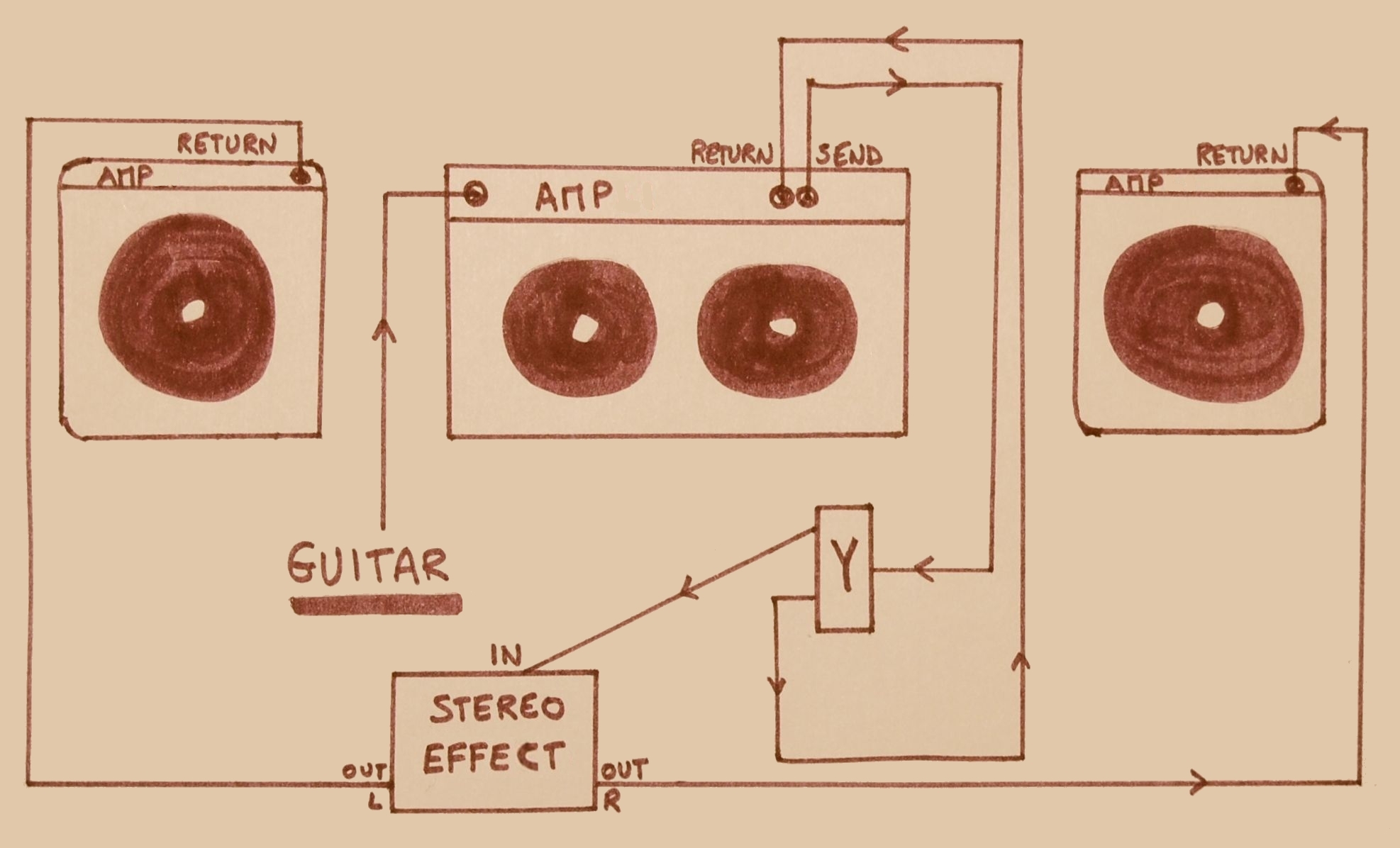

This way you will be able to use your favorite amp to color the overall sound, while delegating sound spatialization to one or more other amps, which can be mono or stereo. But don't worry, there's no need to get a loan on your house, because the wet signals don't need additional coloration: Two small combos with decent speakers (or even two simulators like SansAmp) will do the trick. More precisely, wet/dry/wet refers to the use of three speakers each with a different signal, ideally with a dry center channel, as you can see in the diagram to the left.

In practice

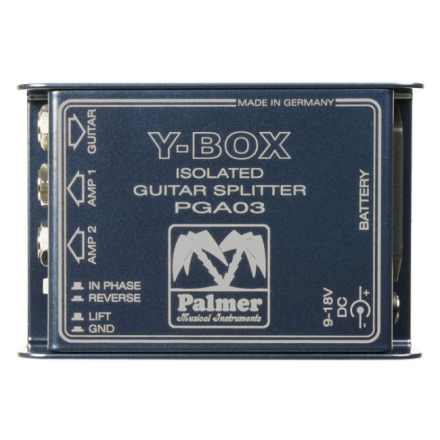

If you use a passive splitter for this setup, the loss of signal will be quite significant. To avoid that, use an active splitter, like the JHS Buffered Splitter or the Palmer Y-Box. The latter has the advantage of being battery-powered, which spares you all electricity-related issues, however, the cost is somewhat hefty for such a simple box.

traitement audio wet/dry/wet

But let's go back to the topic at hand: Plug your guitar into your favorite amp and connect the input of the splitter to the send of the effects insert. Now, take the output of the splitter and connect it to the amp's return to get the dry signal and connect the effect you want to split to the second branch of the Y. Then use the effect's stereo output to send it to the loop returns of your left and right amps. The final result will certainly be better if your pedal has a dry/wet knob to send as wet a signal as possible to both lateral amps.

You can even go so far as to assign an amp to the reverb and the other one to a delay, or a short delay to the first amp and a long echo to the second one. Or maybe you could use a pitch shifter (set just slightly above and below the target to make the sound fatter or to get majestic harmonies), a phaser, a chorus, a flanger, a volume pedal —while always having a dry sound with as much quality and definition as possible.

Good things come in threes

There are also pedals that feature two outputs, a dry and a wet one. However, the result seems more like a "dual mono" than a true stereo. Plus, don't forget that you'd need to be in possession of two good amps to really profit from it.

So, with a good amp and two small "satellite" amps ─ or just one with a stereo loop ─ you can add so much presence to your sound that you will be able to significantly lower the overall volume (despite the drummer, who certainly won't have the slightest intention of hitting the drums softer so that you can hear the vintage repetitions of your favorite delay).

To finish, and as always, don't forget to tell us about your own experiences in the comments below!

  • stevie f 1 post
    stevie f
    New AFfiliate
    Posted on 04/04/2017 at 04:27:48
    Hi Thank you for the diagram the best i have seen but were do you now connect the delay echo phaser as you suggest to this diagram? my center amp will be a new Boss katana which has many fx but i want to assign as you suggest an external echo to 1 amp or reverb to the other amp etc also what satellite amps do you suggest i buy to complete This rig with the Boss Katana kind regards Stephenfell1@hotmail.co.uk
  • SpookyManfredo D'Souza Jr. 1 post
    SpookyManfredo D'Souza Jr.
    New AFfiliate
    Posted on 03/30/2020 at 16:01:05
    This diagram does not work for me. I am getting a very faint effects out put out of my suhr bellas.

    I am using a metropolous metroplex in to a Suhr Buffer out to the delay into the return of the bellas return and tried straight into the input, i get nothing.

    Help Please?
  • Jay Paul Jackson 1 post
    Jay Paul Jackson
    New AFfiliate
    Posted on 01/16/2021 at 21:43:02
    I am useing front of amp input only no FX send return on my amps. and what I do is split my signal before going to my pedals one line to a mono board for my Dry/Wet amp and the other line going into a stereo pedal and more stereo pedals before going to my two wet/dry amps. I use all Fender amps to avoid ground looping problems you can get with different brands of some amps.
