New Standards - The Loudness War - Part 10

In this installment, we'll discuss the consequences of volume on music, sound and human ears.

View other articles in this series...

In the last chapter we talked about some of the efforts made by manufacturers, software makers, broadcasters, and audio professionals, as well as lawmakers (the idea to lower the volume limits in concert venues) to fight the loudness wars. By way of example, I mentioned Sound Check, the new feature implemented by Apple, but they are not alone in this fight.

Some other major players in the digital audio scene have put into place volume moderation systems: Spotify, for instance, introduced a normalization option in 2009 (although I haven’t been able to find detailed information about how it works). And you should be careful when this option is deactivated because Spotify uses a limiter that can have very nasty effects, depending on the volume of the different songs (especially those mixed very loudly, which basically means most recent albums). As if “hot” albums (with tiny dynamic ranges) didn’t sound bad enough as it is…

Lucky 13

But maybe the most important step was taken by YouTube in December 2014. Don’t forget that YouTube is currently the go-to platform to discover and follow musicians worldwide, especially among younger people, so any changes it makes are consequential and influential. The video streaming platform implemented loudness normalization for its music videos using –13 LUFS as a reference level. This means that all videos uploaded to the website are modified in order for their perceived volume to be the same, regardless of their original volume.

Does your mix have a –20 LUFS (giving you, in theory, some very generous dynamics of 20 LU)? Well, by being boosted to –13 LUFS it gains 7 LUFS, if the margin left for the maximum peak volume allows it (which isn’t always the case). Does your mix have –8 LUFS? Well, it will lose 5 LUFS when normalized at –13 LUFS. Which one of the two do you think will sound better?

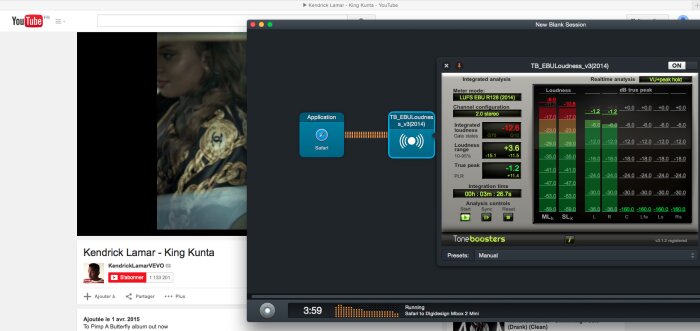

Take a look at the following screenshots.

The first one is Kendrik Lamar’s “King Kuta” from the To Pimp A Butterfly album (with a dynamic range of 5dB).

Loudness war

The second one is the same song but taken from YouTube.

Loudness war

As you can see, the loudness has decreased to 13 LUFS. And the same has been observed when doing the same with other songs. Do note, however, that the music videos uploaded before December 2014 still exhibit varying volume levels. We’ll have to wait and see if YouTube will apply this modification to all videos or only to the most recent ones. But isn’t it possible that commercial arrangements are made so that some videos sound louder than others? That’s a legitimate question, especially since some recent videos do exceed the apparently imposed limit (-13 LUFS).

Changes

But what do I mean when I say “-13 LUFS, ” you ask? Well, LUFS stands for “Loudness Unit Relative to Full Scale” and it is the new measurement unit defined by the EBU-R128 standard. Put briefly, it sets the Maximum Permitted True Peak Level at –1dBTP and the normalized Target Level at –23 LUFS. Note that international standards, like the ITU-R BS.1770, propose the LKFS standard (standing for Loudness K-weighted relative to Full Scale), which is equivalent to LUFS.

Without going into too many details (at the end of this article you can find some useful links and documents in this regard), it’s a new way of measuring perceived volume with different durations (Integrated, the entire program material, Short and Momentary) and scales, according to the Loudness Range (specified in LU). And while perceived volume remains a relative measurement, when a standard is adopted across the board, its standardization does make sense. In case the specified Loudness and True Peak values are not respected, the files are modified to make them abide to the standards.

Thanks to this new way of seeing (ehem, hearing) things, we can only hope that its adoption will lead to a standardization not only of music or audio, but rather of all possible media. This would allow the listener/viewer to be in control of the overall volume and put an end to the destructive loudness wars that are so harmful to sound and, in the end, to our ears. A practical example? The ads before a film begins, which no longer would drill the ears of movie theater goers.

FYI, the two examples in the previous article were processed with one of the many processors that allow you to adjust an audio file to the maximum defined by one of the two standards. For the Jones and Guetta clips, I set the processor to –20 LUFS.

If these standards were to be widely adopted, which seems to be the case, their impact would be huge. Because the advocates of the “make it louder” approach ─ record labels, advertising agencies, radio stations, and the artists themselves ─ would (hopefully) come to realize that their productions pale in comparison with adequately mixed ones, given their obvious lack of dynamics and clarity.

The sooner it happens, the better.

References

All documents and links listed here, which I used to write this series of articles, include many more links and references you can consult if you wish to deep digger into the subject:

← Previous article in this series:
Play It By the Rules
Next article in this series:
Metering and Correction Software →
  • mgaw 1 post
    mgaw
    New AFfiliate
    Posted on 09/01/2015 at 14:25:20
    Not directly related, but..

    What's the program you use in the screenshots to hi-jack audio to toneboosters?
    And I've never quite understood how TB EBU Loudness plug-in indicates the dynamic range - could you explain how "loudness range" numbers relate to older "dynamic range", thanks!

    Great articles by the way! ;)
  • CaliMoose 121 posts
    CaliMoose
    AFfinity Poster
    Posted on 09/04/2015 at 01:40:01
    :D:
    Quote from mgaw:
    Not directly related, but..

    What's the program you use in the screenshots to hi-jack audio to toneboosters?
    And I've never quite understood how TB EBU Loudness plug-in indicates the dynamic range - could you explain how "loudness range" numbers relate to older "dynamic range", thanks!

    Great articles by the way! ;)


    Thanks for the kind words, mgaw :D:

    I reached out to sleepless with your question since I, myself, am not sure of the answer. We'll try and get you an answer ASAP.

    In the meantime, see you around on the forums!
  • sleepless 48 posts
    sleepless
    Author
    Posted on 09/04/2015 at 01:50:44
    Hello CaliMoose (thanks for the alert :) and hello mgaw,

    The program I use is AudioHiJack 3.

    Answering to your second question would be too long for a simple post in this forum.
    But I'll suggest you to have a look on the different papers linked at the end of the article, starting with TC's and Earl Vickers's.

    Thanks for your nice comment :)
  • hybridstudios 1 post
    hybridstudios
    New AFfiliate
    Posted on 09/06/2017 at 15:27:18
    Super helpful article, would be nice to see an update talking about streaming services and loudness normalization, but thanks for all the tutorials!

    Would love to get together if you're in or ever in the So Cal Area!
    -Hybrid Studios
    https://www.hybridstudiosca.com/mastering/ to see our space, would love to hear your thoughts!
