Headphone mix for the singer - Part 2

The ultimate guide to audio recording - Part 97

Last week I mentioned the preposterous idea of using a speaker instead of headphones to send the cue mix to the singer. This obviously entails the mic picking up a lot of bleed, however as I implied back then, you can minimize this horrible crosstalk to make it acceptable. Lets see how...!

View other articles in this series...

Prestige

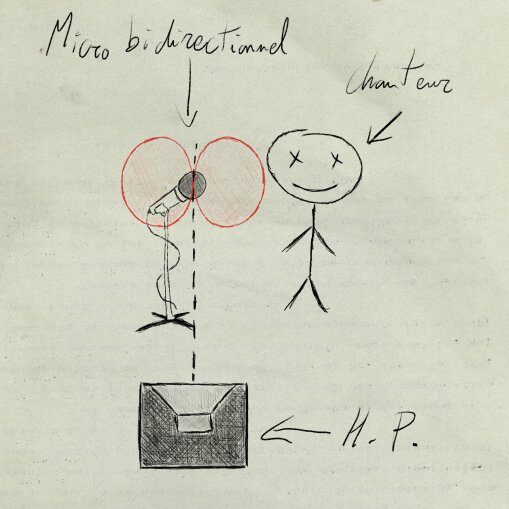

Those of you who have been following this series probably recall the best way to minimize the dreadful impact of crosstalk, which I discussed about 10 months ago: you only have to use the directivity of mics to your advantage. In fact, if you place the speaker at the “blind spot” of the mic, in other words at the angle where the mic’s capsule rejects more sound, crosstalk will decrease a lot. If you were to take a figure-8 mic, for instance, your setup should look like this:

Bi

I hope that despite the poor quality of my drawing — I’m no designer you know! — and it being in French, you can understand the way you should proceed. Judge the results for yourself:

01_Vox_8_DiaphMax
00:0000:22
  • 01_Vox_8_DiaphMax00:22
  • 02_Vox_8_DiaphMin00:22

On the first clip I used an AKG C414 in figure-8 mode with the low-cut filter set at 75 Hz and placed in front of the monitor speaker, which is the worse situation. On the second clip, the speaker is set right at the rejection axis as shown in the drawing above. It’s easily to realize that the crosstalk is much less, isn’t it? And you can do even better!

During this recording session of my own voice I also tracked the crosstalk on its own. What I mean by this is that I used the exact same setup as for the other take, in other words me standing in front of the mic with the C414 in figure-8 mode, the low-cut at 75 Hz and the speaker at the blind spot of the mic, but I wasn’t singing. This results in the following:

00:0000:00

It’s not very exciting by itself, I know… But if you invert the signal’s phase and mix it with the previous clip, you get this:

00:0000:00

Amazing, isn’t it? What’s left of the crosstalk is easily manageable. A simple gate during mixdown or a brief editing session ought to be enough. Isn’t that nice?

And you can also use this trick with a cardioid mic:

05_Vox_Cardio_DiaphMax
00:0000:22
  • 05_Vox_Cardio_DiaphMax00:22
  • 06_Vox_Cardio_DiaphMin00:22
  • 07_Vox_Cardio_DiaphMin_Only00:22
  • 08_Vox_Cardio_DiaphMin_Phase00:22

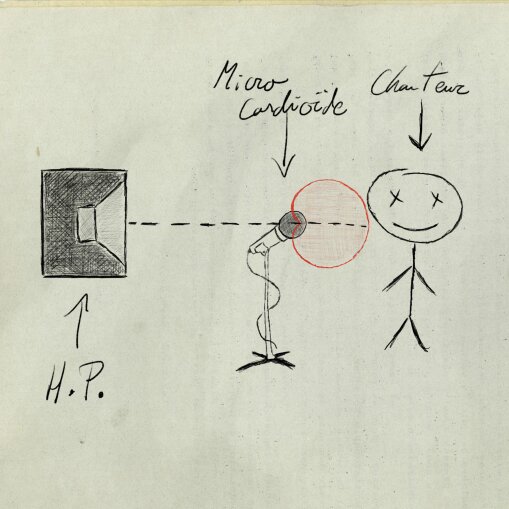

On the first clip I recorded my voice with the C414 (cardioid mode / low-cut filter at 75 Hz) and a speaker for the cue mix on one side. For the second one I placed the speaker like in the drawing above to reduce crosstalk:

Cardio

The third clip is the recording of the crosstalk like on the previous example. Finally, the last file is the mix of clips 06 and 07, with the phase of the latter inverted. Once again, the crosstalk remaining is so little, that you shouldn’t have any trouble dealing with it during mixdown.

As you can see, it is possible to record vocals without the use of headphones. But be careful, in order for this trick to work properly, you need to respect a couple of rules:

  • Never send the sound of the mic recording the vocals to the cue mix to avoid any feedback
  • The singer should move as little as possible during tracking, both of the vocal and crosstalk take If need be, mark the spot on the ground so he/she knows where to stand
  • You will need to re-record the crosstalk whenever you change anything in the cue mix, be it the mix itself, the level sent to the speaker, etc.Voilà, c’est tout pour aujourd’hui. J’espère que ce joli tour de passe-passe audio vous aura plu et surtout, que vous saurez le mettre à profit lors de vos prochaines sessions d’enregistrement de voix. Sur ce, rendez-vous la semaine prochaine pour de nouvelles aventures !

And that’s it for today. I hope this trick is helpful during your upcoming recording sessions. See you next time for some new adventures in recording!

Download the audio clips (in FLAC format)

← Previous article in this series:
Headphone mix for the singer - Part 1
Next article in this series:
Headphone mix for the singer - Part 3 →
  • Klaus Jürgens 1 post
    Klaus Jürgens
    New AFfiliate
    Posted on 10/20/2018 at 17:34:42
    To use a PA Monitor for vocal recording in the studio can be just right for the sound... I did it several times to enrich the signal, and for re-recording Vocals on life recordings, to get a similar sound like it was on stage. I wanted to get the same resonant sound like it is when the vocals are just before feedback, on a wooden stage. But i used Shure SM 58 and Beta 58 instead of Condensers. Will try out your technique anyway...
